Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020 141
Operator Interface Chapter 3

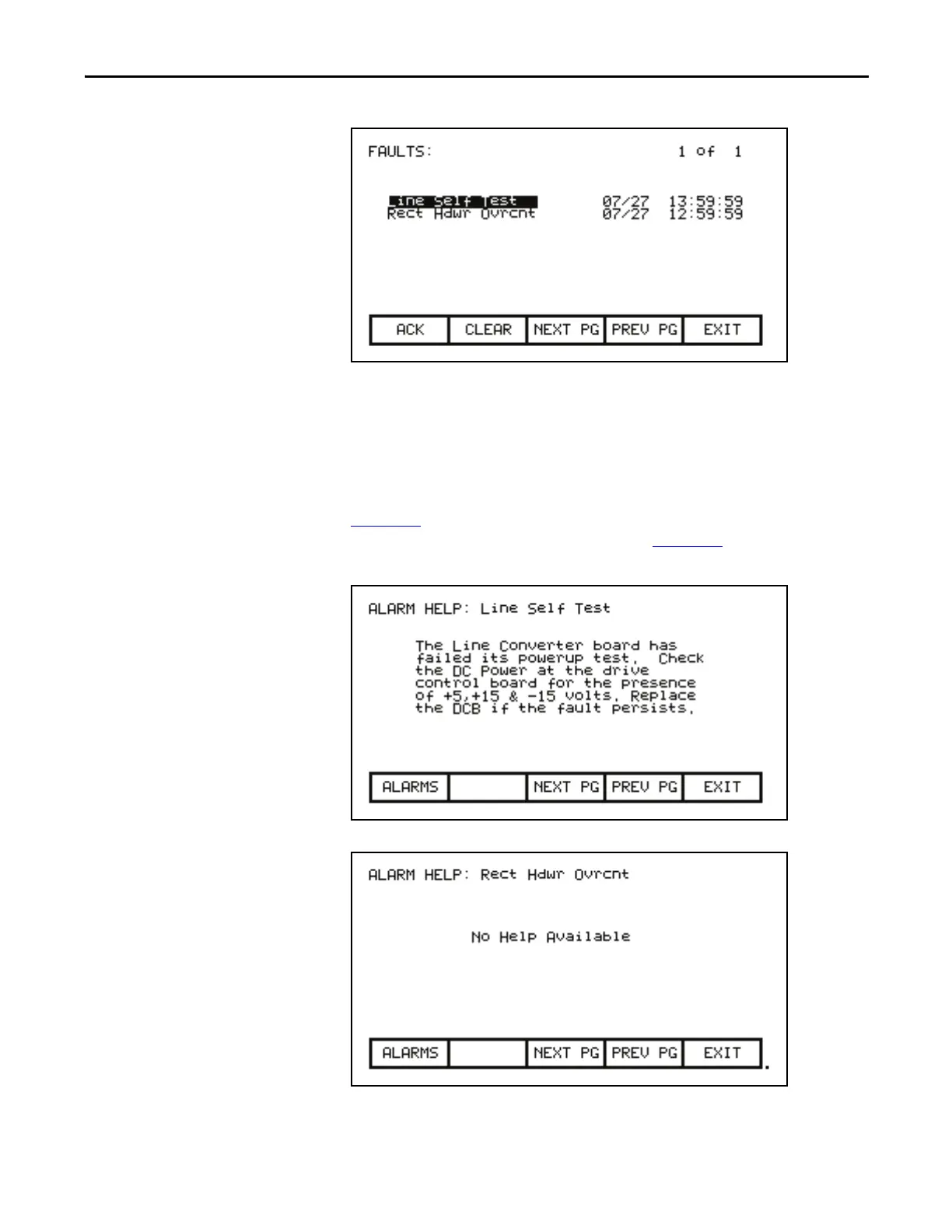

Figure 146 - Fault Queue
Help for Alarms
When viewing the fault or warning queue, help text may be associated with the
alarm entry. Use the up/down cursor keys to highlight the alarm in question and
press the [enter] key. An ALARM HELP screen, typical of that shown in
Figure 147
will be shown for that alarm. Not all alarms will have this additional
help text. For those alarms the screen shown in Figure 148
is displayed.
Figure 147 - Alarm Help
Figure 148 - No Alarm Help
