400 Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020
Chapter 5 Component Definition and Maintenance
Set up HyperTerminal connection
1. Run HyperTerminal program
2. At the ‘Connection Description’ window, enter any name for new
connection under the Name field as shown below and then click OK.

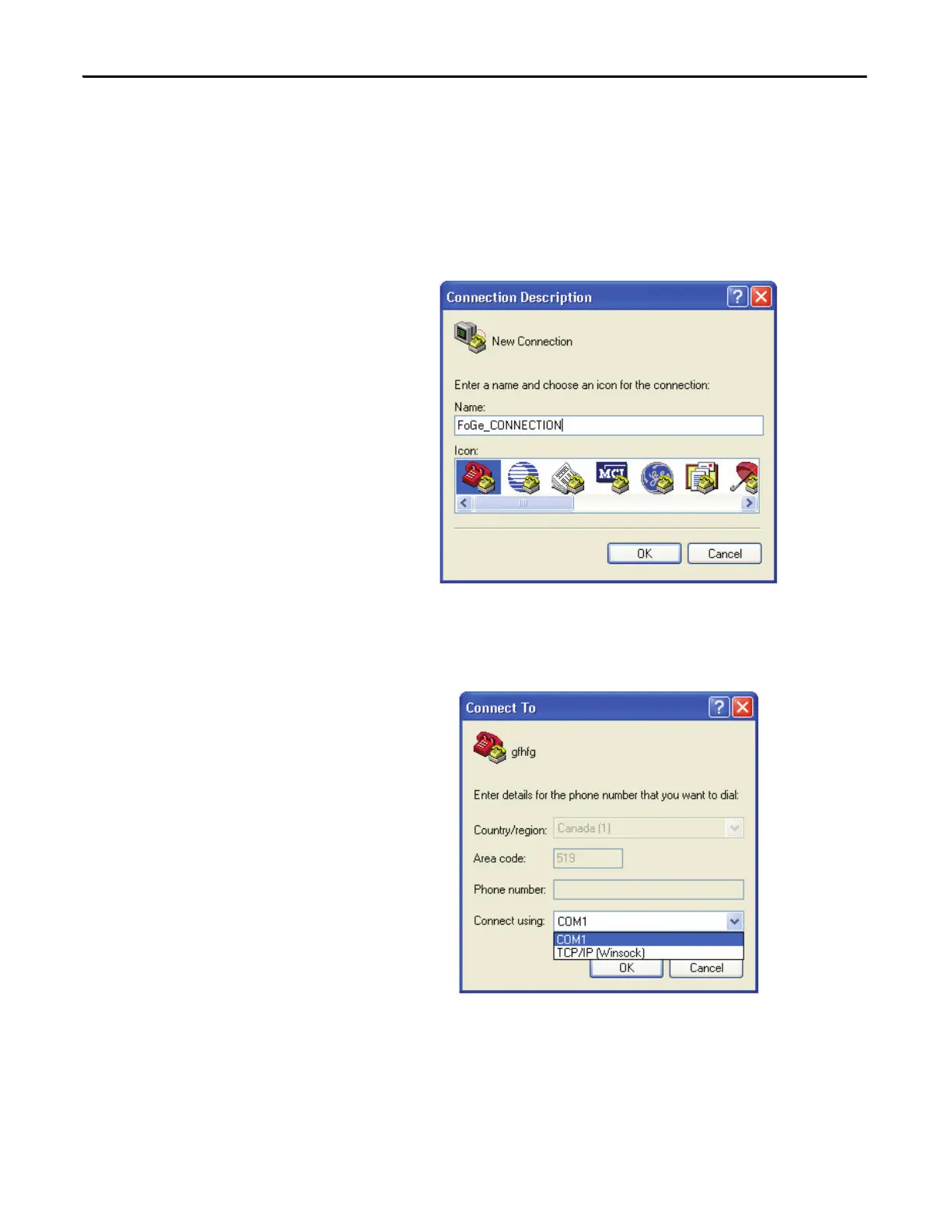

Figure 347 - Enter Name for New Connection
3. The ‘Connect to’ window will appear as shown below. Select COM1 from
the dropdown list next to ‘Connect using’ and then click OK.
Figure 348 - Connect to Window
