Commissioning Chapter 4
The PV550 display screens are given as an example. The actual screen data
may differ.

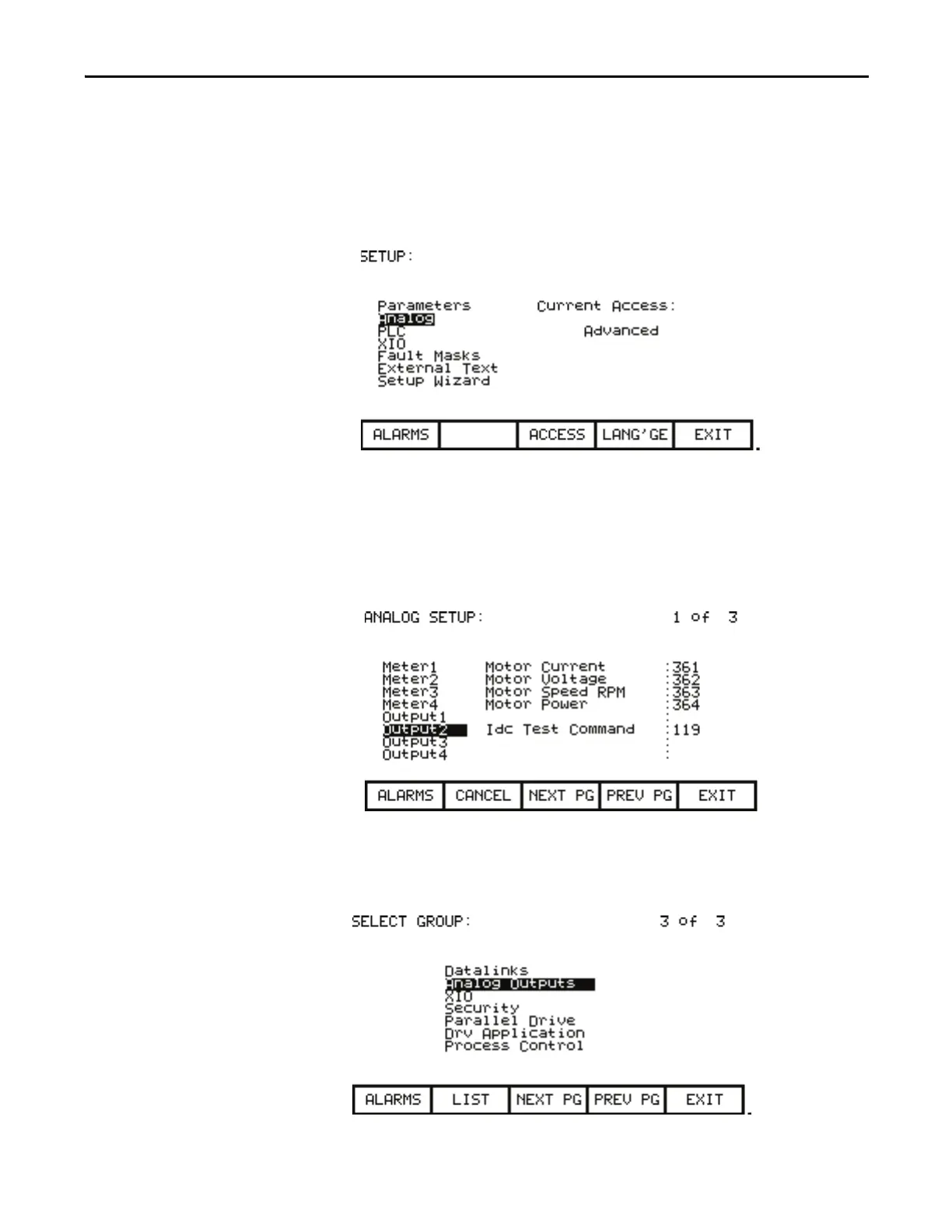

To assign a parameter to an analog output, ensure that you are at least in
Advanced access. From the main screen, press SETUP [F8], and use the down
arrow to highlight Analog. Press Enter.
Use the down arrow to highlight the output you wish to assign. When you press
Enter, you will be brought to the entire list of parameters in the Select Group
screen. Use the arrow and enter keys to find the parameter you wish to assign, and
press Enter. This will take you back to the Analog screen and you will see the new
parameter name beside your selected output.
Press EXIT [F10], go up to Parameters. Press Enter, and then scroll down the list
until you reach Analog Outputs. Press Enter, and you will see the same list of
available ports and the assigned parameter number, but not the name.
To Next Page
