260 Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020
Chapter 4 Commissioning

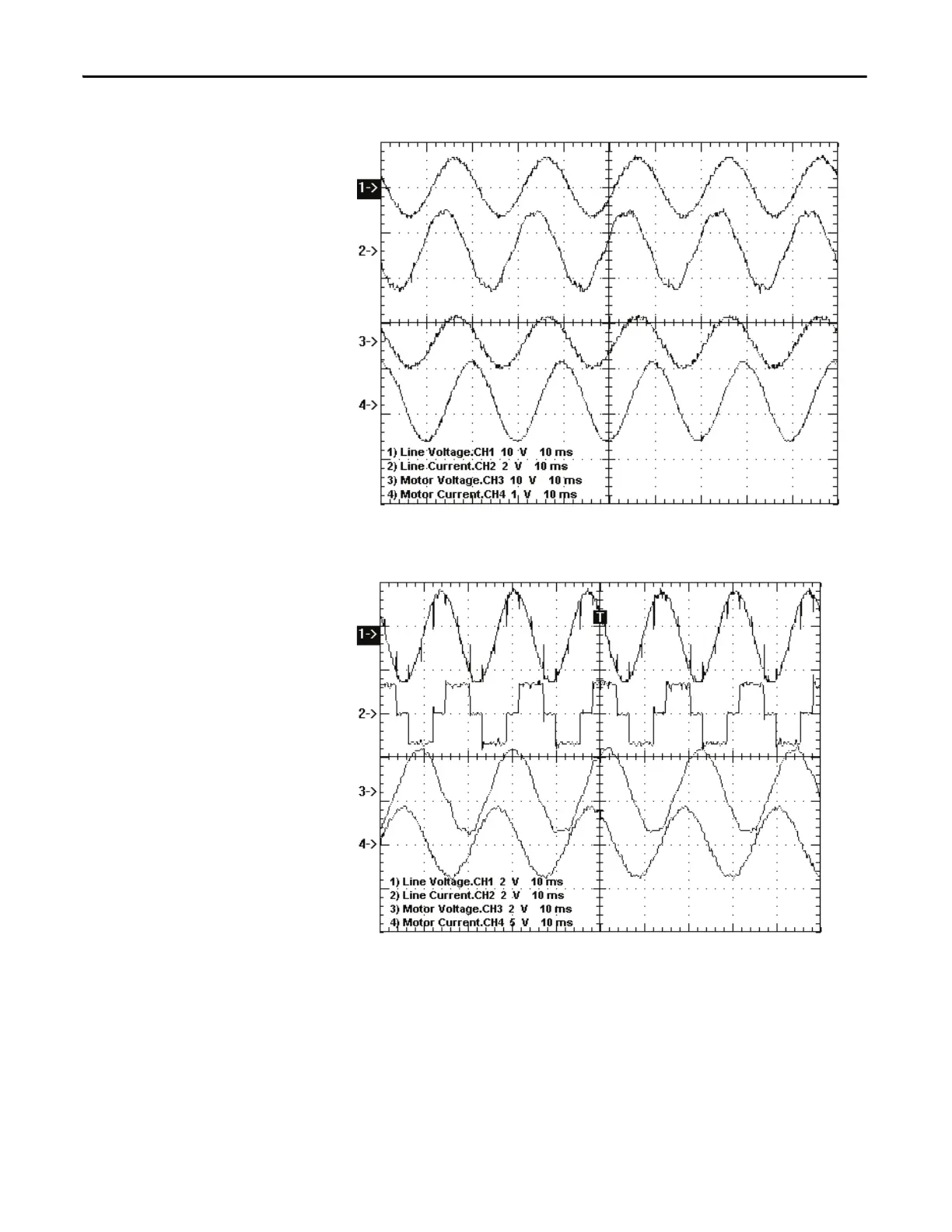

Figure 216 - Sample Waveforms:
Sample waveforms recorded on a AFE Drive running under full load condition
(Ch1: Line Voltage, Ch2 - Line Current, Ch3 - Motor Voltage, Ch4 - Motor Current)
Sample waveforms recorded on 18 Pulse Drive running at 75% load
(Ch1: Line Voltage, Ch2 - Line Current, Ch3 - Motor Voltage, Ch4 - Motor Current)
