278 Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020
Chapter 5 Component Definition and Maintenance

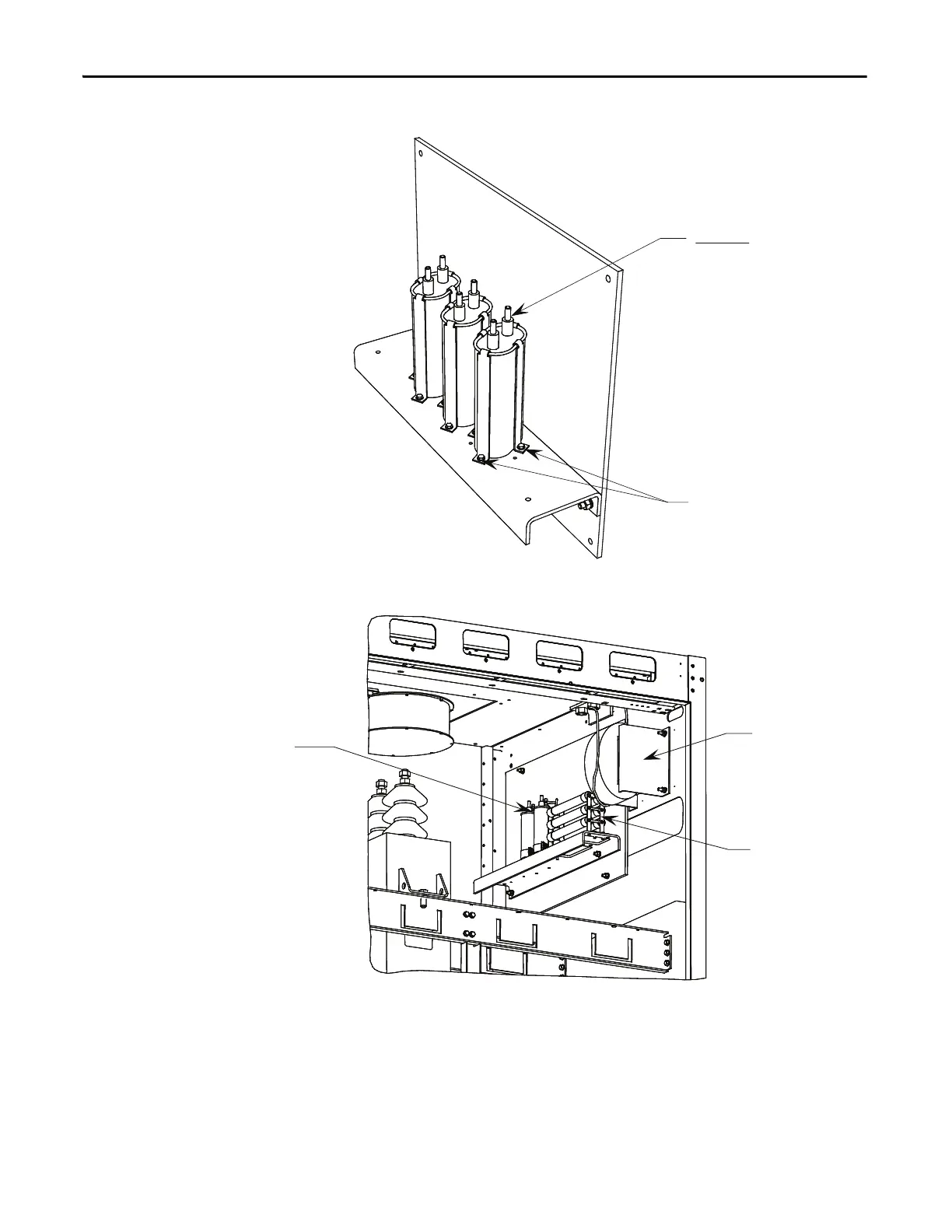

Figure 229 - Capacitor in Grounding Network
Figure 230 - Location of Ground Filter in “C” Frame Drive
Loosen screws to release capacitor
Important !
Torque on capacitor terminals
3.4 N-m (30 lb-in)
Capacitors
Reactor Transformer
Resistor Bank
