Chapter 5 Component Definition and Maintenance

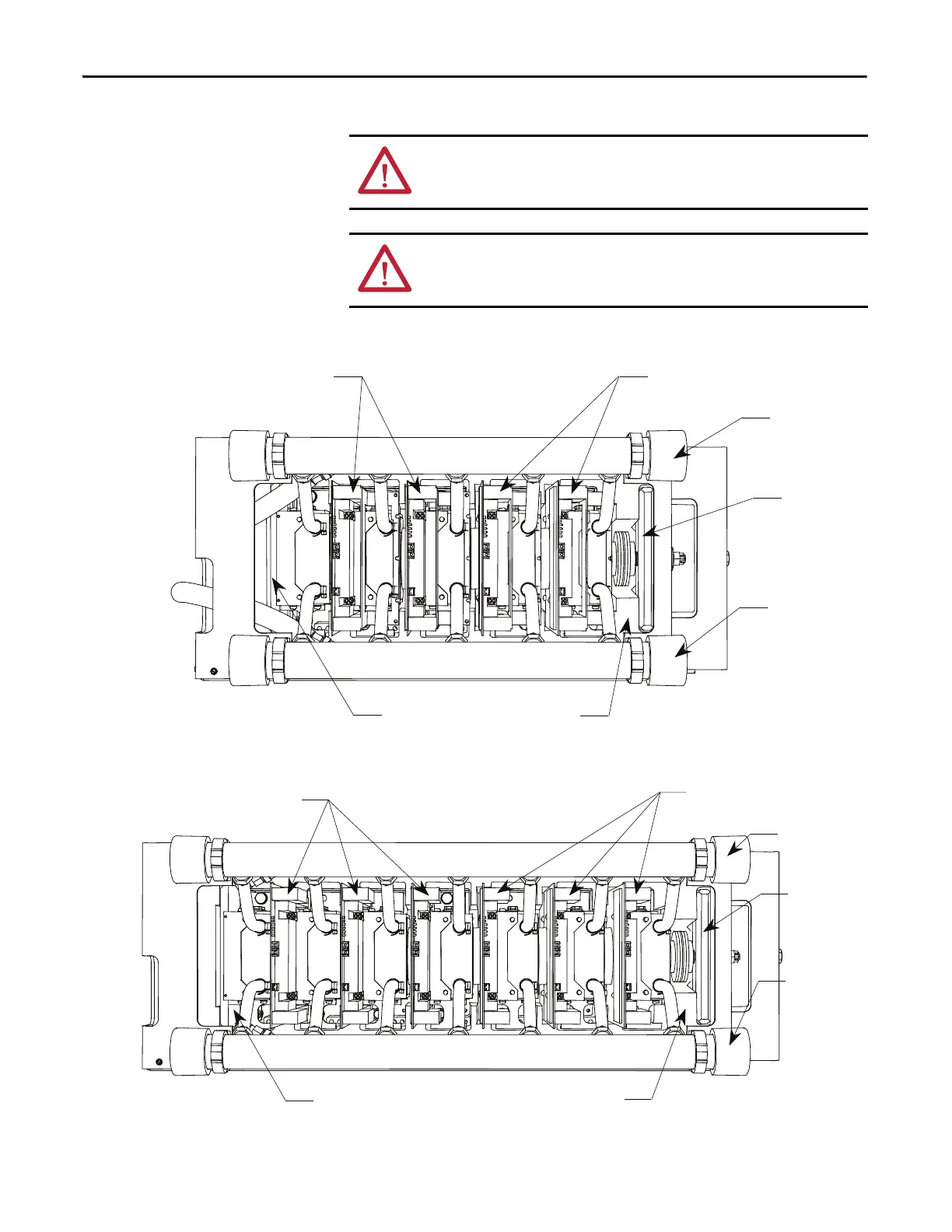

Figure 238 - 4-Device PowerCage
Figure 239 - 6-Device PowerCage
ATTENTION: The PowerCage can house either SCRs or Silicon Gate Commutated
Thyristors (SGCT). The SGCT circuit board is sensitive to static charges. It is
important that these boards should not be handled without proper grounding.
ATTENTION: Some circuit boards can be destroyed by static charges. Use of
damaged circuit boards may also damage related components. A grounding
wrist strap is recommended for handling sensitive circuit boards.
Matched Set 2 SGCTs
Module Housing
Outlet Manifold
Clamp Base
Matched Set 2 SGCTs
Clamp Head
Inlet Manifold
Matched Set 3 SGCTs
Module Housing
Outlet Manifold
Clamp Base
Matched Set 3 SGCTs
Clamp Head
Inlet Manifold
