Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020 43
Drive Installation Chapter 2

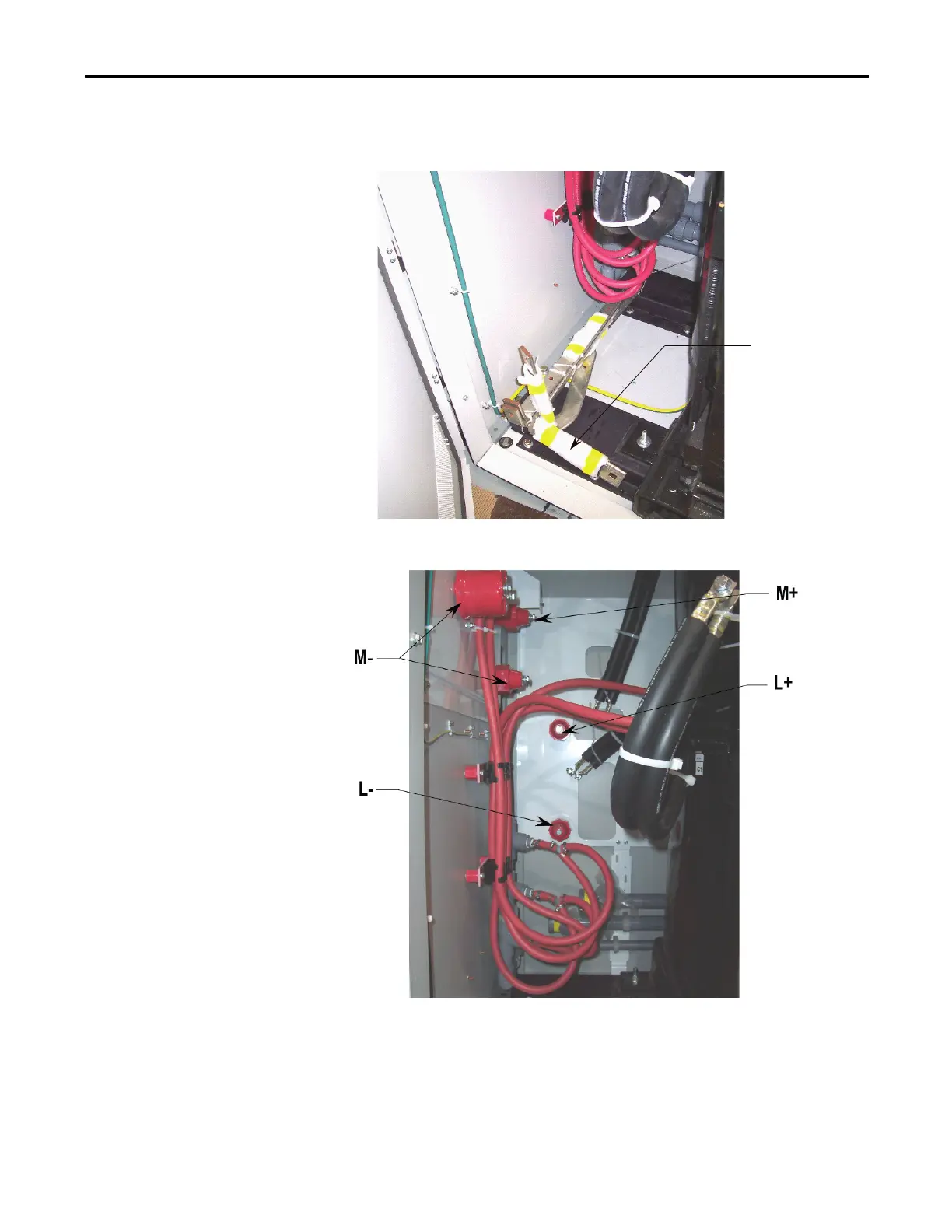

Figure 20 - DC Link Choke Cabinet
Power Bus (4) pieces; Ground bus (1) shipped disassembled
Figure 21 - DC Link Choke Cabinet before field power bus connections
MV Bus (4 pieces)
Ground Bus Link (1 piece)
Inside DC Link Choke Cabinet
