Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020 45
Drive Installation Chapter 2

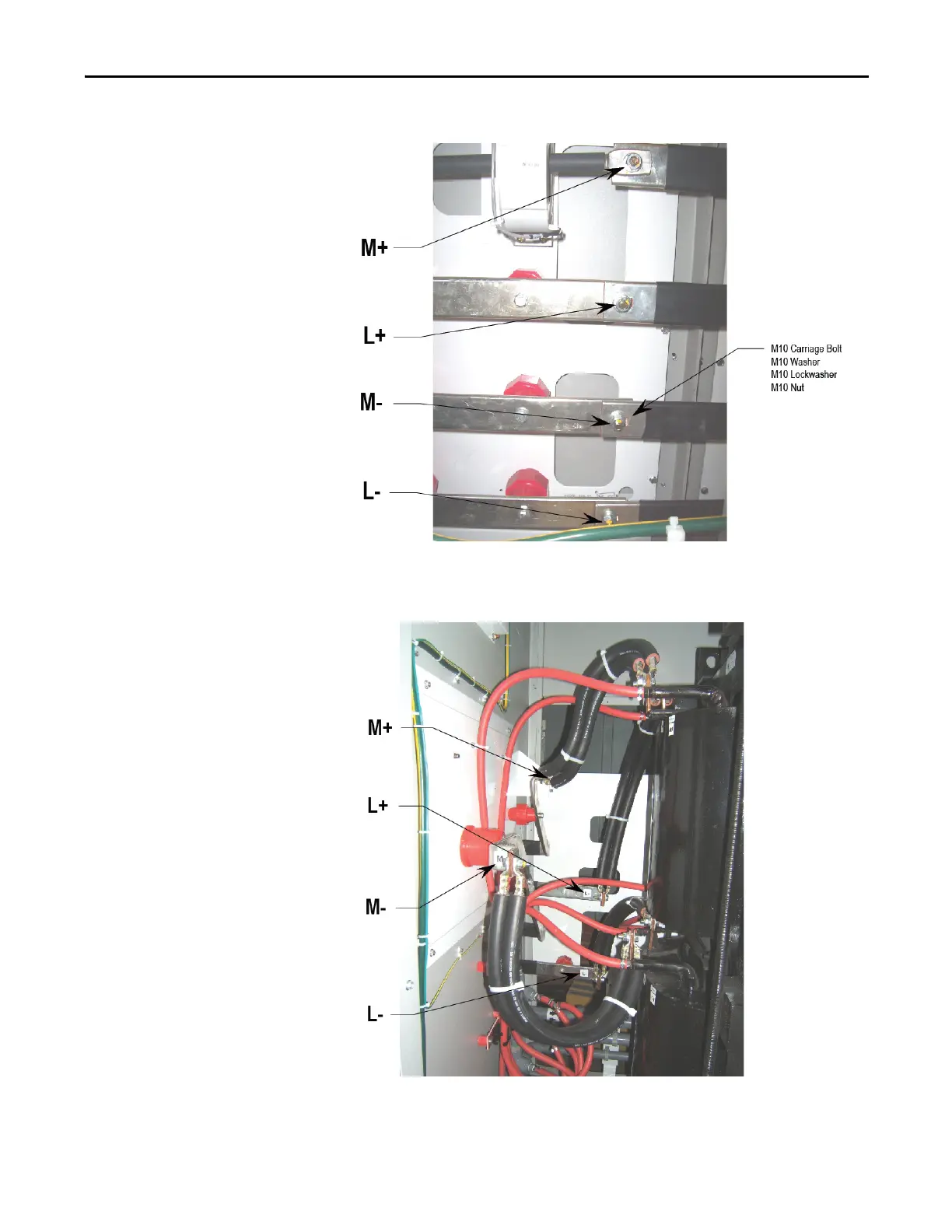

Figure 24 - Capacitor Cabinet
(Connect left side of Medium Voltage bus pieces with M10 hardware)
• Connect cables from DC Link Choke to MV Bus pieces using supplied
M12 hardware.
Figure 25 - DC Link Choke Cabinet after connection of cables from DC Link Choke to red insulators
• Connection points are labeled on bus and DC Link Choke. Connect
cables from labeled stabs M+, L+, L-, L+ on DC Link Choke to
corresponding labeled stabs M+, L+, M-, L+ on bus.
