82 Rockwell Automation Publication 7000L-UM301F-EN-P - March 2020
Chapter 2 Drive Installation

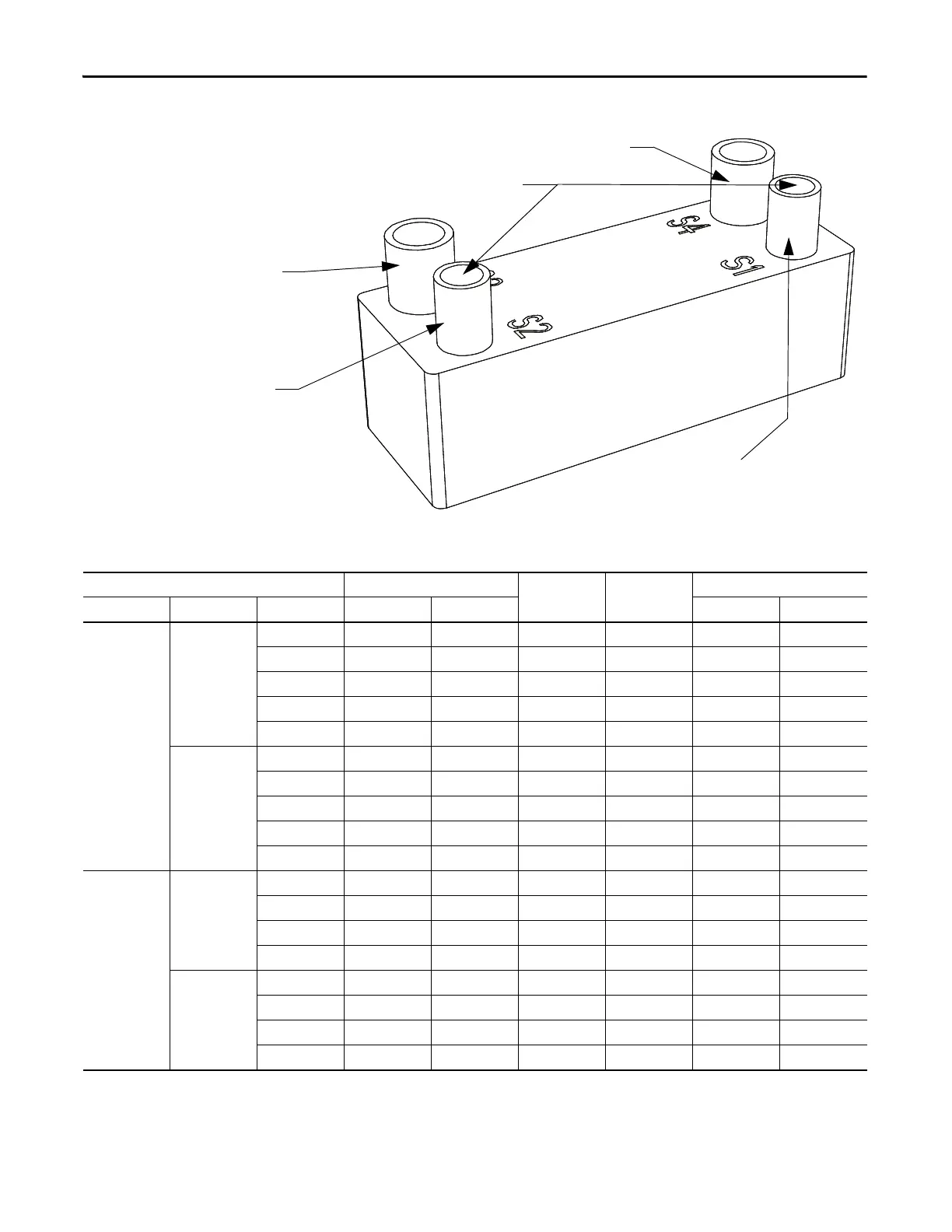

Figure 66 - Pipe Flange Detail
Table 5 - Customer Cooling Requirements for Liquid-to-Liquid Heat Exchangers
Process Water Inlet
Drive Coolant Outlet
1.25 in. or 2.0 in. NPTF
Female Pipe Threads
Process Water Outlet
Drive Coolant Inlet
Drive Min. Flow Rate Max. Pressure
(psig)
Pressure Drop
(kPa)
Temperature (°C)
Rectifier Voltage Amps US Gpm
(1)
L/m
(2)
Min. Max.
18 Pulse 4160 375 19.5 72 435 7 > 0 <32
430 21.5 80 435 8 > 0 <32
495 26.5 100 435 13 > 0 <32
575 29.0 109 435 15 > 0 <32
657 37.5 142 435 25 > 0 <32
6600 375 33.0 125 435 18 > 0 <32
430 44.5 167 435 34 > 0 <32
495 48.5 184 435 40 > 0 <32
575 54.5 206 435 43 > 0 <32
657 62.6 237 435 49 > 0 <32
AFE 4160 375 19.5 74 435 7 > 0 <32
430 24.0 90 435 10 > 0 <32
495 26.5 100 435 13 > 0 <32
575 33.0 125 435 19 > 0 <32
6600 375 37.0 139 435 24 > 0 <32
430 44.5 167 435 34 > 0 <32
495 48.5 184 435 40 > 0 <32
575 54.5 206 435 43 > 0 <32
(1) US Gpm = Gallons per minute (U.S.)
(2) L/m = Liters per minute
