Document: 553632
(ICSTT-RM448_EN_P) Issue: 08:
1-13
Part No: Digital Input Fuses T9901: No 396/TE5 50mA time lag fuse; UL 248-14, 125
V,T Leadfree; manufactured by Littlefuse.
Part No: Digital Output Fuses T9902: SMF Omni-Block, Surface Mount Fuse Block
154 010, with a 10A, 125V Fast Acting Fuse, Littlefuse.
WARNING
FUSE REMOVAL or REPLACEMENT
When the controller is installed in a Hazardous environment do not remove or
replace a fuse when energized.
Field Wiring Connections
Field Wiring ConnectionsField Wiring Connections
Field Wiring Connections

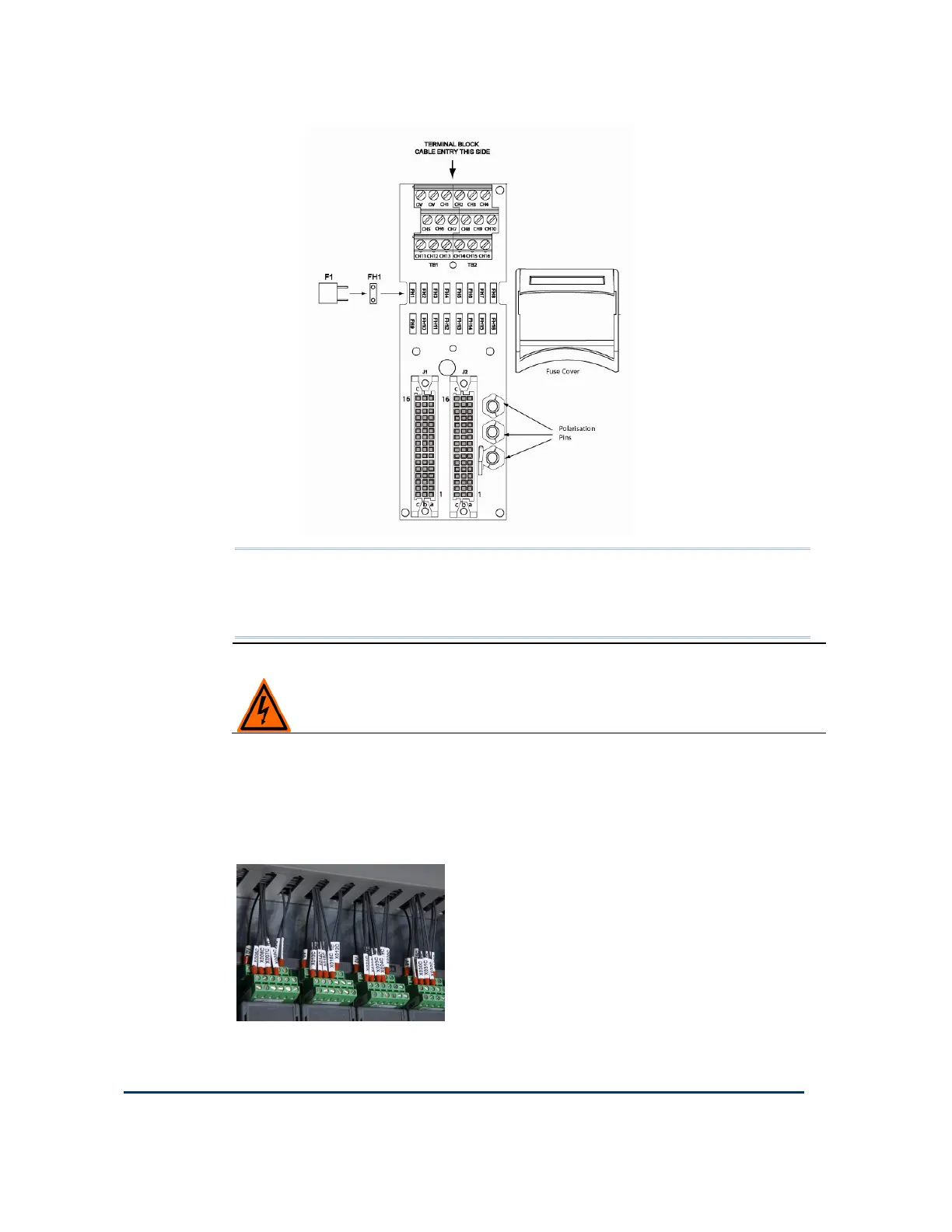

Field connections are made using industry-standard screw terminal blocks. Terminals
are readily accessible for future wiring modifications without needing to dismantle any
assemblies. This illustration shows field wiring to four simplex termination assemblies:
