Rockwell Automation ics triplex AADvance

Document: 553632
(ICSTT-RM448_EN_P) Issue: 08:
3-21

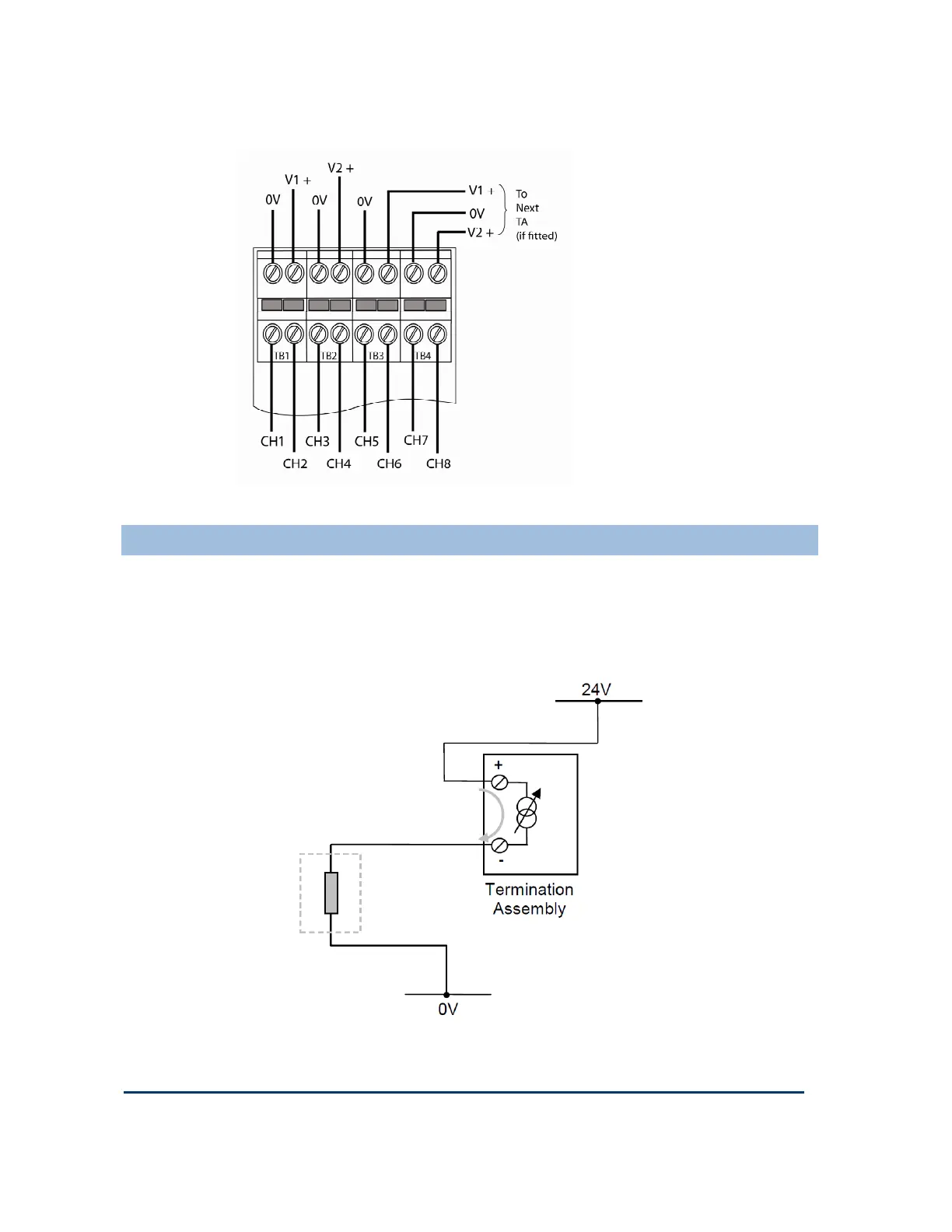

Connections to T9851/T9852 Digital Output TA
Connections to T9851/T9852 Digital Output TA Connections to T9851/T9852 Digital Output TA
Connections to T9851/T9852 Digital Output TA —
——
— 8 Channel Simplex/Dual
8 Channel Simplex/Dual8 Channel Simplex/Dual
8 Channel Simplex/Dual
 Apply a minimum tightening torque of 0.5 Nm (0.37 ft lb) to the terminal screws.
Recommended Circuit for Analogue Outputs
Recommended Circuit for Analogue OutputsRecommended Circuit for Analogue Outputs
Recommended Circuit for Analogue Outputs
These circuits are suitable for simplex and dual configurations of analogue output
modules. All channels are isolated from each other but may be bridged at the '+'
terminal if fed by a common system mounted supply.
System powered devices
System powered devicesSystem powered devices
System powered devices
