Removable media, such as USB storage devices and CDs, should be virus
checked before use within the system.

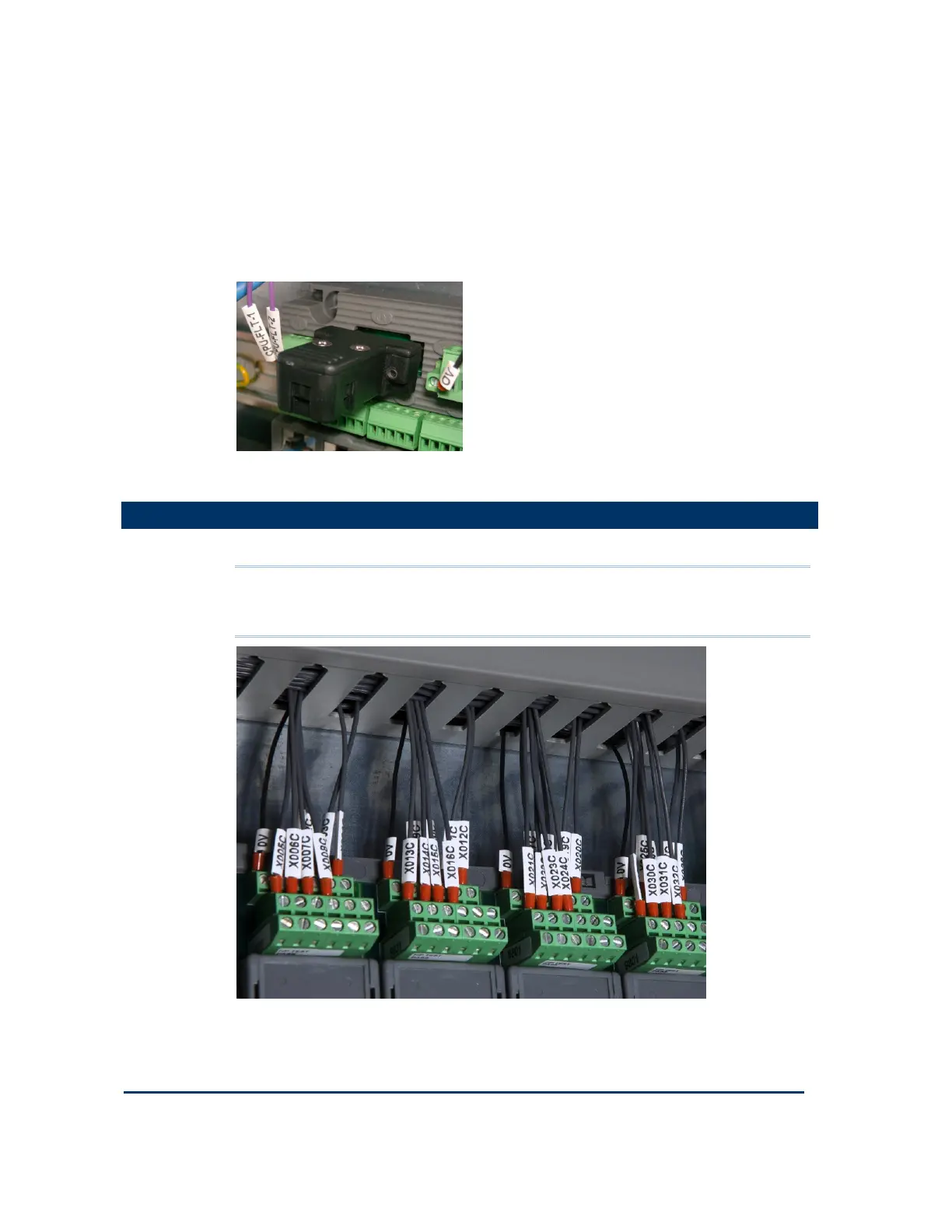

The program enable key (shown below) should be removed from the
processor base unit after application download (not applicable to a Euro
Controller). This provides read only access to controllers during normal
operation.
Connecting Field Wiring
Connecting Field WiringConnecting Field Wiring
Connecting Field Wiring
Connect the field wiring to the screw terminal blocks on the termination assemblies.
Note: Use conductor wire with a cross section of 16AWG . The stripping length
should be 6mm (1/4 in) and a conductor temperature rating of 85ºC. Apply a
tightening torque of 0.5 Nm (0.37 ft lb) to the terminal screws.
