Document: 553632
(ICSTT-RM448_EN_P) Issue: 08:
1-15
The processor base unit provides the electrical connections between the T9110
processor modules, and the rest of the controller modules and has the following
connections:
Command and response bus connections for up to 48 I/O modules
Inter-processor links
Two Ethernet 100 BaseT connectors per processor
Two serial data connections per processor
Dual +24v System power
Ground stud
Program enable key
The processor base unit holds the IP address of each processor module separately in a
BUSP (U1 shown in above illustration) which is installed during manufacture. This
means that you can remove a defective processor module and install a new one
without needing to set up the IP address of the new module.

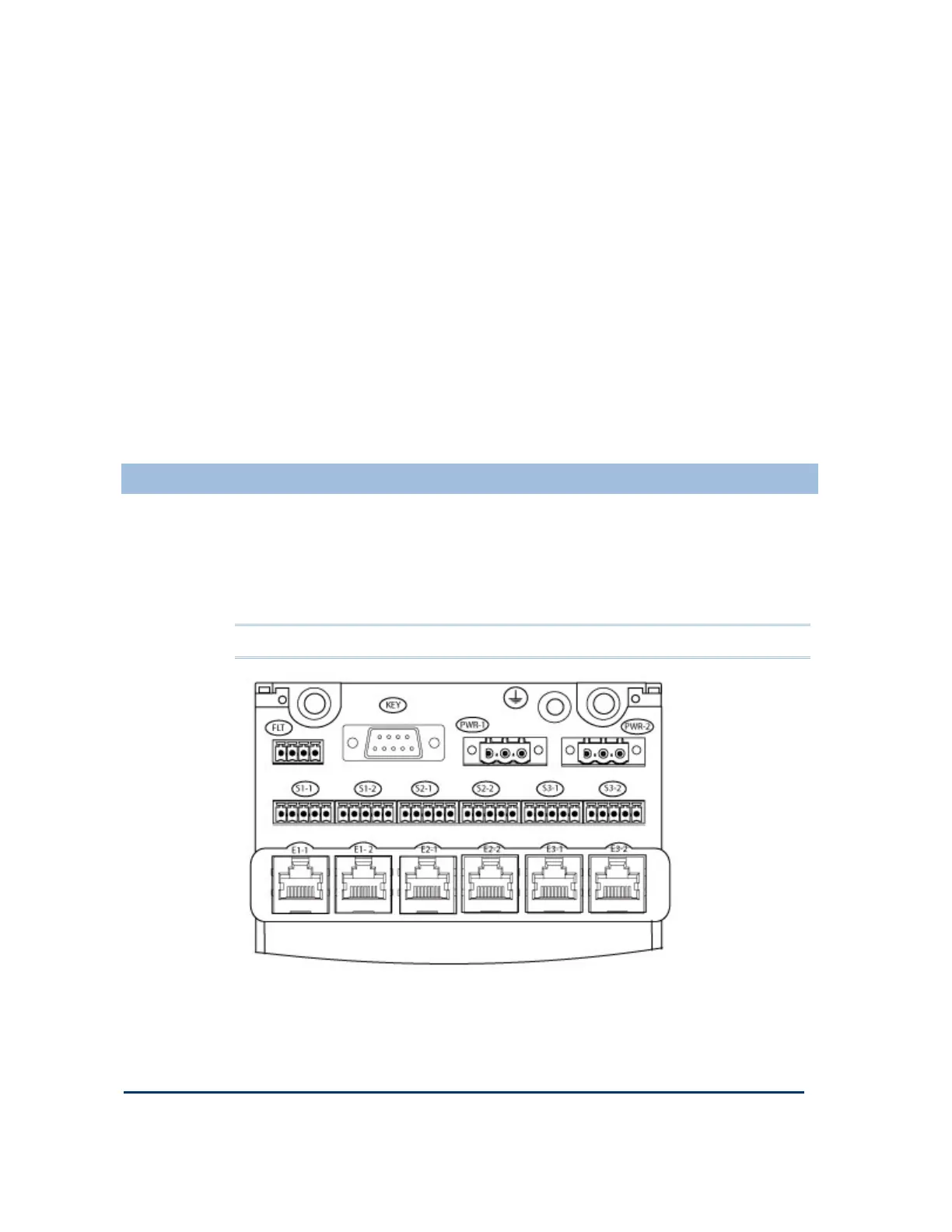

Ethernet, Serial Data and Power Connections
Ethernet, Serial Data and Power ConnectionsEthernet, Serial Data and Power Connections
Ethernet, Serial Data and Power Connections
The external connections for Earthing, Ethernet (E1-1 to E3-2), serial data (S1-1 to
S3-2) and the +24V dc Redundant powers supplies (PWR-1 and PWR-2) are all
located on the T9100 Processor Base Unit. There are two serial data and two
Ethernet connectors for each processor module. two connectors for the dual
redundant power supplies, a stud for the Earth and a connector for the security device
(KEY) also known as the Program Enable Key.
Note: The FLT connector is not used.
