DIN Rails Fitting
ails Fittingails Fitting
ails Fitting
You can install the AADvance controller onto a pair of parallel DIN rails. The DIN
rails must be TS35 rail, which is 35mm × 7.5mm standard symmetric rail.
Alternatively, you can install the controller onto a flat panel. The fixing dimensions are
given below for both methods.

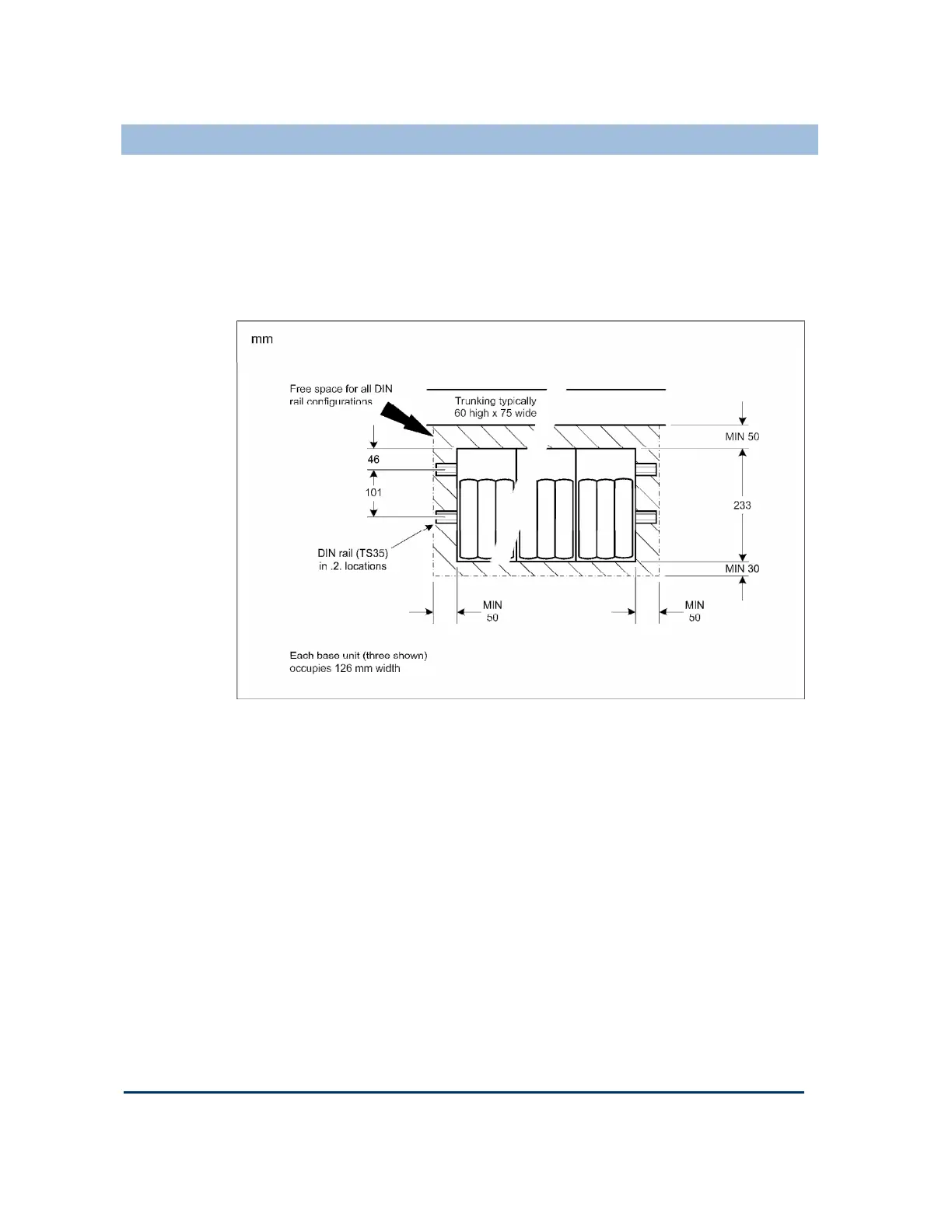

A typical DIN rail arrangement is shown below:
An application using DIN rails must provide the DIN rail free space to the left to fit an
end stop on the upper DIN rail.
