3-32
Document: 553632
(ICSTT-RM448_EN_P) Issue: 08:
System Build Manual (AADvance Controller)
Fault Reporting Reference Information
Fault Reporting Reference InformationFault Reporting Reference Information
Fault Reporting Reference Information
Each module has a set of front panel status indicators. The purpose and meaning of
these indicators relevant to each module is as follows:

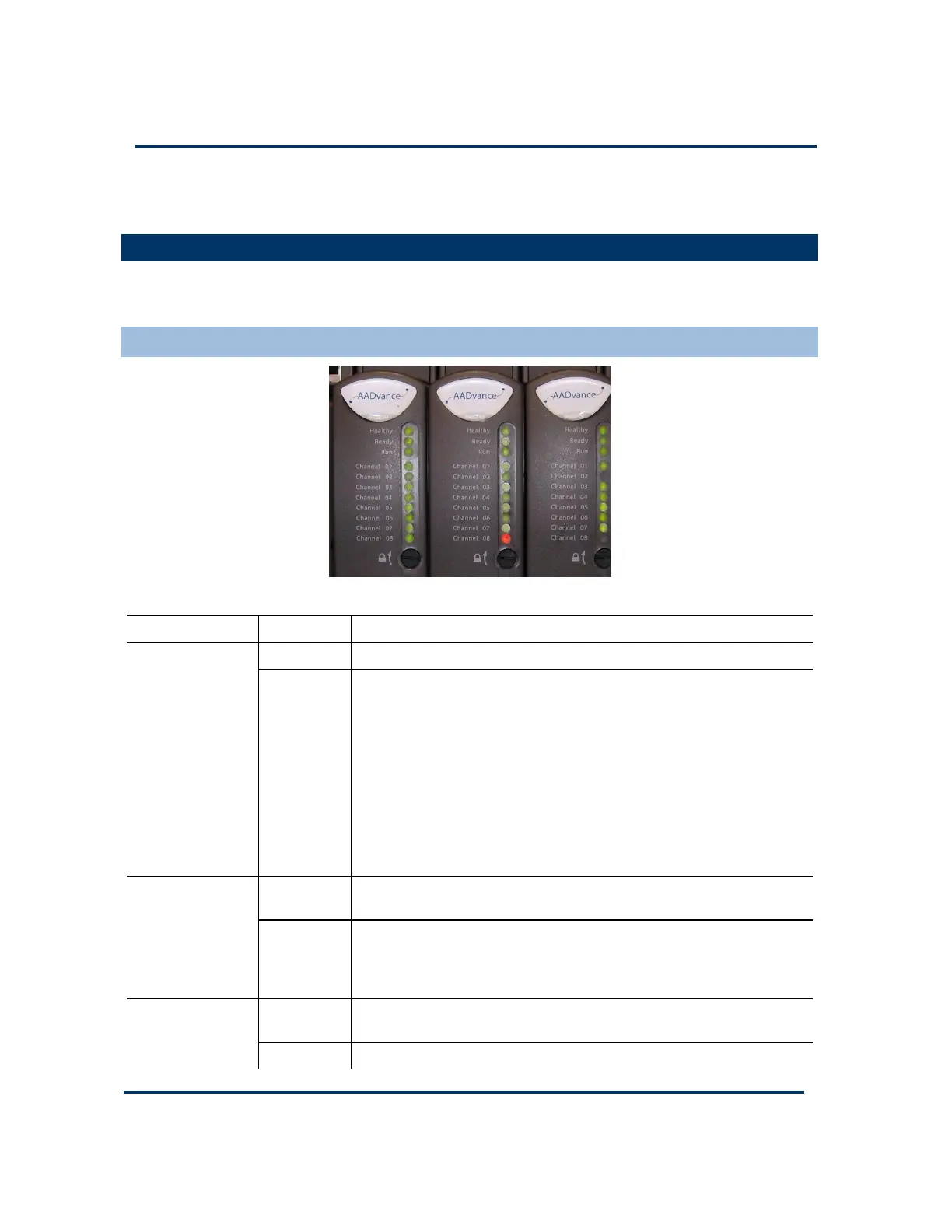

Status Indicators on the T94xx Series Input and Output Module
Status Indicators on the T94xx Series Input and Output ModuleStatus Indicators on the T94xx Series Input and Output Module
Status Indicators on the T94xx Series Input and Output Module
Table 6:
Table 6: Table 6:
Table 6: Status Indicators on the 94xx Series Input and Output Module
Status Indicators on the 94xx Series Input and Output ModuleStatus Indicators on the 94xx Series Input and Output Module
Status Indicators on the 94xx Series Input and Output Module
Indicator Status Description
Healthy
Provides an indication of the general status of the module
OFF No power
GREEN No module faults present
RED One or more module faults are present
Note.
1. The Healthy indicator may turn RED immediately upon application of
power to the module, before then turning GREEN
2. If Healthy is GREEN and the Ready and Run are RED then the
module is said to be in its "shutdown state" refer to the Troubleshooting
Manual - Chap 3 for more information on the shutdown state.
Ready
Provides an indication of the module's ability to report channel values to a
running application
OFF No power or unlocked
GREEN Locked and ready to report channel values
RED Locked but not ready to report channel values
Run
Provides an indication that the module is reporting channel values to a
running application
OFF No power or unlocked
