3-24
Document: 553632
(ICSTT-RM448_EN_P) Issue: 08:
System Build Manual (AADvance Controller)
Insta
InstaInsta
Install Modules
ll Modulesll Modules
ll Modules
The modules of the AADvance controller mount onto the base units. The processor
module(s) mount onto the T9100 processor base unit, while the various I/O modules
mount onto the T9300 I/O base unit and associated termination assemblies.
The product range includes two sizes of blanking covers to conceal unused module
positions. The shorter cover is for a spare position on the processor base unit, while
the taller cover is for a spare position on an I/O base unit.
Install a T9110 Processor Module
Install a T9110 Processor ModuleInstall a T9110 Processor Module
Install a T9110 Processor Module
Note: All new processor modules are delivered with the latest firmware and a base
level Recovery Mode firmware build. You can enter the Recovery Mode by pressing
the Fault Reset button immediately after the module has booted up.
Inspect the module:
Before inserting a new I/O module, inspect it for damage.
The identification labels on the sides of the I/O module will be hidden once the
module is installed. Therefore before installation record the location of the module
and the details shown on the label.
If you are installing more than one processor module make sure they all have the
same firmware build.
To install each T9110 processor module, do the following:

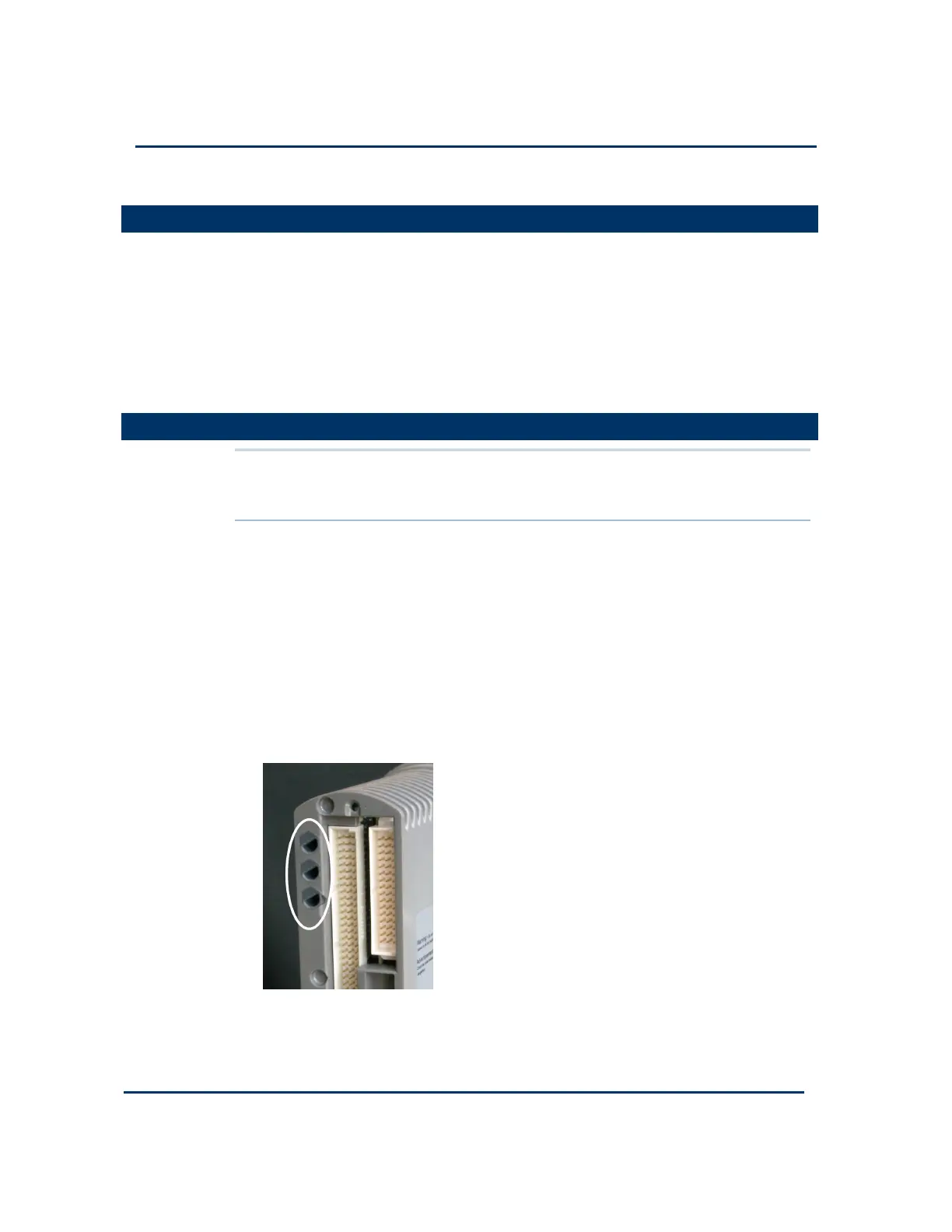

1) Examine the coding pegs on the T9100 processor base unit and verify they
complement the sockets on the rear of the processor module:
2) Place the processor module on to the dowel pins on the processor base unit.
Make sure the slot on the head of the module clamp screw is vertical and then
push the module home until the connectors are fully mated.
