3-16 Document: 553632
(ICSTT-RM448_EN_P) Issue: 08:
System Build Manual (AADvance Controller)

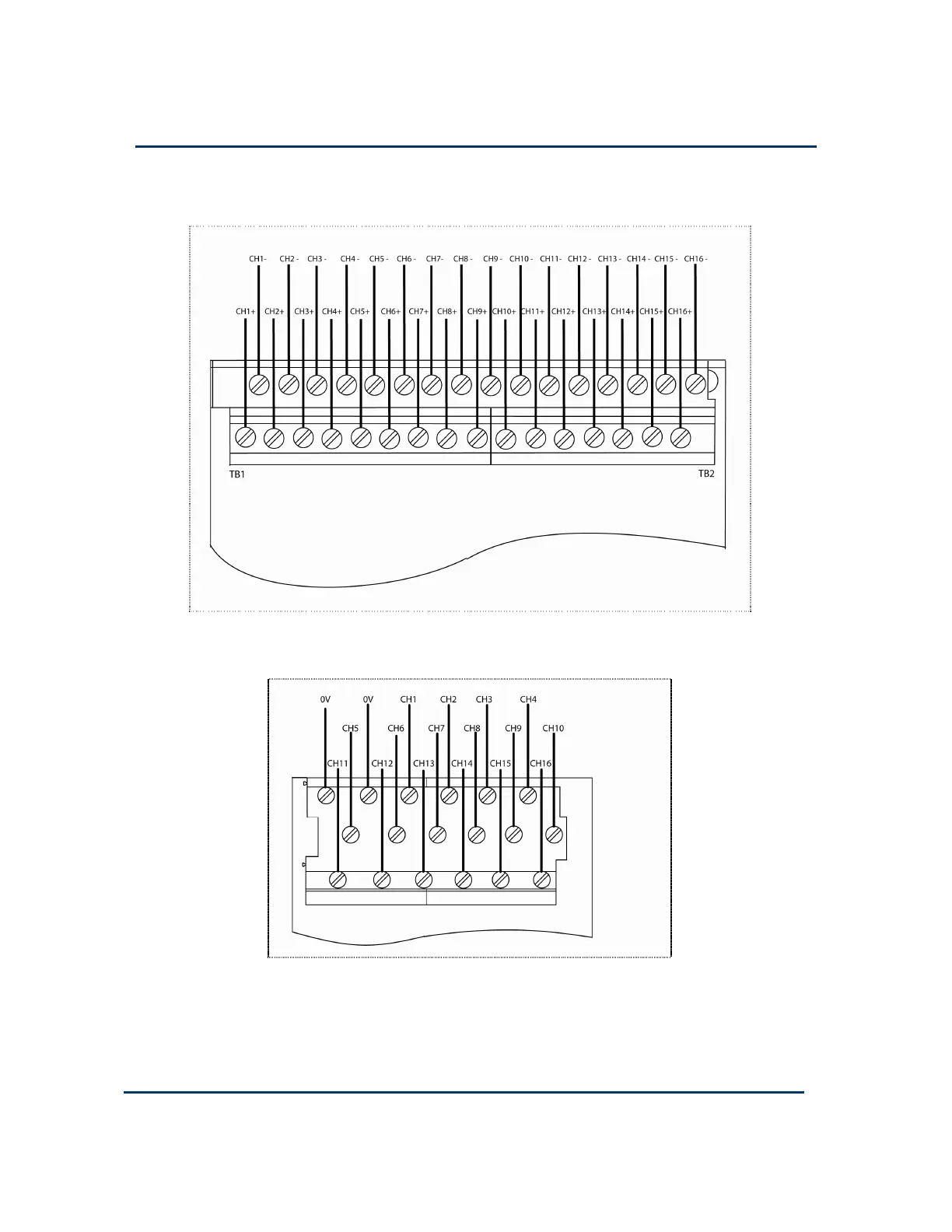

Connections to 9802/9803 Isolated Digital Input TA
Connections to 9802/9803 Isolated Digital Input TA Connections to 9802/9803 Isolated Digital Input TA
Connections to 9802/9803 Isolated Digital Input TA —
——
— 16 Channel Dual/TMR
16 Channel Dual/TMR16 Channel Dual/TMR
16 Channel Dual/TMR
 Apply a minimum tightening torque of 0.5 Nm (0.37 ft lb) to the terminal screws.
Connections to 9801 Non
Connections to 9801 NonConnections to 9801 Non
Connections to 9801 Non-
--
-isolated Digital Input TA
isolated Digital Input TA isolated Digital Input TA
isolated Digital Input TA —
——
— 16 Channel Simplex
16 Channel Simplex16 Channel Simplex
16 Channel Simplex
 Apply a minimum tightening torque of 0.5 Nm (0.37 ft lb) to the terminal screws.
