PowerFlex Digital DC Drive User Manual - Publication 20P-UM001C-EN-P - July 2008
A-12 Supplemental Drive Information
Table A.G Recommended Field Circuit Fuses - 230V AC Input Frame C (Regenerative
and Non-Regenerative Drives)
Table A.H Recommended Field Circuit Fuses -460V AC Input Frame C (Regenerative
and Non-Regenerative Drives)

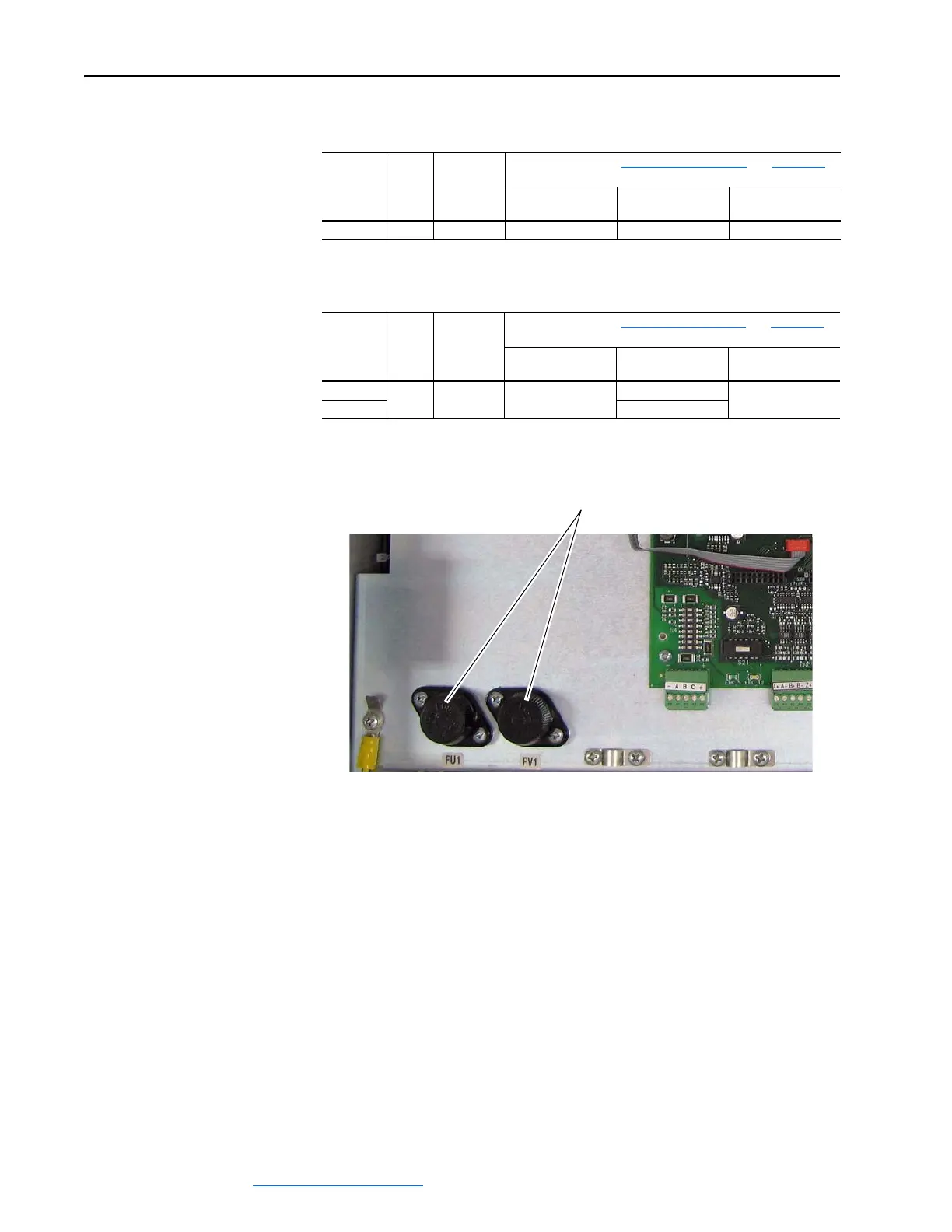

Figure A.7 Frame C Field Circuit Fuse Location
Drive
Current
Rating
Code
Field
Amps Type
Fuse Code FS3 (See Figure A.6 on page A-11 and Figure A.7
below for location)
Bussmann
Ferraz Shawmut
(Gould Shawmut) SIBA
521 20 10 x 38 mm FWC-25A10F A60Q25-2 60 033 05.25
Drive
Current
Rating
Code
Field
Amps Type
Fuse Code FS3 (See Figure A.6 on page A-11
and Figure A.7
below for location)
Bussmann
Ferraz Shawmut
(Gould Shawmut) SIBA
495 20 10 x 38 mm FWC-25A10F A60Q25-2 60 033 05.25
667 A60Q25-8
Field circuit fuses are located on the Control EMI
shield, which holds the Control board.
Note: Drive shown with front covers removed.
