6 Functions
6.1 Video Loop
Please be noted that HDCP1.4 is NOT supported on HDMI Loop, but only HDMI In.
Please use ether DVI In-Loop or HDMI In-Loop.

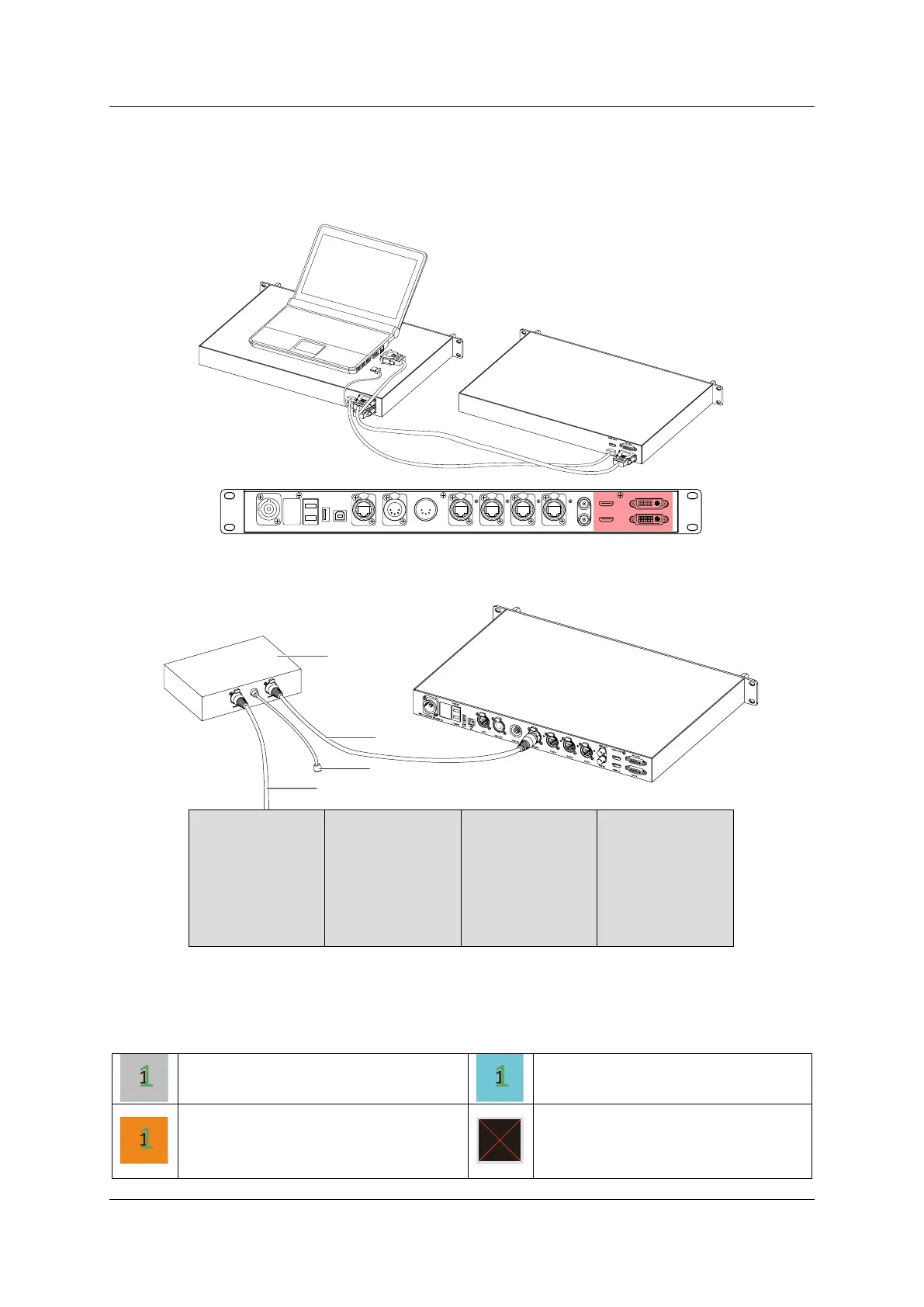

Figure 6-1. HD102 video loop
6.2 Multi-function
Figure 6-2. HD102 multi-function
6.3 Tile Status in EVISION
Table 6-1. Tile status
Inactive.
Selected. Individual tile positioning
will be enabled.
Active, configured. The physical tiles will
receive corresponding config data when
pressing Preview or Save.
Empty (tiles). For special usage like
irregular shape LED screen.
HDM I IN
US B
OUT
PO RT1
P ORT2
PORT3
PO RT4
INPUT 100-240V A C 50/60 Hz
DVI IN
DVI LOOPHDMI LOOP
RE F IN
REF OUT
DMX I N
DMX O UT
NE T
US B
IN
FIB ER2
FIB ER1
Data Ca ble
Multi-function Box
Lig ht S ensor
Da ta Cable
LED Wall
