9 Appendix
9.1 Accessories for HD102
9.1.1 Fiber Optic Transceiver Modules
9.1.1.1 Device Picture

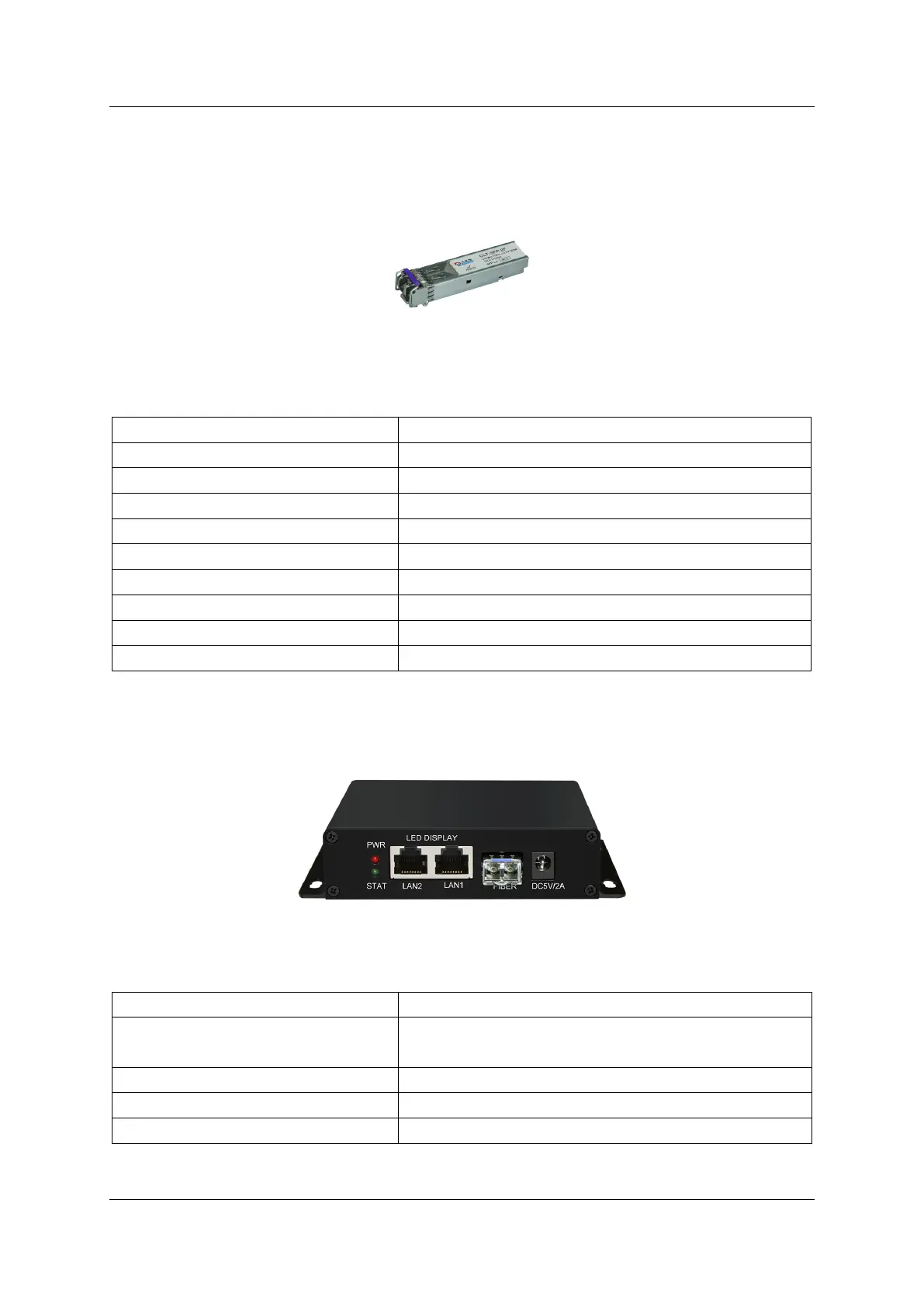

Figure 9-1. Fiber optic transceiver module picture
9.1.1.2 Specification
Table 9-1. Specification of CLT-SFP-2F fiber optic transceiver module
Item Figure
Module CLT-SFP-2F
Storage Temperature -40~85°C
Operating Temperature 0~70°C
Voltage Supply 3.0~3.6V
Data Rate 2.5Gb/s
Mode Single-mode
Distributed Feedback Laser DFB-LD
Fiber Connector Duplex LC
Transmission Distance 5km
9.1.2 Fiber Converter
9.1.2.1 Device Picture
Figure 9-2. Fiber converter
Table 9-2. Table of the interfaces of H2F fiber converter
Item Figure
PWR & STAT Indicators
PWR light (RED) indicates power, blinking or on.
STAT light (Green) indicates working status.
LAN2 & LAN1 ports – LED DISPLAY Input/output ports, Gigabit Ethernet signals.
FIBER ports Input/output port, fiber optic signals.
DC5V2A port DC power supply
