6.16 Edge Correction
Edge calibration is a technology to change the brightness of the panel edge pixels, to smoothen the
transition of panels. Edge calibration data will NOT overwrite or damage the original calibration data in
the module or receiving cards.
Enable Edge Calibration and click Save Setting before going to EVISION Edge.
Click EVISION Edge to enter the edge correction function.

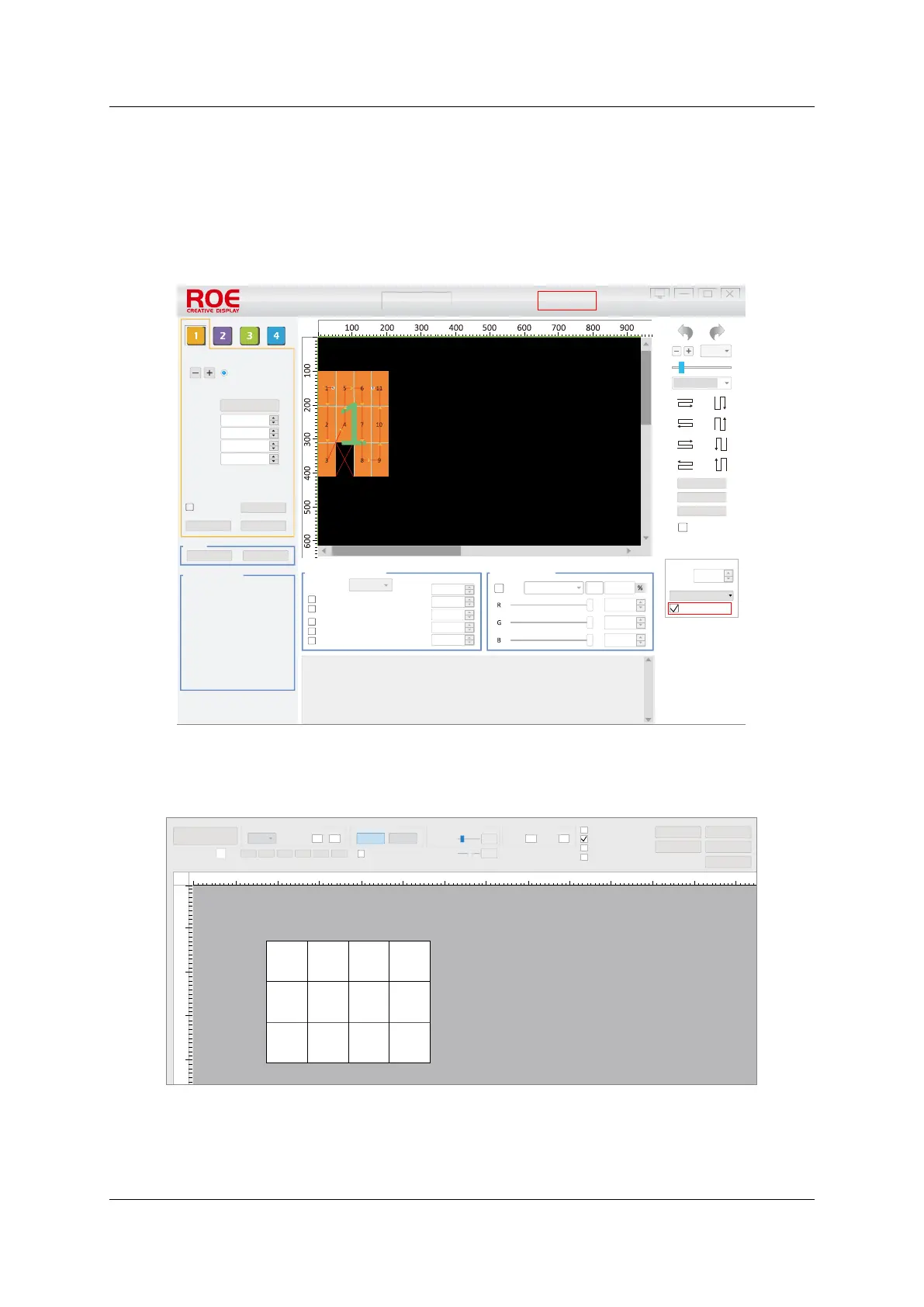

Figure 6-21. Edge correction
6.16.1 Read Screen Information
Click Read Screen Information to pull down LED screen setups from all 4 ports of all processors.
Figure 6-22. Edge correction main window
Hotkey List
Reset All Tile
Reset Mapping
Edge Calibration
Chroma Calibration
Import
Export
Mapping Save Setting
Preview
Indicator Off
168.00
7800.00
2400.00
3600.00
416
624
100.00~240.00
Current Level 2
Light output/contrast
Setting
Cabinet Information
Weight (Kg)
Power (W)
Voltage (V)
Width (cm)
Height (cm)
Pixel Width
Pixel Height
Save
100
100
624
2.4Gamma
Tile Address NONE
H Position 0
0
0
0
0
V Position
H
V
Card IndexBeacon (No Border)
V Size
Individual Type Positioning
11: Parameters configured successfully(network port 1)!
12: Parameters configured successfully(network port 1)!
13: Parameters configured successfully(network port 1)!
Beacon
OSD
Forbid Moving All Cards
Empty Card Edit Mode
Link
Hybird (port1)
100
100
200%
Sort Normal
Har dware Connection
LED Display Setup Testing and Adjusting Evision Edge
416
1
B5-MBI5051B.rvcb
Tile Type
H Count
V Count
H Position
V Position
H Size
4.0
4
0
0
3
Read Scr een Infor mation
Coefficient
1
Sending Card Offset Setti ng
-5% -2% -1% +1% +2% +5%
1 Offset X Y
Screen Displ ay
Normal Seam
Bri ghtness Adjust
Bri ghtness
Module Size (px)
11%
Scaling 100%
Gr adual Adjustment
Height
64Width 64
Reset Edge Data
Save
Hotkey Setting
Export
Import
200100 300 400 500 600 700 800 900 1000
1100 1200 1300
100 200 300 400
Show Module Edge
Select Recei ving Card
Enable Edge Calibr ation
Gamut Adj ustment
