6.16.2 Offset screens from different processors
LED screens from different processors will overlay with each other but be on different layers.
Adjust the Sending Card Offset Setting to offset screens so that multi-screens from different processors
can be adjusted at the same time.

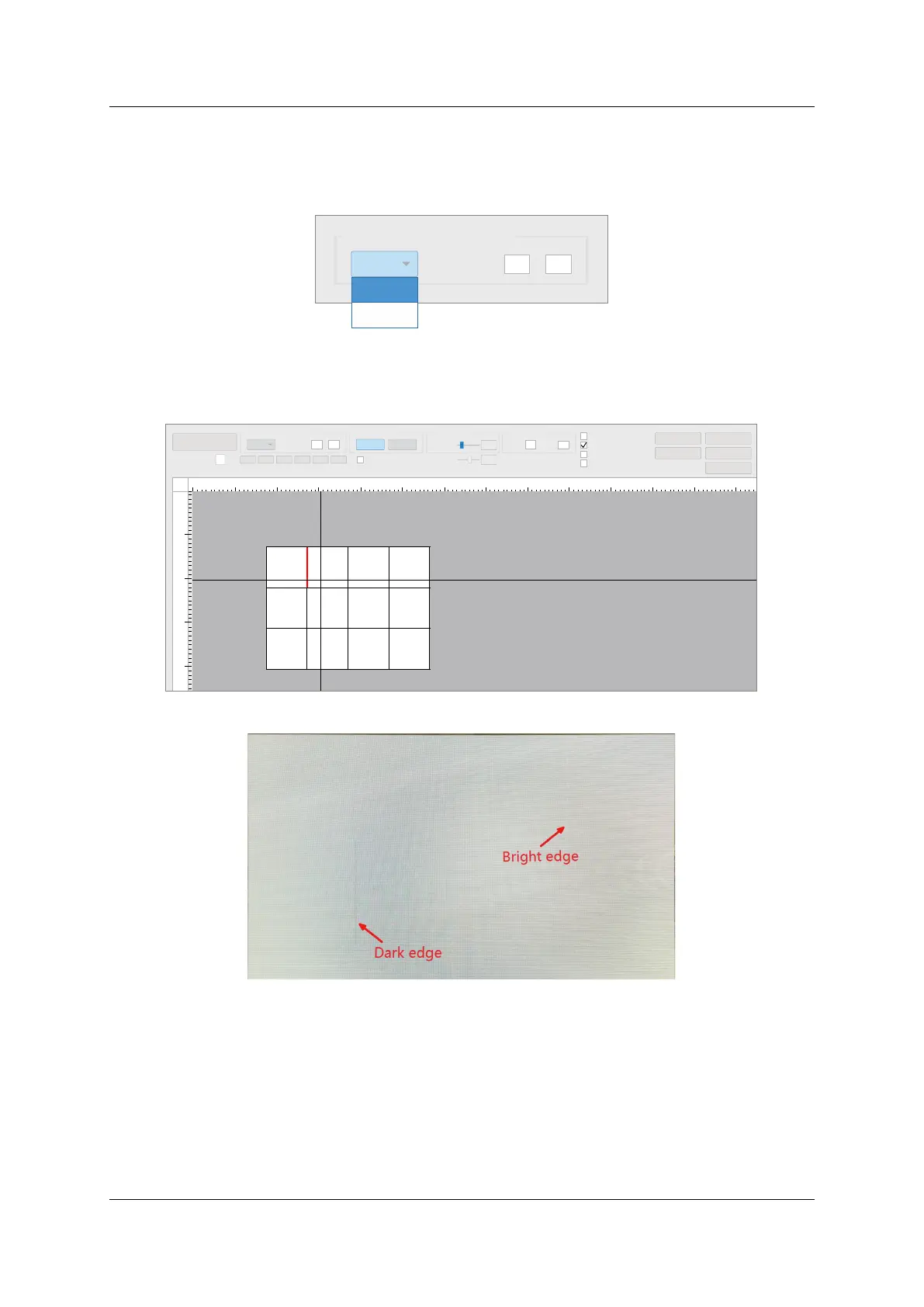

Figure 6-23. Offset screens from different processors
6.16.3 Select the edge to adjust the brightness
Select the edge that stands out, either brighter or darker.
Figure 6-24. Select an edge of panels
Figure 6-25. Bright edge and dark edge on an LED screen
Sending Card Offset Setting
1 Offset X Y
1
2
0 0
Read Scr een Infor mation
Coefficient
1
Sending Card Offset Setti ng
-5%
-2% -1%
+1%
+2% +5%
1 Offset X
Y
Screen Displ ay
Normal Seam
Bri ghtness Adjust
Bri ghtness
Module Size (px)
11%
Scaling 100%
Gr adual Adjustment
Height
64Width 64
Reset Edge Data
Save
Hotkey Setting
Export
Import
200
100 300 400 500 600 700 800 900 1000
1100 1200 1300
100 200 300 400
(304, 202)
Show Module Edge
Select Recei ving Card
Enable Edge Calibr ation
Gamut Adj ustment
