9.1.2.2 Specification
Table 9-3. Specification of H2F fiber converter
Item
Figure
Module
H2F
Storage Temperature -40~85°C
Operating Temperature
0~70°C
Voltage Supply
5V 2A DC
Dimension
L128.5 x W99.6 x 28.3 mm
Data Rate
2.5Gb/s
Mode Single-mode
Distributed Feedback Laser
DFB
Fiber Connector
Duplex LC
Transmission Distance 15km
Fiber Interface
1port, 2.5G
Gigabit Ethernet Port
LAN1 & LAN2 (RJ45)

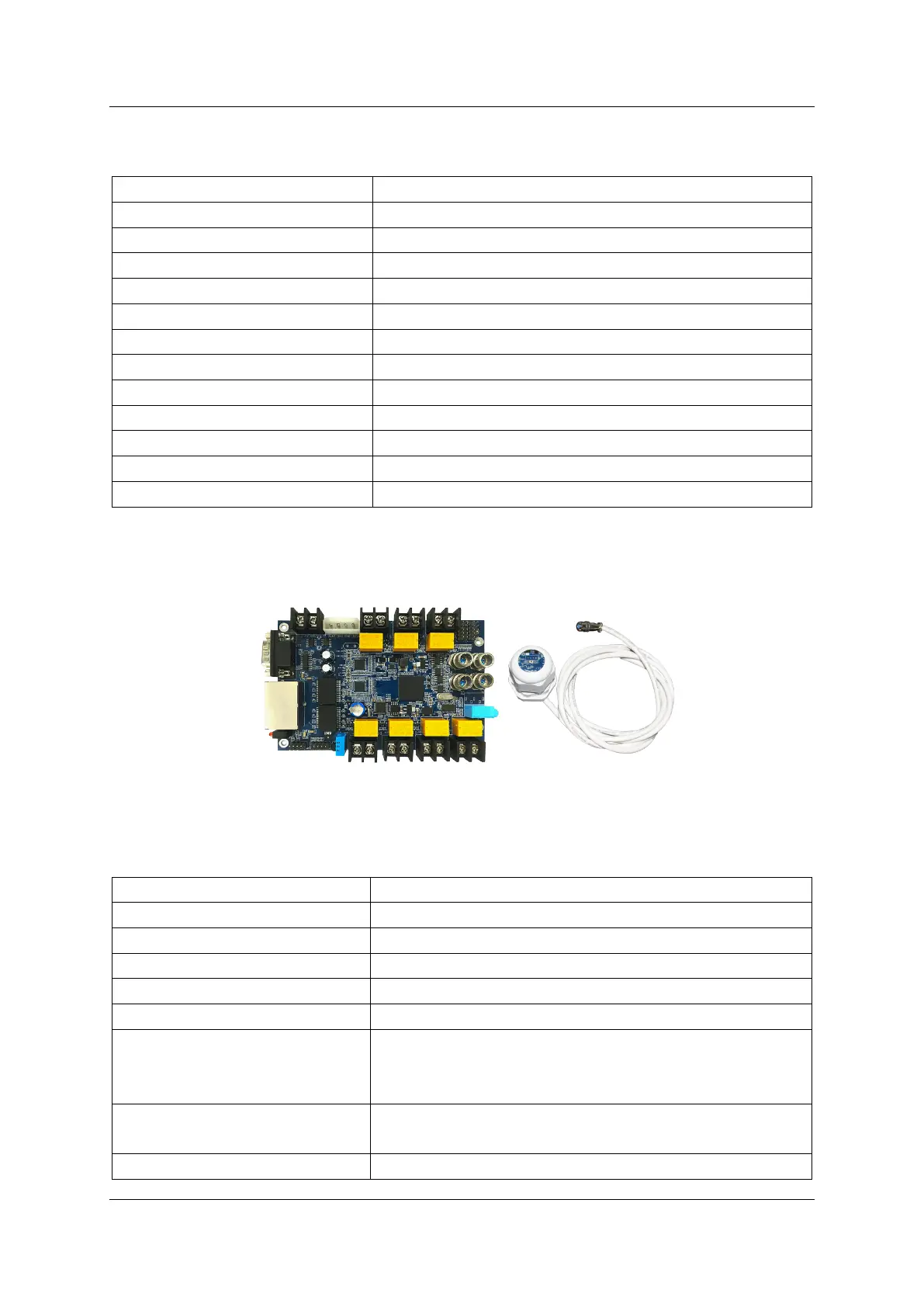

9.1.3 Multi-function Card
9.1.3.1 Device Picture
Figure 9-3. Multi-function card & brightness sensor
9.1.3.2 Specification
Table 9-4. Specification of iM9 multi-function card
Item
Figure
Module iM9 Multi-function Card
Voltage Supply
3.3~6.0V
Power
4.65W
Receiving Card Supported 5A, i5A, i6
Transmission Equipment
Gigabit network switch and fiber converter supported
Switches for Remote Power
Management
4 switches for LED display;
2 switches for air conditioner and fans;
1 switch for other application
Brightness Adjustment
Output brightness can automatically adjust to the
environment.
Sensors Temperature, humidity, smoke
