Detailed Settings for Each Function ([EDIT] Button)
V-LINK ( ) is a function that provides for the play
of music and visual material. By using V-LINK-compatible
video equipment, visual effects can be easily linked to, and
made part of the expressive elements of a performance.
For example, if you use the RD-700GX in conjunction with the
motion dive.tokyo Performance Package, you’ll be able to do
the following.
• Use the RD-700GX to produce synchronized music and
video performances.
In order to use V-LINK between the RD-700GX and
the motion dive.tokyo Performance Package, you’ll
need to make connections using a MIDI cable
(sold separately).

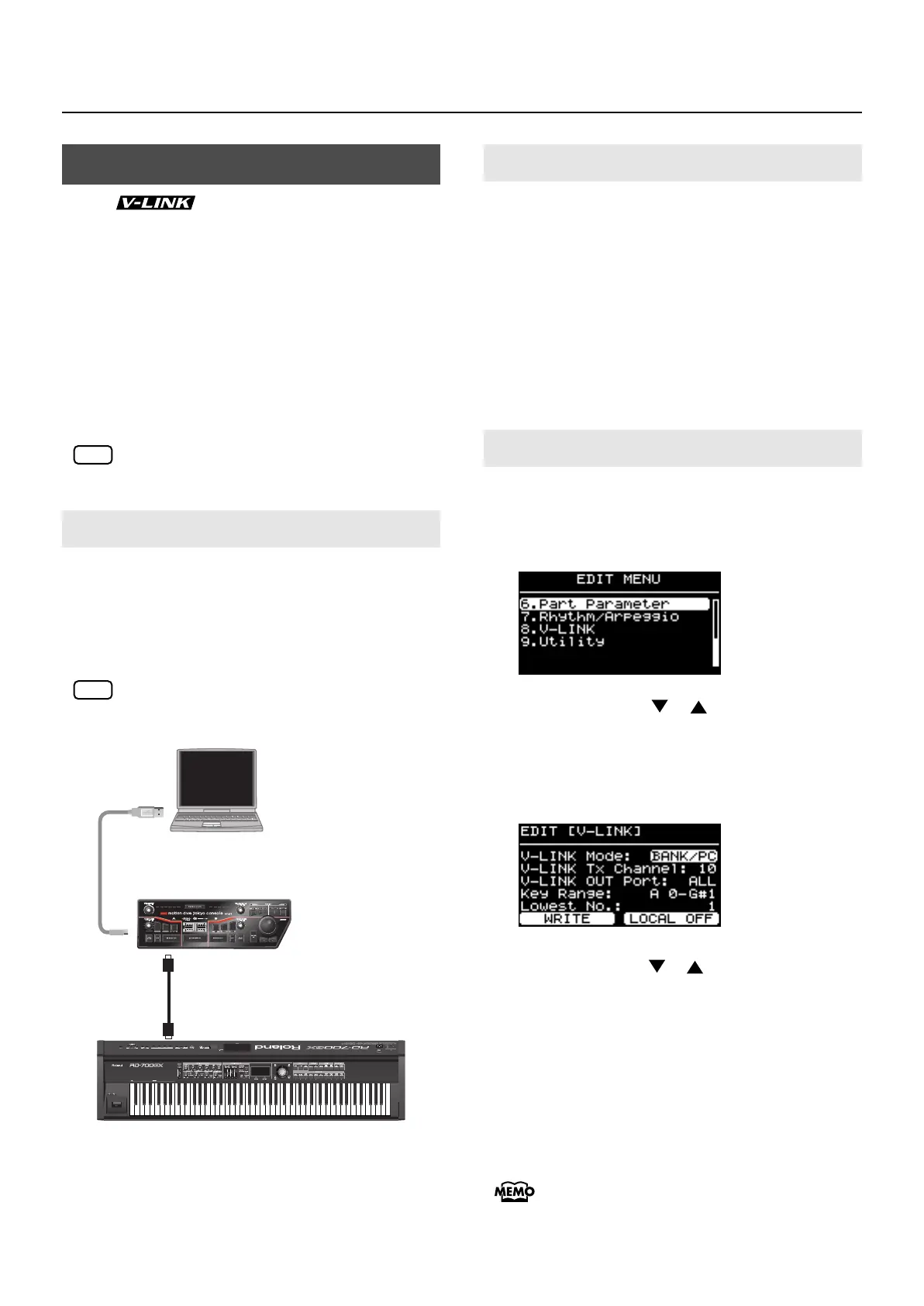

As an example, we will use a Setup in which the RD-700GX is
connected to the motion dive.tokyo Performance Package.
Use a MIDI cable to connect the RD-700GX’s MIDI OUT
connector to the MIDI IN connector of the Edirol MD-P1.
Before connecting this unit to other devices, turn
off the power to all units. This will help prevent
malfunctions and/or damage to speakers or other
devices.
fig.05-25vlink
1.
Press the [V-LINK] button.
The [V-LINK] button will light, and the V-LINK setting will
be on.
In this state, you can operate the keyboard to
manipulate images in sync with the playback of the RD-
700GX.
2.
Press the [V-LINK] button again.
The [V-LINK] button will go out, and the V-LINK setting
will be off.
1.
Press the [EDIT] button, getting the indicator to
light.
The Edit Menu screen appears.
2. Press the Cursor [ ] [ ] buttons to select
“8.V-LINK.”
3.
Press the [ENTER] button to display the Edit
screen.
fig.05-27-1g
4.
Press the Cursor [ ] [ ] buttons to move the
Cursor to the parameter to be set.
5. Use the [DEC] [INC] buttons or the VALUE dial
to edit the value.
6.
When you have finished making the settings,
press the [EXIT/SHIFT] button.
You are returned to the previous screen.
If you want to save this settings, press the
[F1(WRITE)] button. Settings saved in the RD-
700GX are not deleted even when the power is
turned off.
About V-LINK
Connection Examples
NOTE
NOTE
RD-700GX
MIDI OUT
MIDI IN
Edirol motion dive .tokyo
Performance Package
Computer
Turning the V-LINK ON/OFF
V-LINK Settings
