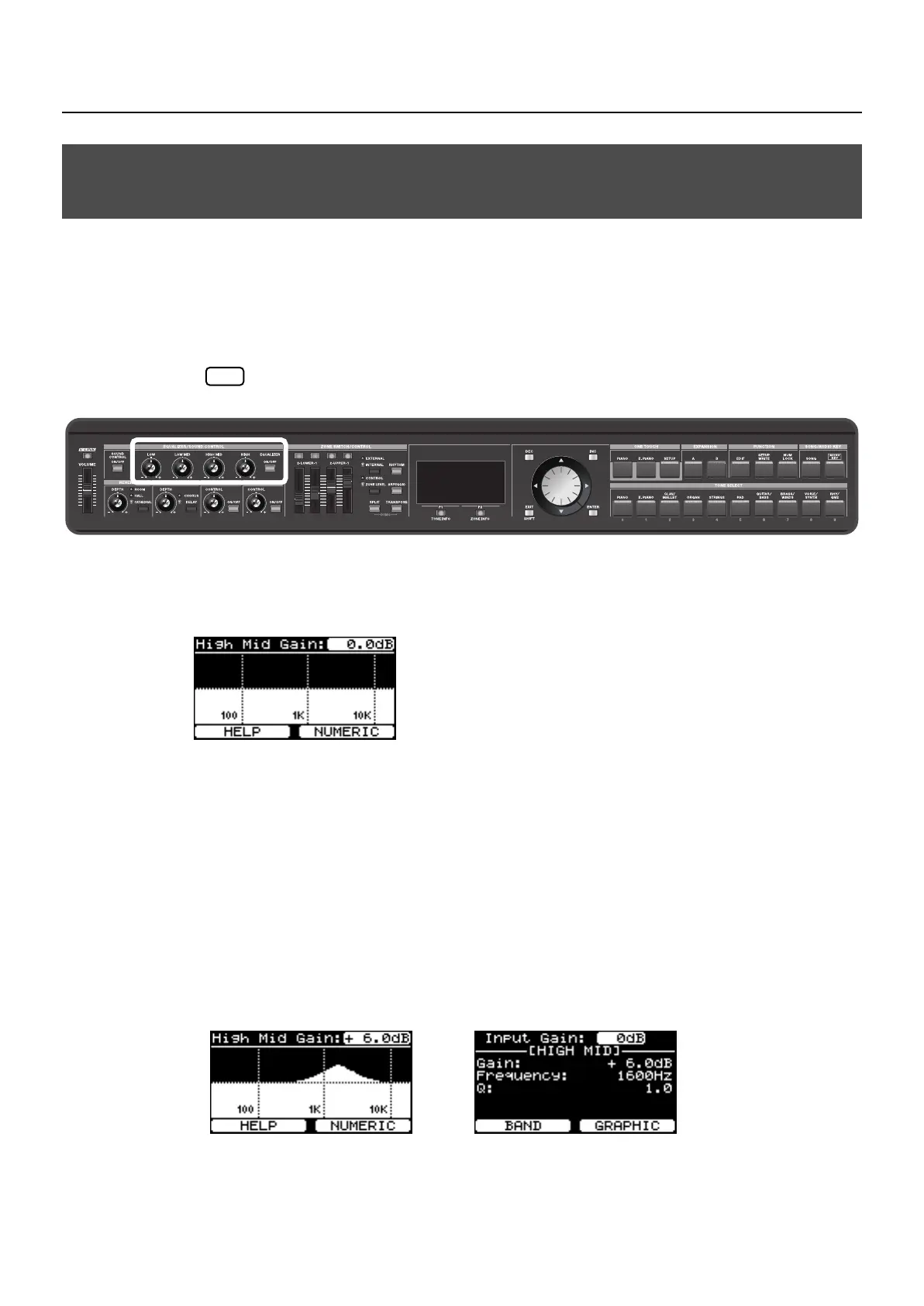

Roland RD-700GX - Adjusting the Levels of each Frequency Range ([EQUALIZER] Button)

51
Performance
The RD-700GX is equipped with a four-band equalizer.
You can use the EQUALIZER [LOW] knob, [LOW MID] knob, [HIGH MID] knob, and
[HIGH] knob to adjust the level of each frequency range.
By holding down the [EXIT/SHIFT] button and turning the corresponding knob, you can
adjust the center frequency of each frequency range.
Equalization is applied to the overall sound output from the OUTPUT jacks.
fig.Q1-28eq
1.
Press the EQUALIZER [ON/OFF] button to make its indicator light.
A screen like the one shown below appears, and the equalizer is turned on.
fig.Q1-29g
2.
Turn the knobs to adjust the levels and the frequency in each range.
Rotating a EQUALIZER knob ([LOW] knob, [LOW MID] knob, [HIGH MID] knob, [HIGH] knob) in
the negative direction cuts the level of that frequency range; rotate it in the positive direction boost
the level of that range.
In addition, holding down the [EXIT/SHIFT] button and turning a knob toward the “–” (negative)
direction will lower the frequency, and turning it toward the “+” (positive) direction will raise the
frequency.
You can press the [F2] button to get a numerical reading for the value of the setting. Pressing the
[F2] button toggles you between “NUMERIC” and “GRAPHIC” as the format for what you see
indicated in the screen.
fig.Q1-30g
Adjusting the Levels of Each Frequency Range
([EQUALIZER] Button)
NOTE
GRAPHIC NUMERIC
