Roland SP-404MK - Rear Panel

Introduction > PanelDescriptions

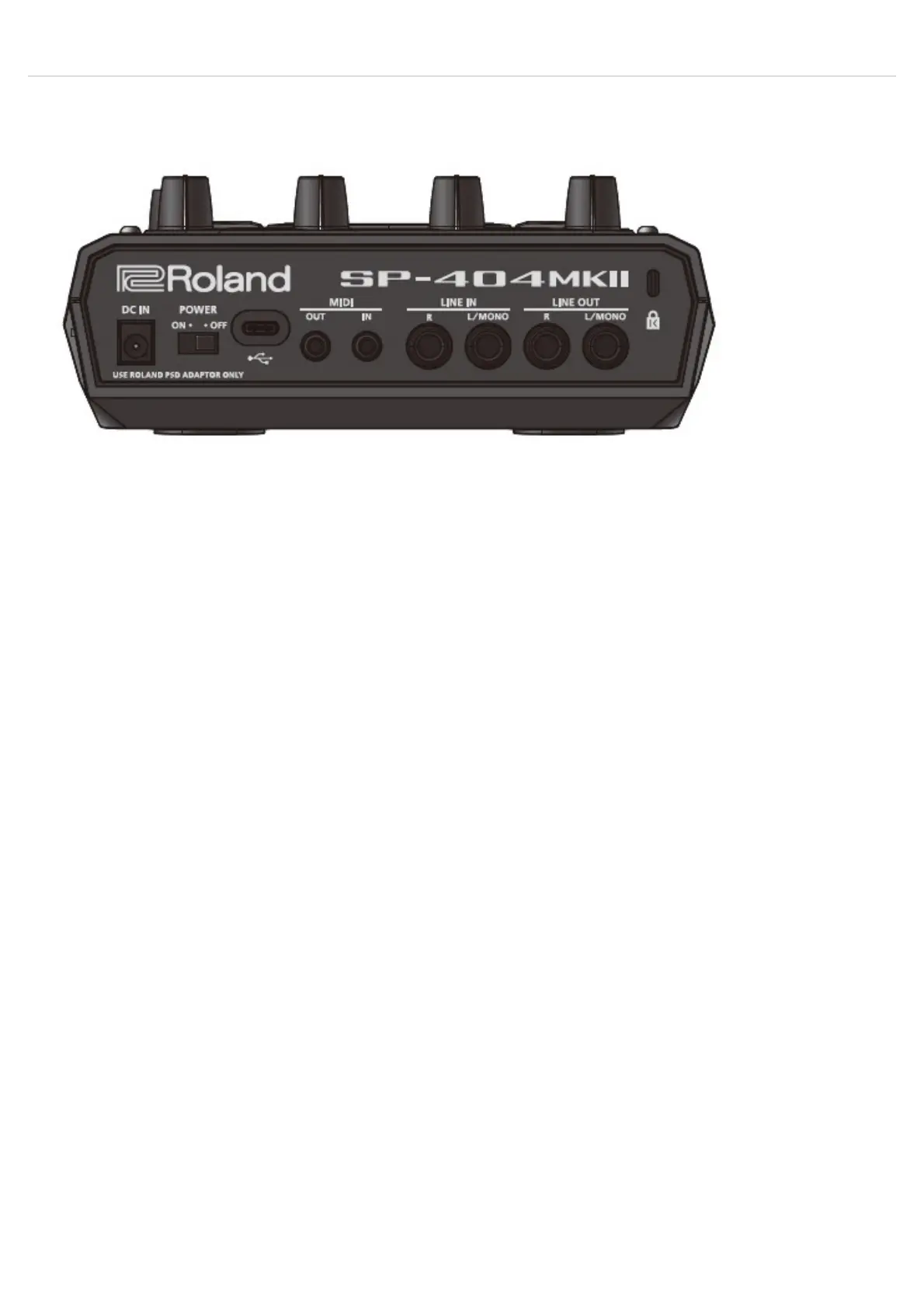

RearPanel
DCINjack
ConnecttheincludedACadaptortothisjack.
1
[POWER]switch
Turnsthepoweron/off.
2
USBport
Usethistoconnectyourcomputer,ortoreceivepowerviatheUSBport.
3
MIDIIN/OUTjacks
ConnectanexternalMIDIdevicehere.Tomaketheseconnections,useTRS/MIDIconnectingcables(sold
separately:BMIDI-5-35).
4
LINEIN(L/MONO,R)jacks
Thesearejacksforinputtingtheaudiosignal.
ConnecttotheL/MONOjackformonoinput.
5
LINEOUT(L/MONO,R)jacks
Thesearejacksforoutputtingtheaudiosignal.
ConnecttotheL/MONOjackformonooutput.
6
