Connecting the Pads
Using the provided cables, connect the pads, cymbals, hi-hat, and kick trigger.
MEMO
When mounting a TD-30 on an MDS-25 or an MDS-12V drum stand, use the built-in connection cables.
Set up example

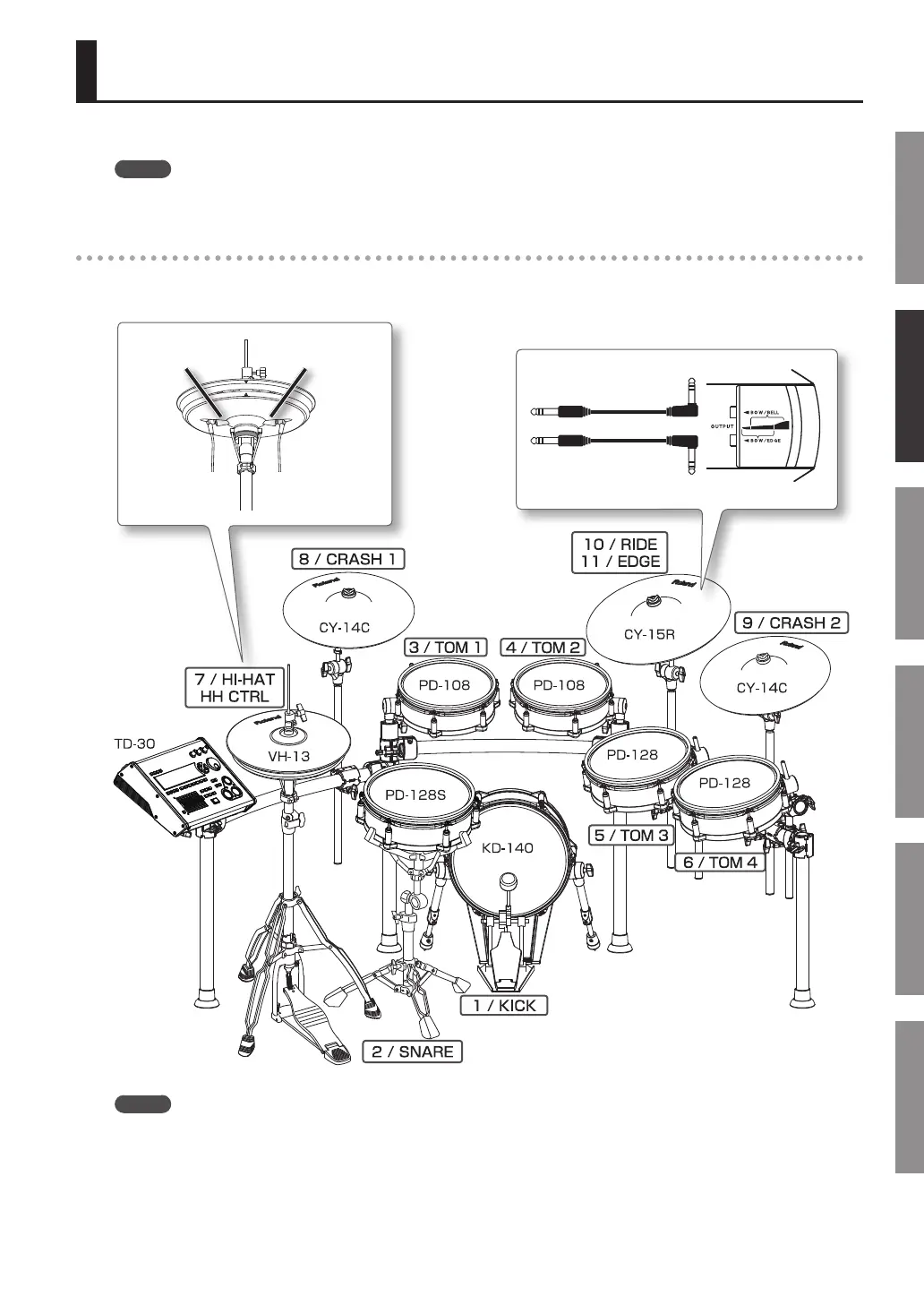

Connect the various pads to the TD-30’s TRIGGER INPUT jacks.
The names of the corresponding TRIGGER INPUT jacks on the TD-30 are enclosed with a solid line in the illustration below.
to TD-30’s
RIDE jack
to TD-30’s
EDGE jack
BOW/BELL
BOW/EDGE
TRIGGER
OUTPUT jack
CONTROL
OUTPUT jack
to TD-30’s
HH CTRL jack
to TD-30’s
HI-HAT jack
MEMO
The HI-HAT and RIDE cymbal use two cables each.
