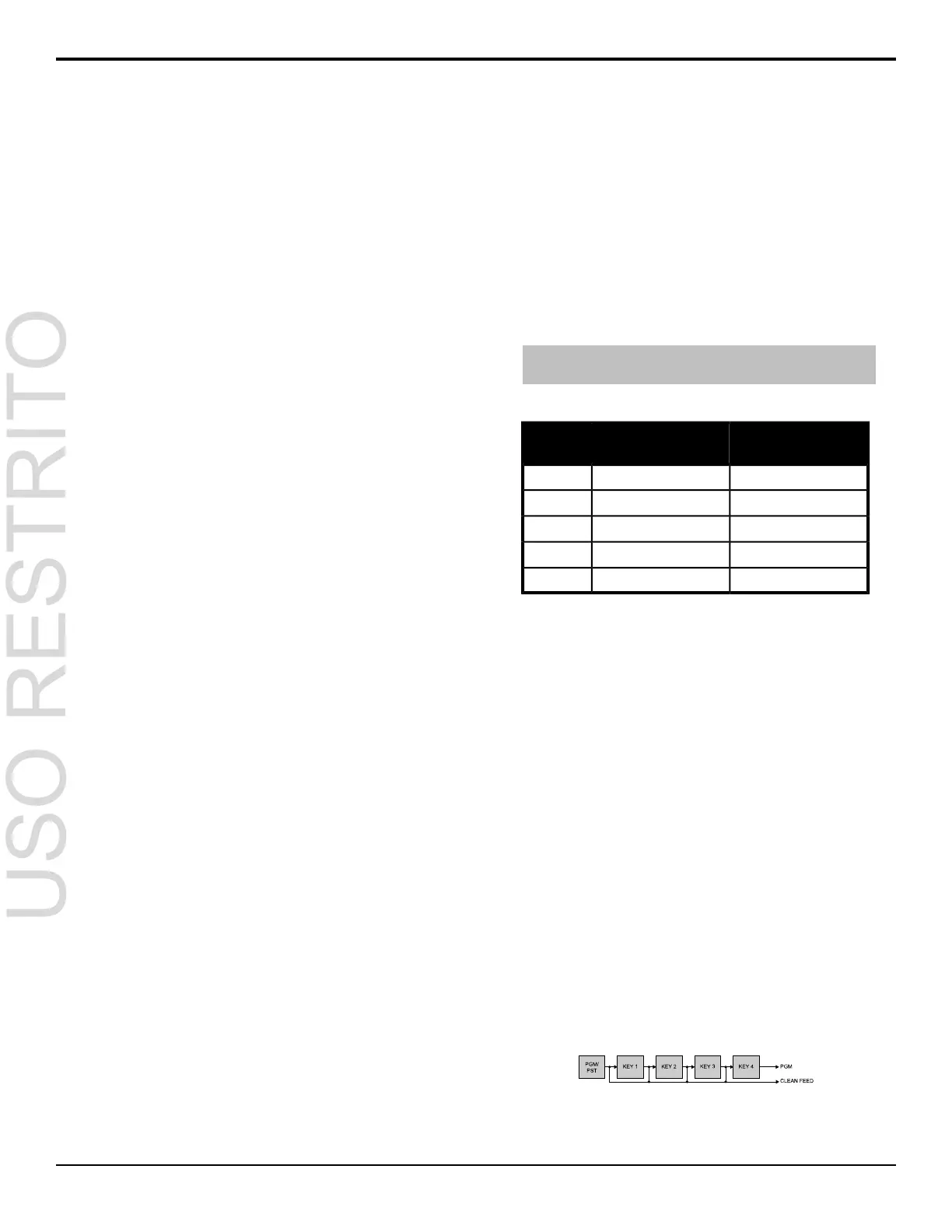

Ross Carbonite Series Setup Manual

Video Outputs
The frame has a number of output BNCs that can be
assigned to any video source in the switcher, including
Media-Store channels, aux bus, and clean feed.
Output Sources
You can assign a video source or a bus to an Output BNC
or the PRV BNC.
To Assign a Source to an Output
1.
Press MENU > SYSTEM > NEXT > NEXT >
NEXT > Output Config.
2.
Use the Output knob to select the output you
want to assign a source to.
The PGM output is locked to the Program output
of the highest ME on the switcher.
3.
Use the Source knob to select the source you
want to assign to the output.
•
1-24 — video inputs
•
BK — black
•
BG — matte generator
•
M1-M4 — Media-Store channels
•
M1MW — Media-Store video channel used
for MediaWipe effects on ME 1 (if installed)
•
M2MW — Media-Store video channel used
for MediaWipe effects on ME 2
•
M1MWA — Media-Store alpha channel used
for MediaWipe effects on ME 1 (if installed)
•
M2MWA — Media-Store alpha channel used
for MediaWipe effects on ME 2
•
PGM — main program output of the switcher
•
PV — main preview output of the switcher
•
CLN — clean feed for main program of
switcher
•
ME1 — main program output of ME 1 (if
installed)
•
ME1 PV — main preview output of ME 1
(if installed)
•
ME1 CLN — clean feed output of ME 1 (if
installed)
•
AUX1-8 — aux buses
•
MV1-MV2 — MultiViewer
•
MinME1-4 — main program output of
MiniME
™
channels
Ancillary Data
Ancillary data is information such as closed captioning
or embedded audio, for example, that is included in the
non-active video portions of the video signal. These
portions include the Horizontal Ancillary Data Space
(HANC) and Vertical Ancillary Data Space (VANC).
The switcher can be congured to strip or pass this data
from the video output. The amount of data, and how it
is stripped, depends on the video format of the video
signal.
Note: Frame Converters and Synchronizers strip embedded
audio data from the video signal.
Table 4: Last Line of Vertical Ancillary Data
Long Strip/PassNormal Strip/PassVideo
Format
2119480i
2422576i
2525720p
20201080i
41411080p
To Strip or Pass Ancillary Data
1.
Press MENU > SYSTEM > NEXT.
2.
Use the Anclry knob to select whether ancillary
data is stripped or passed.
•
N Strp — ancillary data is stripped
•
N Pass — ancillary data is passed
unmodied
•
L Strp — ancillary data and some lines of
active video are replaced with black
•
L Pass — ancillary data and some lines of
active video are passed unmodied
FlexiClean Clean Feed
FlexiClean
™
Clean Feed provides a second program
output per ME that is derived from a different point in
the video layering than the standard program output. The
clean feed can be set to come before any key in the video
layering for an ME. This allows you to remove particular
keys without affecting the primary program output.
Figure 11: Possible Clean Feed Points
24 • Video Outputs — Carbonite Setup Manual (v10.0)
