Levels can be assigned more than once to different or distinct partitions, but only one level can be selected for each
partition.

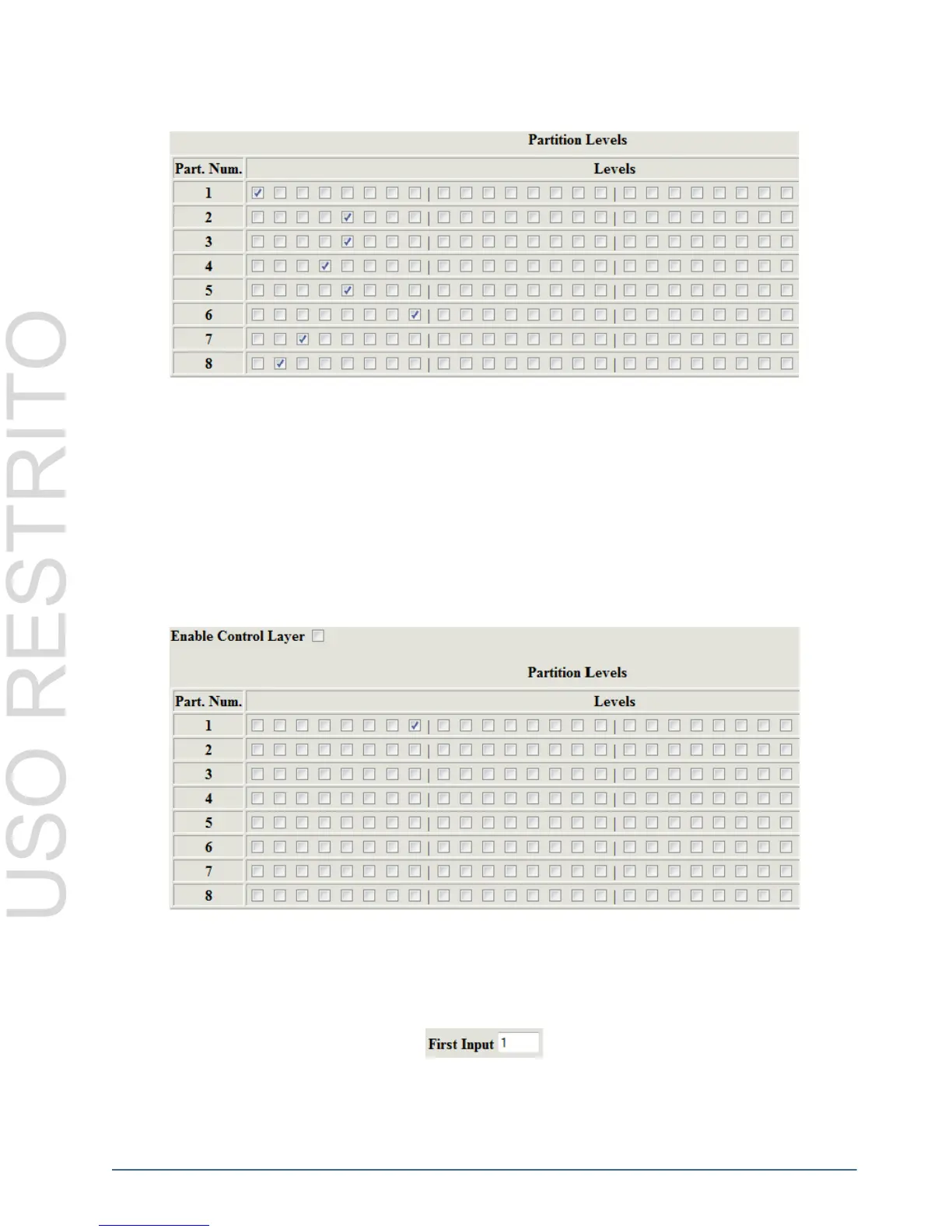

Figure 4.5 Partition Levels
Control Layer Partitions (NK-A64 only)
The NK-A64 Analog Audio Level Router has a control layer in addition to the first and second levels (left and right
channels respectively). The control layer is used for lossless signal mixing, for more information, refer to “NK-A64
Control Layer” on page 5–10.
The Control Layer Partition table allows users to configure levels to each partition. Selecting a level, by selecting a
check-box in the Levels column, assigns that level to a partition number from the Part. Num. (Partition Number)
column.
Levels can be assigned more than once to different or distinct partitions, but only one level can be selected for each
partition.
Figure 4.6 Control Layer Partitions
First Input
The First Input defines the first source used (from the range of 1-255) by the router. The valid range for the First
Input is 1-65535, the default is 1.
