Set up the Connection to the PC
AC-115 Software Installation and User’s Guide Page 12

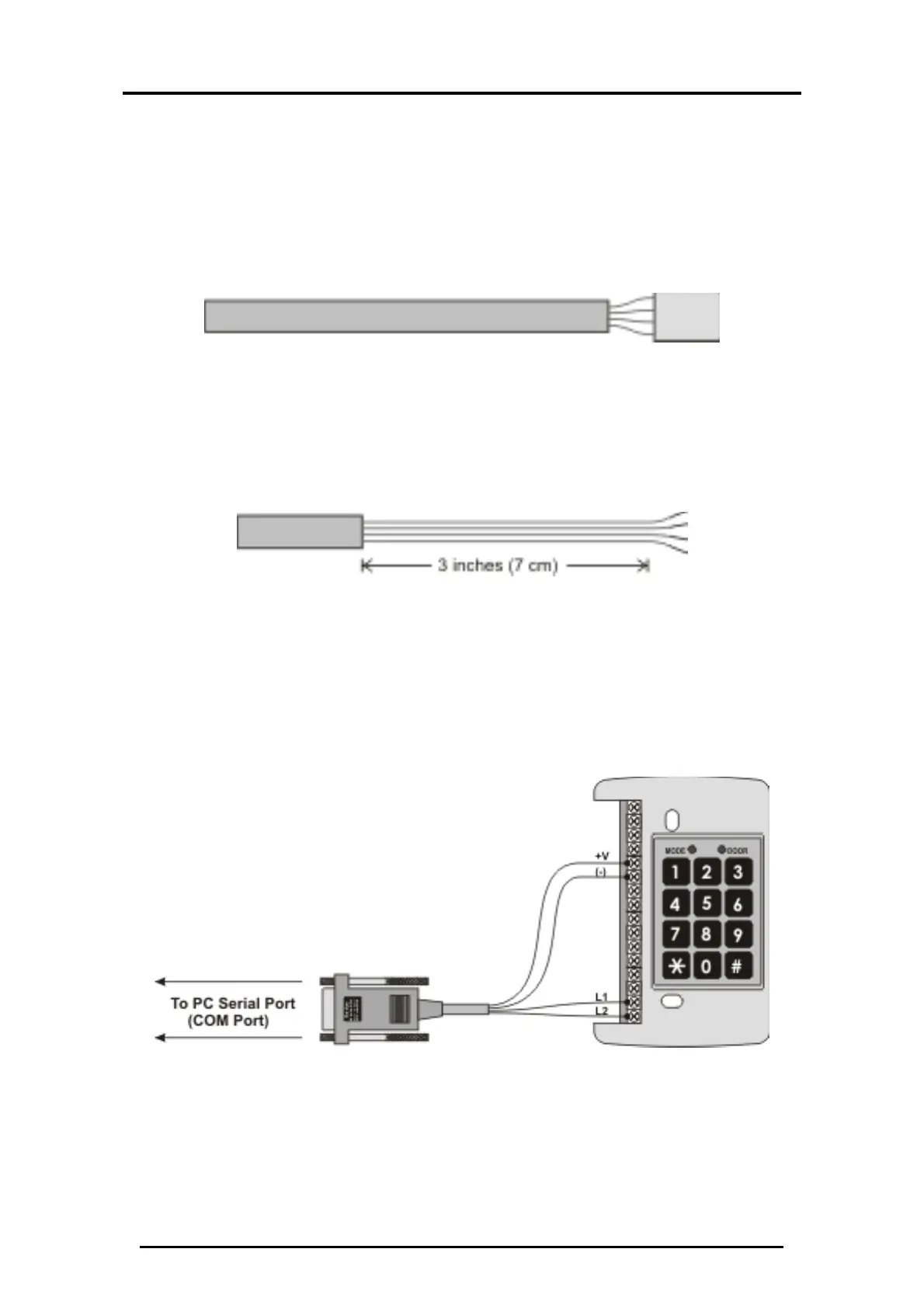

Prepare your MD-14 for Use with the AC-115
This is a brief set of instructions on preparing the MD-14 for the
AC-115. When you receive a new MD-14, the RS485 connector
should look like the following.
Figure 7: New MD-14
Cut the connector off and remove about 3 inches (7 cm) of
cable shielding and strip the ends of the four wires about a
quarter of an inch (5 mm).
Figure 8: Modified MD-14
Connect the MD-14 to the AC-115 and your PC
The wiring diagram below demonstrates how to attach the
MD-14 to the AC-115.
Figure 9: MD-14 to AC-115 Connection
