Using the MD-08
AC-115 Software Installation and User’s Guide Page 88

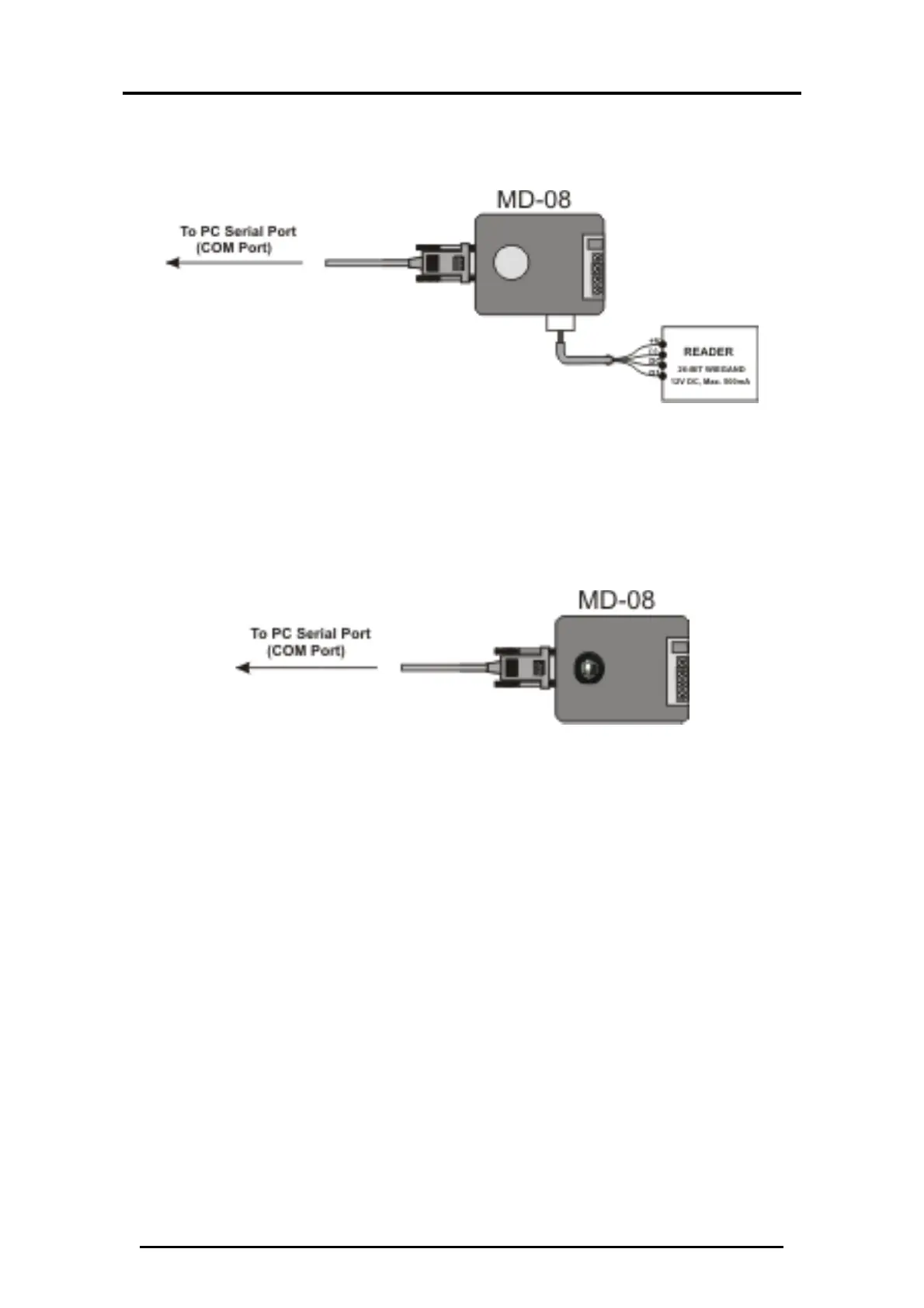

Attaching a Rosslare Reader Directly to the MD-08’s Connector
Input
MD-08 Connector to Reader
(Readers are not provided with the MD-08 and must be
purchased separately.)
Installing Rosslare’s MD-12W Prox Reader Module Directly into
the MD-08
Figure 107: MD-12W to MD-08
(The MD-12W is not provided with the MD-08 and must be
purchased separately.)
