Rosslare AYC-Q60 - Controller Wiring Diagram

Wiring Instructions
18 AYC-E/Q/T60 Family Installation and Programming Manual

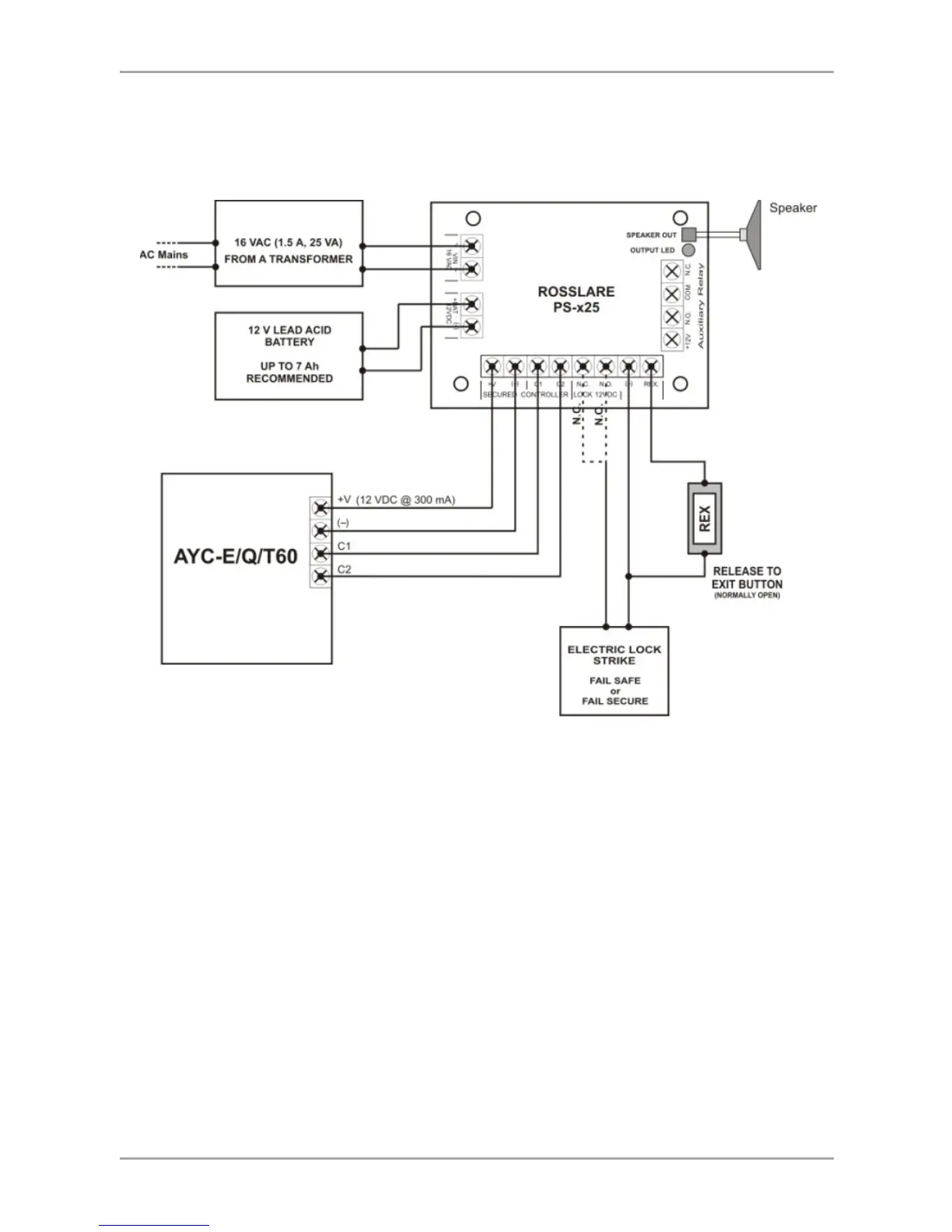

Figure 4 shows the wiring for the Controller Application using a
secured intelligent power supply.
Figure 4: Controller Application Wiring Diagram
