16 AYC-E/Q/T60 Family Installation and Programming Manual

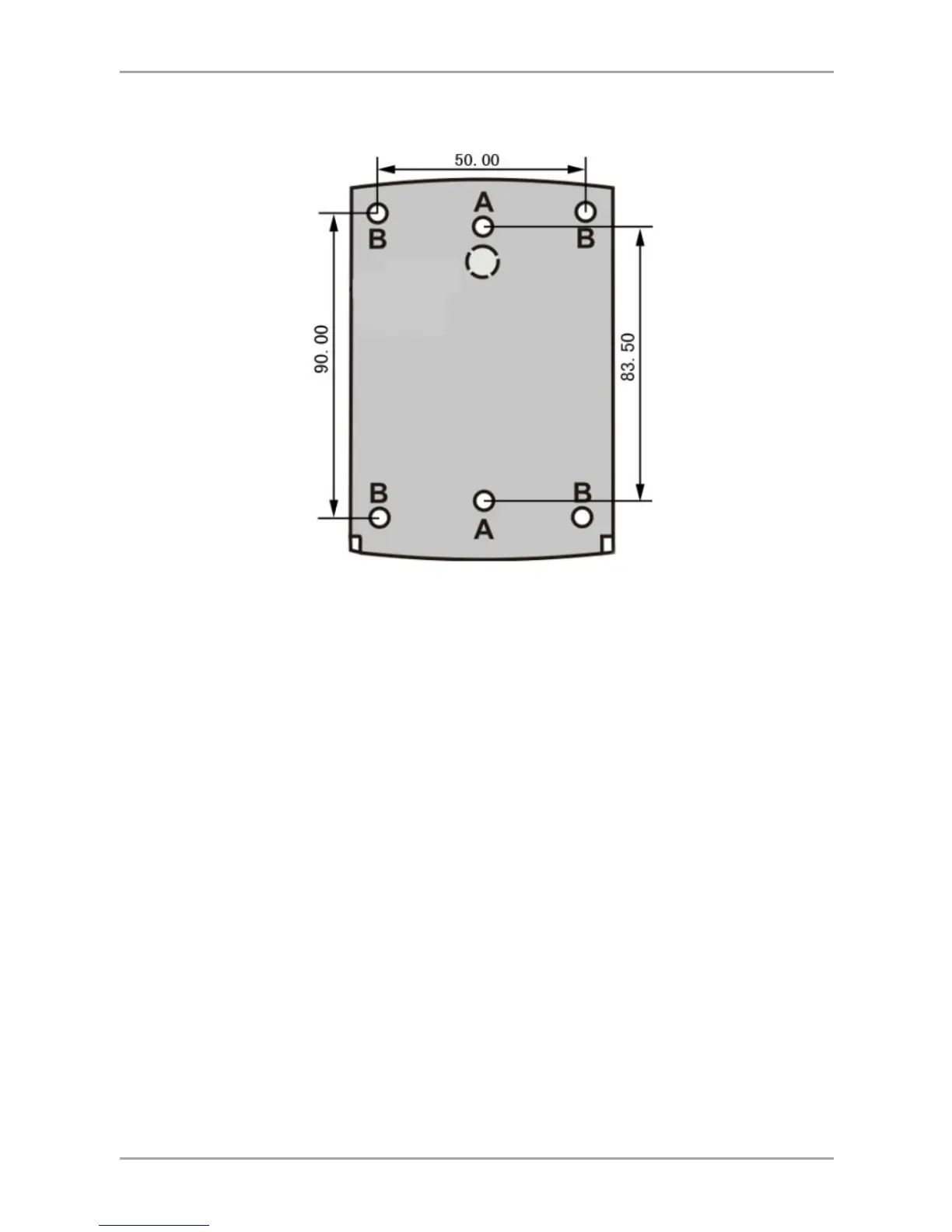

Figure 3: Drilling & Mounting Template for AYC-Q60
5. Drill an additional 10-mm (
7
/
16
”) hole for the cable.
When installing the reader on a metallic surface, cover the inside
of the hole with a grommet or electrical tape.
6. Route the reader's cable to the power and access control system.
A regulated linear power supply is recommended.
7. Screw the back plate into the surface. Ensure the screws are the
size specified on the installation template.
8. Alternatively, the reader can be mounted with any strong epoxy
glue:
a. Apply the glue.
b. Hold the reader's back plate firmly in place until the glue
dries.
9. Re-attach the reader's front cover.

Rosslare AYC-Q60 Specifications

General

Brand	Rosslare
Model	AYC-Q60
Category	Card Reader
Language	English
