Installation
14 AYC-E/Q/T60 Family Installation and Programming Manual
3. Installation
The AYC-E/Q/T60 should be installed at shoulder height.
3.1 Mounting the AYC-E/T60
To mount the AYC-E/T60:
1. For wall mounting, use the included mounting template as a
guide for drilling holes for mounting screws and wiring (Figure 1
and Figure 2). For US Gang Box mounting, no drilling is necessary.

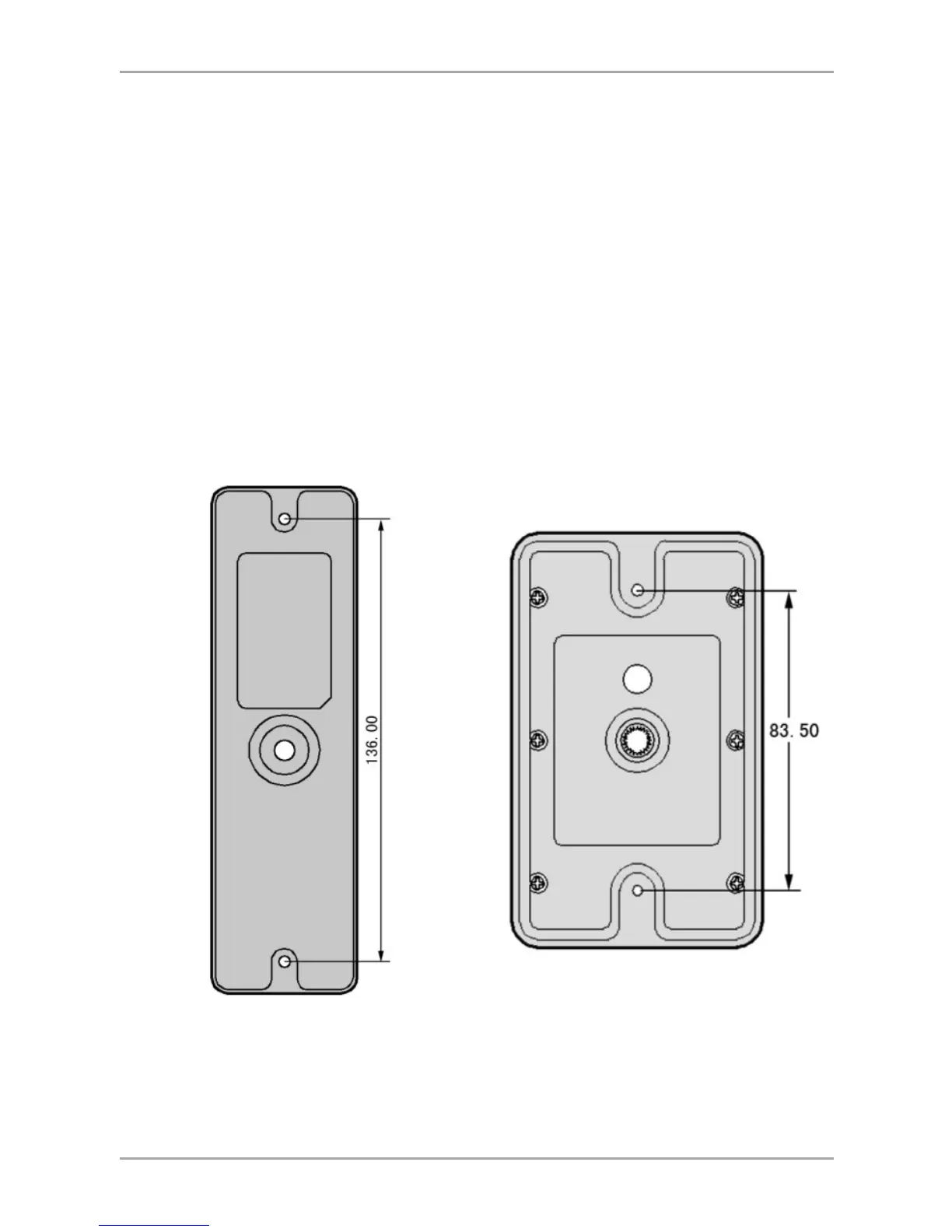

Figure 1: Drilling & Mounting
Template for AYC-E60
Figure 2: Drilling & Mounting
Template for AYC-T60
2. When the unit is used as a reader, route the interface cable from
the AYC-E/T60 to the controller. A linear type power supply is
recommended when using the unit as a reader
