CK Standard and CKR Start Up Guide
12
CK Additional Indication Drive – Basic Settings
Setting Local Position Disc
The AID module includes a Local Position Disc that should
be configured to show Open and Close limit positions.
A series of reduction gears ensure a suitable range of travel
can be accommodated. If more turns are required please
contact Rotork.
CAUTION: The actuator position limits must be
configured prior to setting the Local Position Disc.
CAUTION: The AID cover orientation can be
adjusted through 360⁰ in 90⁰ increments. If this is
a requirement then the following instructions must
be adjusted by the same increment in the same
direction.

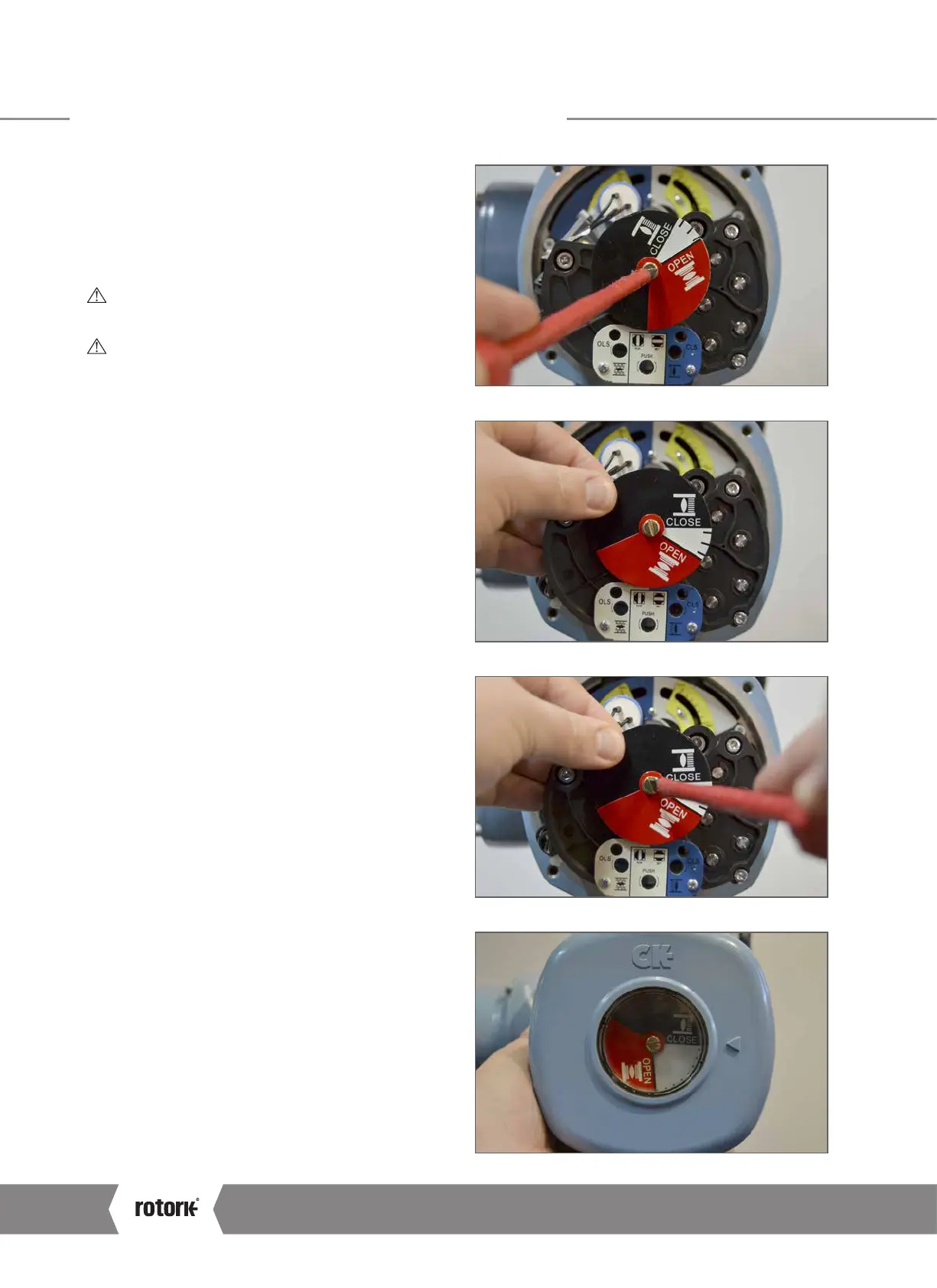

1) Move the actuator to the CLOSED limit using electrical
operation or the handwheel.
2) Loosen off the Position Disc Retaining Screw by 1 turn.
3) Rotate the Position Disc so that CLOSE reads horizontally
and hold the disc in place.
4) Tighten the Position Disc Retaining Screw until the Position
Disc is firmly locked in place.
5) Confirm the CLOSE label is aligned correctly with the cover
indication arrow.
