TV Mode
17.0 HELP: AUTOMATIC TUNING FUNCTION
• Press the MEAS [6] key to set the transponder centre frequency, Local Oscil-
lator frequency, the Polarization and Band of the received signal for which we
want to get all the tuning parameters (Ref. Section 5.0),
OR
• Press the SPECT [5] key and place the frequency marker on the centre fre-
quency of the digital carrier shown on the display (Ref. section 6.0),
• Press the HELP [12] key to start the auto-tuning function.

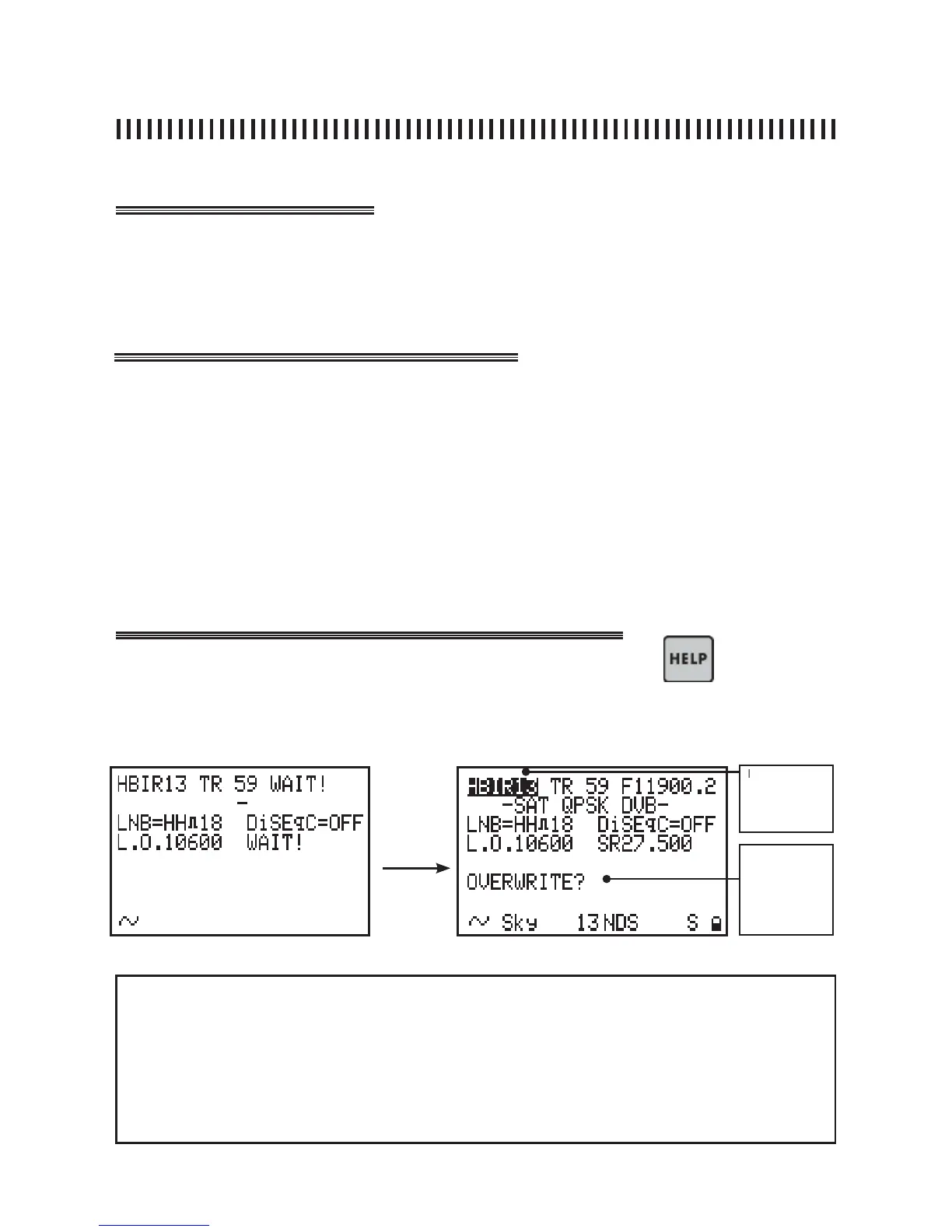

fi g. 17.1 Automatic search of a transponder tuning parameters
when
locked
The HELP [12] key will start an automatic search of all the tuning parameters of a se-
leted transponder. This function is particularly useful if there is the need to recognize
a transponder found in SPECTRUM or MEAS mode which has not been pre-memo-
rized in any Memory Plan and of which we know only its frequency.
When help is need in order to lock a digital signal press the key,
the meter will start an automatic search of all the missing tuning parameters.
(signal standard: DSS or DVB and Symbol Rate).
NOTES
• When the transponder is locked, the meter will display a memorization menu to store
the transponder in the fi rst available memory location of the active memory plan (fi g,
17.1),
• In this menu it is possible to choose a different memory plan,
• If the memory location is already used, the meter will display “OVERWRITE?” othe-
rwise it will show “SAVE”.
choose with se-
lect and press
up or down to
memorize
Use SELECT
to choose a
Memory Plan
