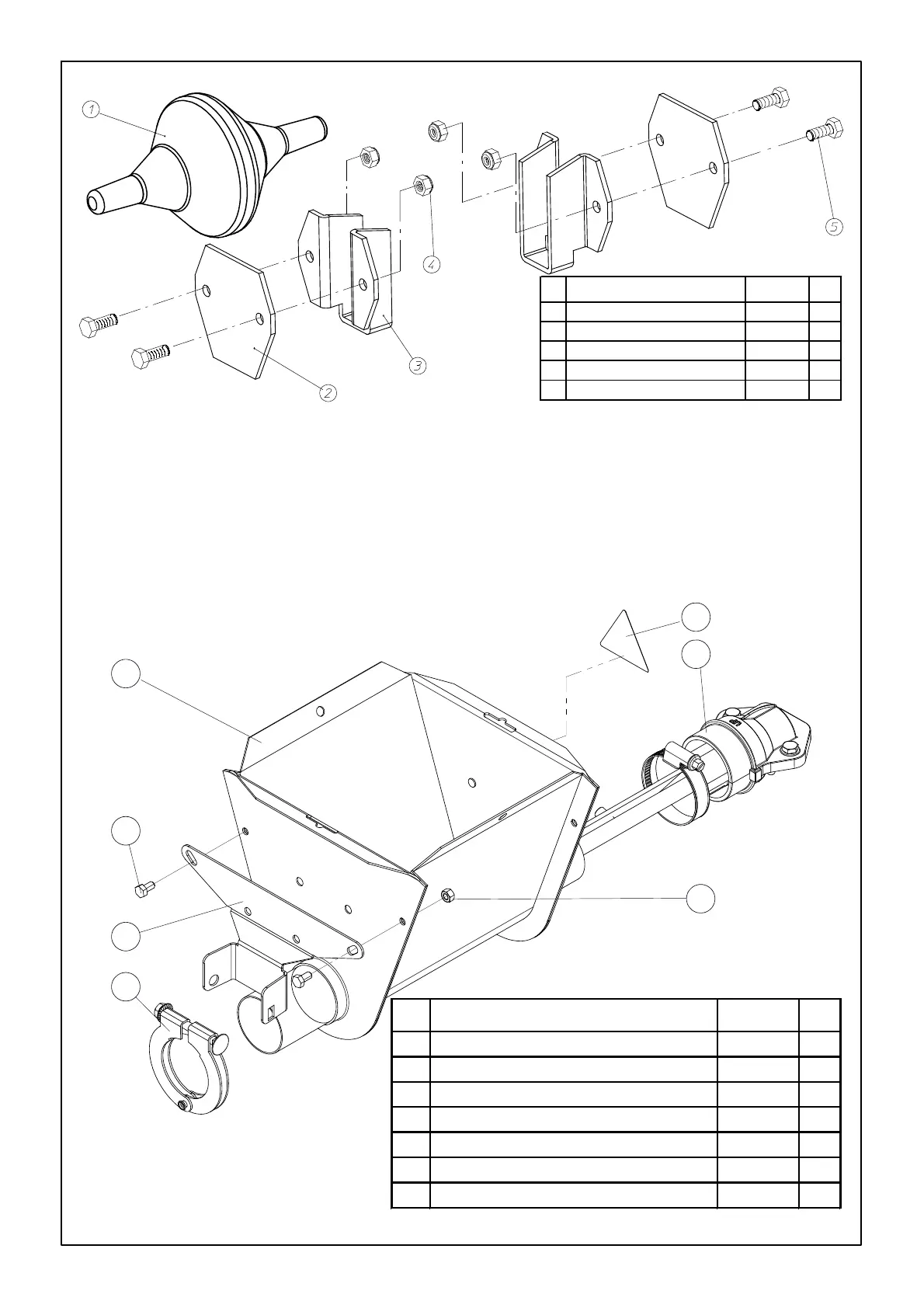

Roxell CoMeo - Thumper Assembly (Option; Feed Intake Boot

ROXELL - 009 - 4016
COMEO - COMPONENTS
II- 11
THUMPER ASSEMBLY (OPTION) - 00103036
K
e y Nam e Par t Nr . Qt .
1 THUMPER BODY POULTRY 10107548 1
2 THUMPER STOP 13107982 2
3 THUMPER HOLDER 13107974 2
4 LOCKNUT M6 - DIN 985 20100400 4
5 BOLT M6 X 16 - DIN 933 - 8.8 20100178 4
FEED INTAKE BOOT - 00106500
3
5
1
6
4
7
2
TUBE ∅ 44,5 mm
Key Nam e Part Nr. Qt.
1 BOOT BODY WELDMENT 10102192 1
2 REINFORCEMENT HOOK 10107597 1
3 TUBE CLAMP ASSEMBLY DIA. 45 MM 00102921 1
4 NUT M5 - DIN 934 20100152 2
5 BOLT M5X10 DIN 933 20100111 2
6 A NCHOR & BEA RING A SS'Y 10111441 1
7 DECAL - HANDS WARNING 13106596 1
