Roxell CoMeo - Winch W;Switch - Motor Operated; Option: Control Panel for Central Winch; Option: Control Switch for Winch

ROXELL - 001 - 1020
COMEO - COMPONENTS
II- 27

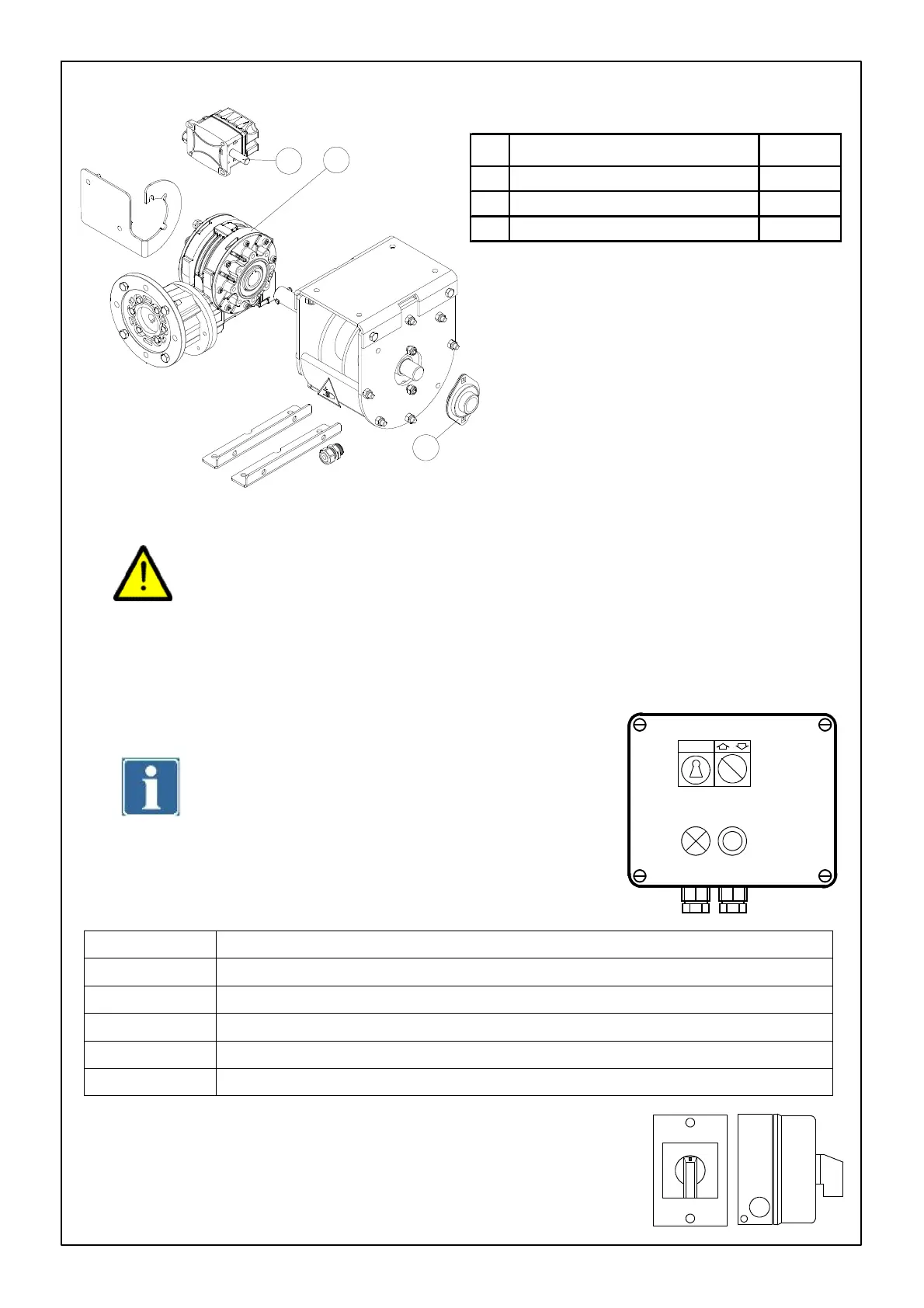

WINCH W/SWITCH - MOTOR OPERATED - 00107190
1
3
2
Key Nam e Part Nr.
1 FLANGE BEARING DIAMETER 25 11006756
2 GEARBOX FRA60 PC1 - 1/320 10106136
3 LIMIT SWITCH WINCH 10111845
OPTION : CONTROL PANEL FOR CENTRAL WINCH
SKEY
0I
RED 230VAC
H
SW1
ST1
Do not use the winch control panel to directly switch motor currents.
Only use the winch control panel to switch control currents up to
3 A at 240 V on an AC-15 load.
The motor must be protected against short circuits and
overcurrents, in accordance with local regulations.
You can use a motor starter to switch and protect the motor.
WARNING
Always ensure solid earthing!
Used in combination with single-phase motors.
00101030 CONTROL PANEL FOR 1 WINCH MOTOR
00101048 CONTROL PANEL FOR 2 WINCH MOTORS
00101055 CONTROL PANEL FOR 3 WINCH MOTORS
00101063 CONTROL PANEL FOR 4 WINCH MOTORS
00101071 CONTROL PANEL FOR 5 WINCH MOTORS
00101089 CONTROL PANEL FOR 6 WINCH MOTORS
OPTION: CONTROL SWITCH FOR WINCH -
00102327
(IN COMBINATION WITH THREE PHASE MOTORS)
1
0
2
