COMEO - INSTALLATION INSTRUCTIONS
ROXELL - 001 - 1020
III- 8

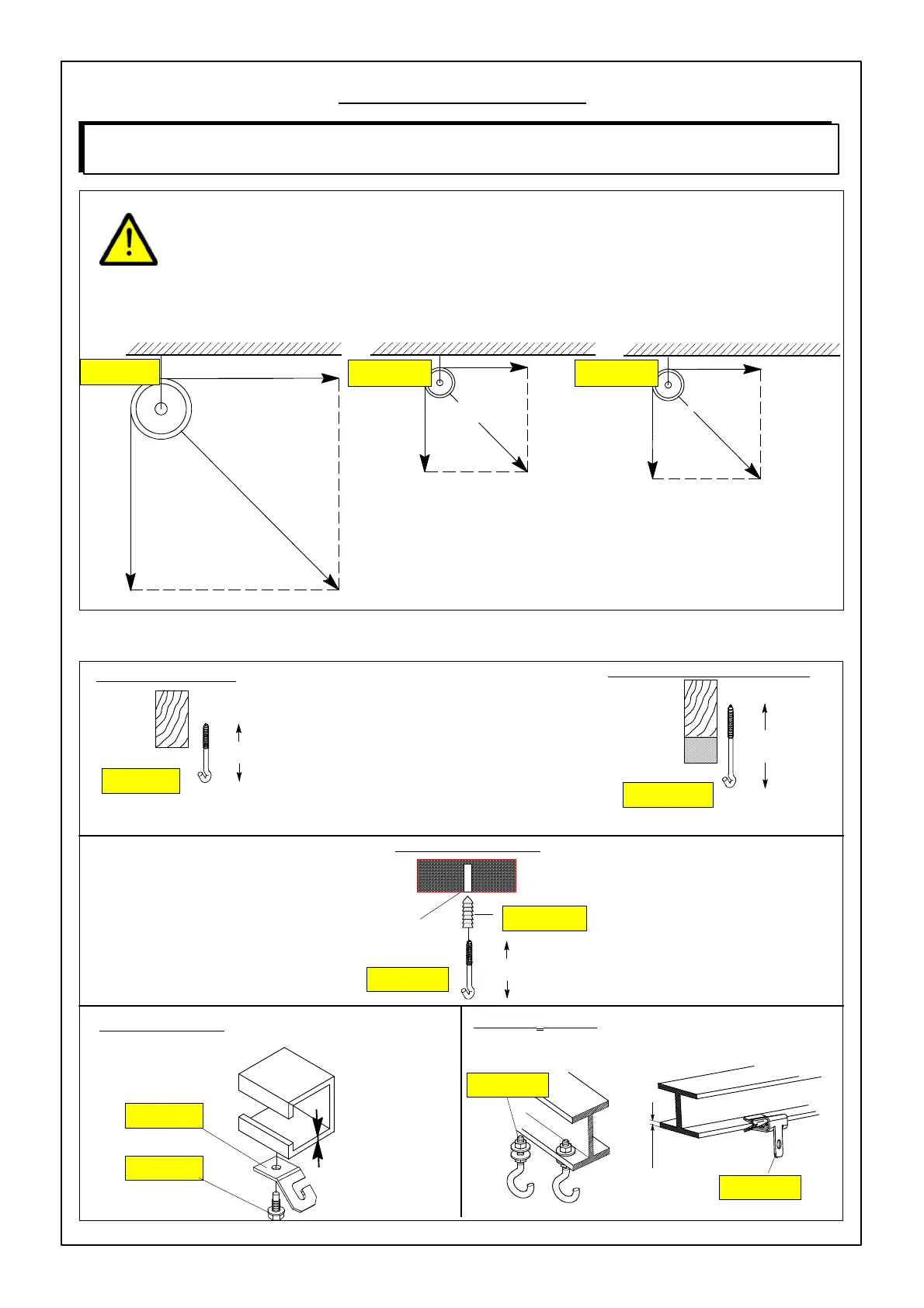

THE SUSPENSION
The suspension of the system is very important: it must be done carefully and accurately!
Closely study the instructions before s tarting the suspension.
TENSILE
FORCE
CABLE
:25KG
TENSILE
FORCE
CABLE : 20KG
TENSILE FORCE CABLE :
117KG.
117KG.
00100412
00107198
20 KG.
25KG.
FIGURE 2.
165KG
WEIGHT HOPPER 100KG (200LBS).
35.3KG
28.3KG
00107198
- IMPORTANT: If there is a layer of insulation, first install the necessary reinforcements!
WEIGHT FEEDER LINE
* You can easily determine the winch location by means of forces:
WEIGHT POWER UNIT
RESULTING FORCE :
- On hopper s uspension
(55LBS).
DANGER
- Onstandardpulley
(44LBS).
- On power unit suspension
RESULTING FORCE :
- Each suspension point (small pulley) should be able to hold a 100 kg burden.
- Each fixing of the heavy duty pulley should be able to hold a burden of 3 X F.
RESULTING FORCE :
DrillasmallholeinHARDWOOD.
This will prevent screw hooks from breaking off.
Use a drilling machine with our special driver for
screw hooks.
FIGURE 3.
90mm
160mm
05000872
05000237
FIGURE 4.
FIGURE 5.
FIGURE 6.
Drill a hole dia. 10mm
00103069
20102034
05000872
FIGURE 7.
05000302
20104220
8-13 mm
00103077
Profile thickness
SUSPENSION COMPONENTS
90mm
In a wooden beam:
Wooden beam +
insulation:
In a concrete beam:
In a metal girder:
In metal I girder:
2,5 - 6 mm
