ROXELL - 009 - 2416
COMEO - INSTALLATION INSTRUCTIONS
III-11

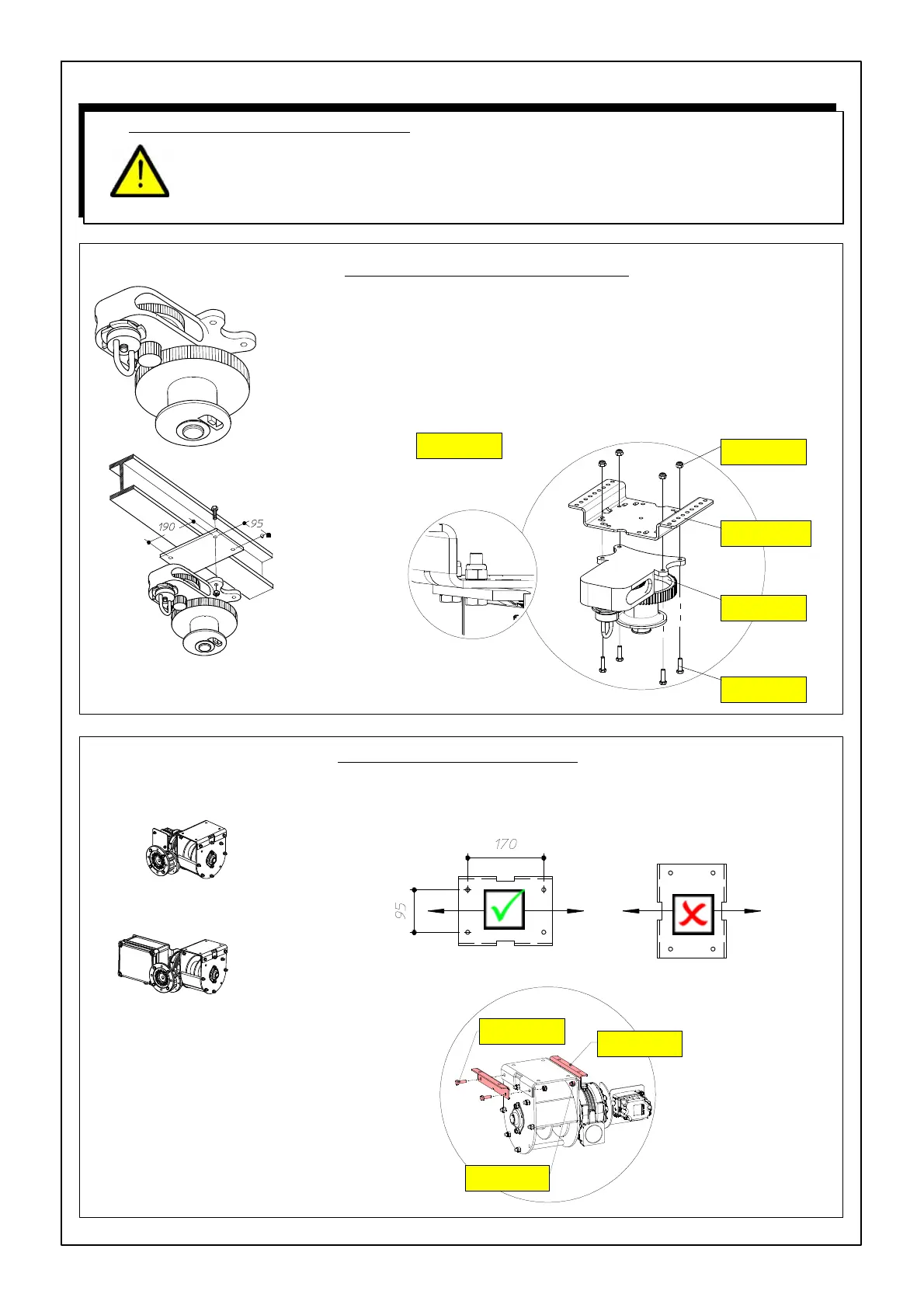

FIGURE 12.
Roxell supplies the hand operated winch without mounting plate and bolts/
nuts.
Fix the winch directly to a SOLID CEILING.
You can install plate & winch in any direction.
= HAND OPERATED CENTRAL WINCH.
MAXIMUM LIFTING POWER : 800KGS.
THE TRACTION OF THE WINCH IS 800 KG. INSTALL THE WINCH AT A SOLID SPOT IN THE
ROOF CONSTRUCTION. REINFORCE WHEN NECESSARY.
CENTRAL WINCH
20100426
02001188
20102190
OPTION
Fix the winch to the plate with bolts and locknuts.
Fix this plate to the ceilings before the insulation. Pay attention to the cor-
rect direction.
FIGURE 13.
= CENTRAL WINCH W/GEARBOX
(MOTOR OPERATED), supplied
with MOUNTING PLATE.
Install the motor after finishing the installation.
Winching up speed :
1m/minute.
WRONG
20100418
10107456
20100236
00102368
DANGER
