Roxell CoMeo - Power Unit

ROXELL - 001 - 1020
COMEO - COMPONENTS
II- 21
3 2
4
1

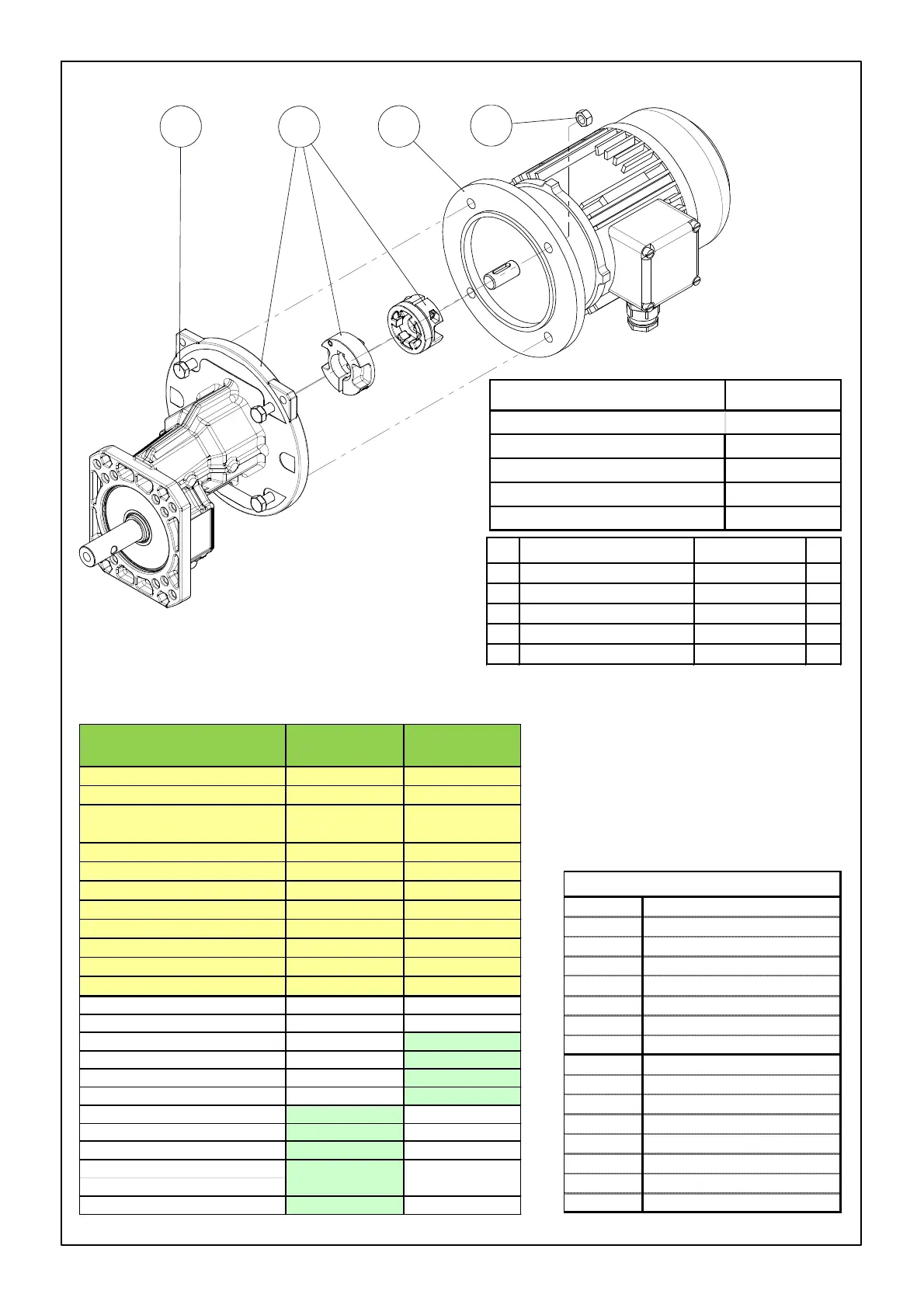

POWER UNIT
Ke y Nam e Par t Nr . Qt.
POWER UNIT
0..(See table)
1
1GEARBOX
1..(See table)
1
2MOTOR
1..(See table)
1
3 BOLT M8X30-DIN 933- 8.8
20100244
4
4 NUT M8 - DIN 934
20200028
4
Nam e Par t Nr .
SERVICE PARTS
On Demand
FA N COV ER On Demand
CONNECTION BOX On Demand
CA PA CITOR 1-PHA SE MOTOR See table
CA BLE RING On Demand
Capacitor 1 phase motor
09802330 RUN CAPACITOR 10 µF
09802338 RUN CAPACITOR 12,5 µF
09802346 RUN CAPACITOR 18 µF
09802354 RUN CAPACITOR 20 µF
09802362 RUN CAPACITOR 25 µF
09802370 RUN CAPACITOR 30 µF
09802378 RUN CAPACITOR 45 µF
09802386 RUN CAPACITOR 50 µF
09802394 START CAPACITOR 12,5 µF
09802402 START CAPACITOR 14 µF
09802410 START CAPACITOR 16 µF
09802418 START CAPACITOR 20 µF
09802426 START CAPACITOR 25 µF
09802442 START CAPACITOR 36-43 µF
09802450 START CAPACITOR 56-63 µF
09802458 START CAPACITOR 108-130 µ
F
System Comeo (50 Hz) Comeo (60 Hz)
Gearbox With Key
10106441
Gearbox With F-Coupling alu
10111821 10112317
Type Elastic Coupling Set
(CS 71-80-90) CS71 13204180 CS71 13204180
Motor Shaft Ø14 Ø14
Ratio
3.867 4.73
Output speed 50Hz
350 NA
Output speed 60Hz
NA 360
Construction size
71 71
Motor speed 50Hz(RPM)
1500 NA
Motor speed 60Hz(RPM)
NA 1800
Feed capacity kg
520 520
Drive 3x230/400V 50Hz IE1 00107092
Motor IE1
10106482 (0,37kW)
Drive 3x200/346V 50Hz 00107100
Motor
10104487 (0,37kW)
Drive 1x230V 50Hz 00107108
Motor
10106656 (0,37kW)
Drive 3x220-230/380-400V 60Hz 00108784
Motor
10106482 (0,37kW)
Drive 3x200/346V 60Hz 00108808
Motor
10104487 (0,37kW)
Drive 1x220V 60Hz 00108800
Motor
10106656 (0,37kW)
