Roxell CoMeo - Drawings of Suspension System with Central Winch

ROXELL - 009 - 4018
COMEO - INSTALLATION INSTRUCTIONS
III- 9
31 - 85,9 M (MAX. 300 KG)
00100412
00102368
00100388
00100602
00104349
00100545
05000872
00100750
00100610
H
H
H
85,9 - 165,3 M (MAX. 523 KG)

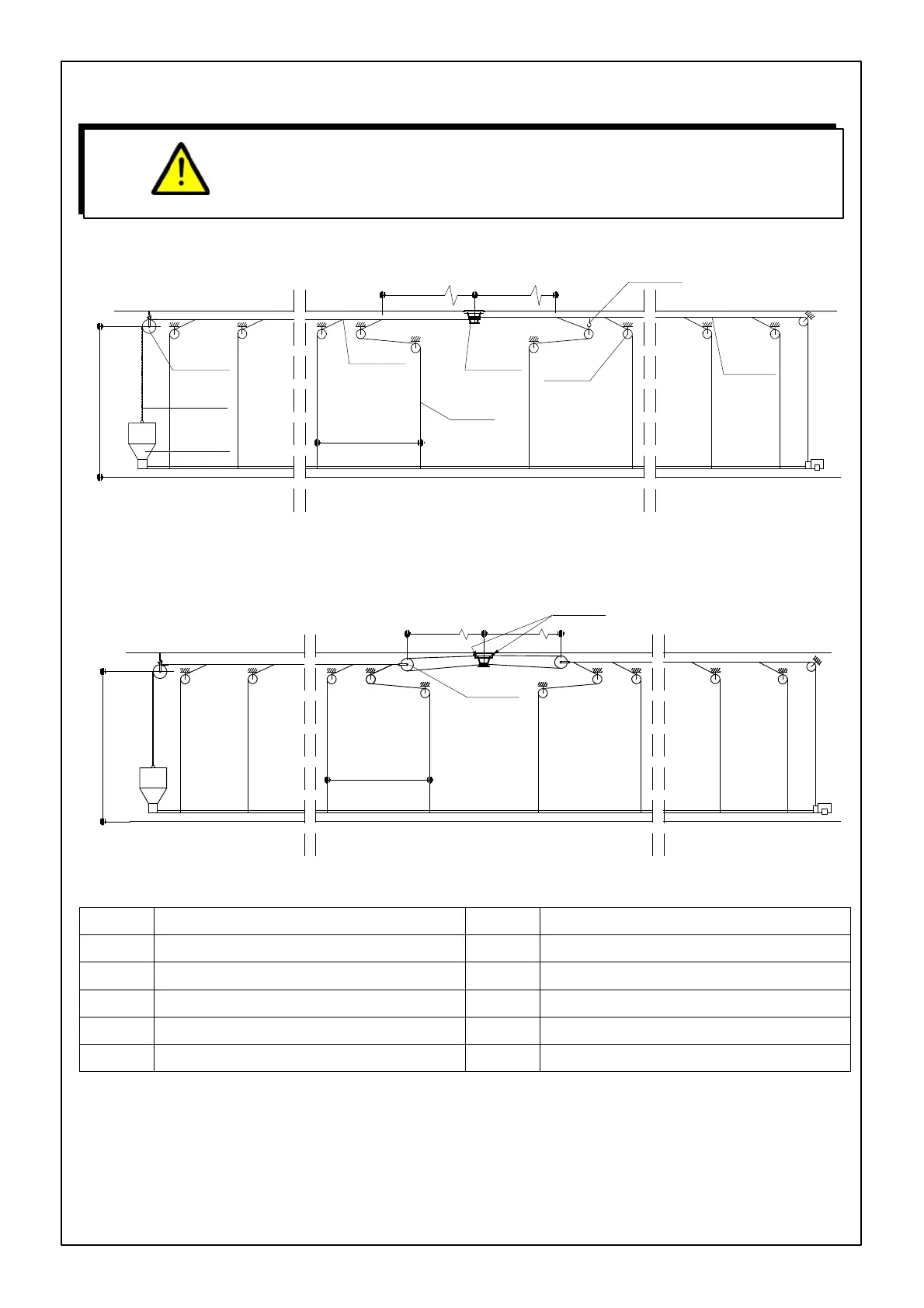

FIGURE 8.
00100420
L=3M
H
H
H
FIGURE 9.
00102699
FOR YOUR SAFETY: NEVER MAKE THE INSTALLATIONS LONGER THAN
THE RECOMMENDED LENGTH.
DRAWINGS OF SUSPENSION SYSTEM WITH CENTRAL WINCH
DANGER
L=3M
00100412
HEAVY DUTY PULLEY 00100750 CHAIN DIAM. 3.5 MM
00104349 SMALL PULLEY WITH STAINLESS STEEL HOOK 00100610 SUSPENSION CORD
00102368 HAND OPERATED CENTRAL WINCH 00100420 SINGLE EYE PULLEY
00100388 CABLE ø 5 MM - 3/16" - (7x7) 05000872 SCREW HOOK 90MM
00100545 CABLE CLAMP NO. 5 00100602 100 KG HOPPER
00102699 CABLE CONNECTION ASSEMBLY
