40 System Operation BTR-800, TR-800, TR-825
BTR-800 Menu Structure

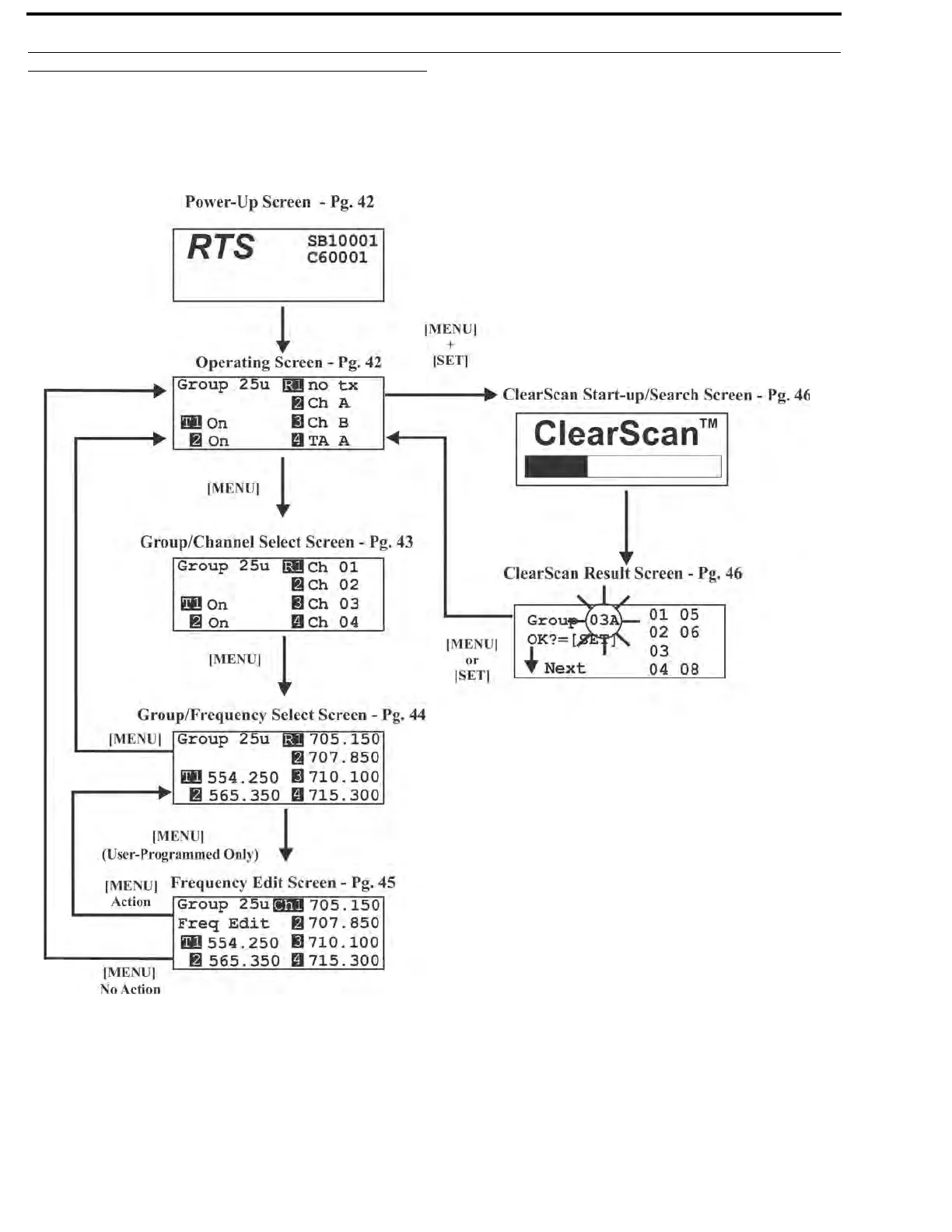

Main Screen Flowchart
The following contains the base station menu structure and
references the pages in which further detail of that menu may be
found.
Other Special Key Sequences
Lockout ............................................................... page 47
Copy.................................................................... page 47
1st Use Default ................................................... page 47
Factory Default .................................................. page 47
NOTE: Pressing [MENU] within a screen after action has
occurred escapes from that action and places the
user at the current screen. Any editing that had
been done since [SET] had been pressed is
aborted.
FIGURE 36.
Power-Up Screen
