44 System Operation BTR-800, TR-800, TR-825

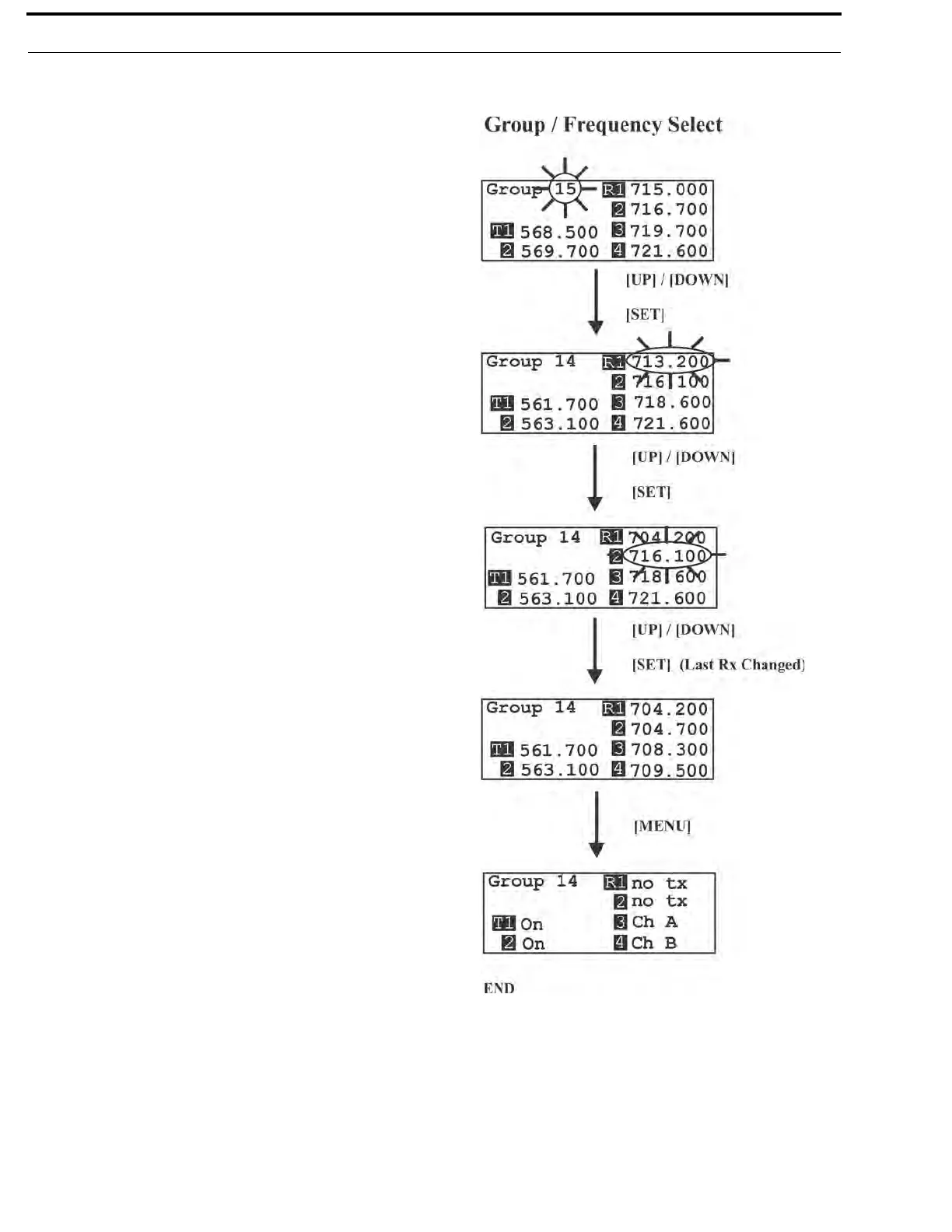

Group/Frequency Select
The Group/Frequency select screen allows a user to set the
group and select from a pre-determined number of frequencies
on each receiver. Each frequency displayed on the right half of
the screen corresponds to a channel number in the Group/
Channel Screen.
• Press [MENU] twice to go to the Group/Frequency Select
screen from the operating screen. Press [SET] to start the
group number flashing.
• Press the [UP]/[DOWN] arrows to change the group
number. The frequencies listed will reflect what is currently
in that group. Pressing [SET] will select the group and start
the selecting of predetermined frequencies within that
group. The R1 frequency will start flashing. NOTE: The
group number sets the transmit frequencies of factory
defined groups and these are not editable. In user-
programmed groups these are editable from the frequency
edit screen.
• Pressing the [UP]/[DOWN] arrows will change the
frequency of R1 to the pre-defined frequencies available.
Pressing [SET] will accept the change and move you to the
next channel to edit. If you had not press the arrow keys
when the frequency was flashing, but instead [press [SET],
you would have skipped to the next frequency to edit.
• After the last receive frequency is decided upon, pressing
[SET] will save that last frequency and start you over at the
beginning of the group/frequency select screen with nothing
flashing.
• Pressing [MENU] will take you to the operating screen if
this is a factory-defined group. If within a user programmed
group, you will be taken to the frequency edit screen.
NOTE: Pressing [MENU] after activity has occurred within
the screen will return to the group/frequency edit screen
with nothing flashing. Any change that had been done
before the last [SET] was pressed will be aborted.
