RDC6332G Control System User Manual
22
/
47
© 2015 Ruida Technology. All Rights Reserved
6.2 Valid Rising Edge for Pulse Signal
The driver of the step-servo motor produced by Leadshine Technology Co., Ltd.
is on the valid rising edge. Some of its products can support the mode of valid
rising/falling edge. When these products are delivered out of the factory, they are all
set at the valid rising edge; if the user changes the ex-factory setting into the valid
pulse falling edge, Section 6.3 can be referred to for the wiring method. For the

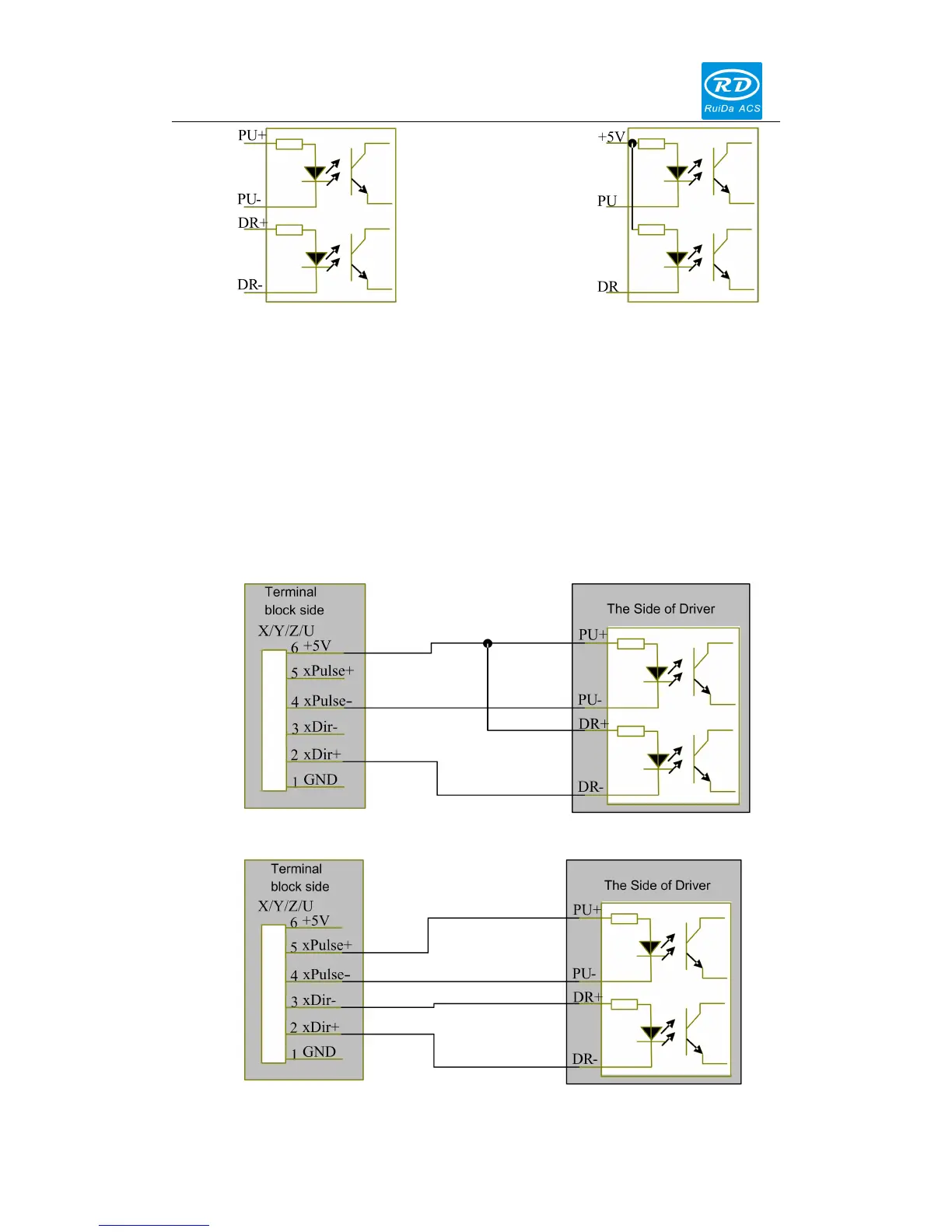

typical models such as 3ND556 and MD556, Figure 6.2-1 and 6.2-2 show the wiring
scheme of RD controller and Leadshine driver.
Figure: 6.1-1 Four Inputs, Independent
Input Signal of Driver
Figure: 6.1-2 Three Inputs, Common-anode
Input Signal of Driver
Figure: 6.2-1 Four Inputs, Valid Rising Edge and Common Anode Connection
