Chapter 7 Examples of IO-port Wiring
7.1 Input Port
The input connection at X/Y minus spacing is exampled.

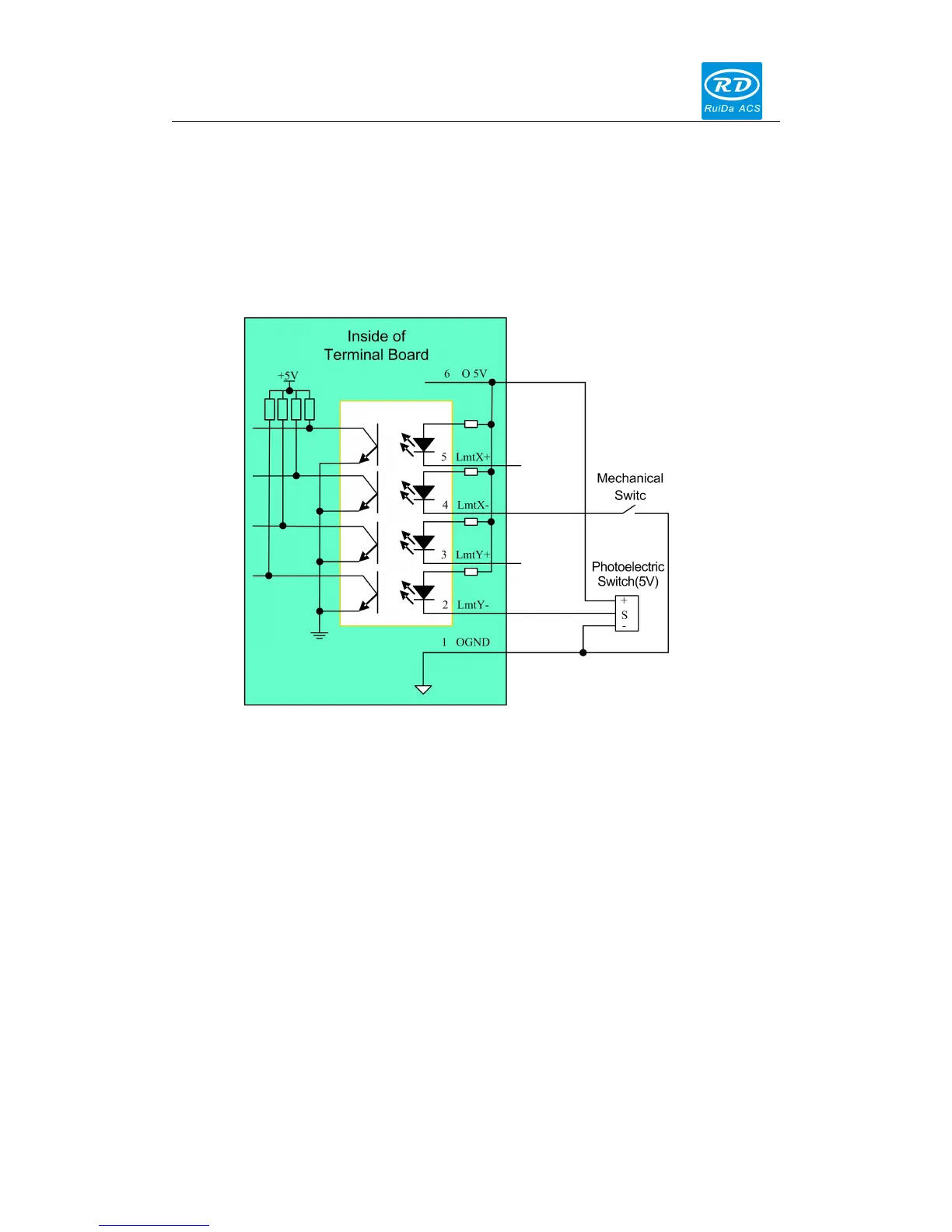

Figure: 7.1-1 Example of Input-port Connection
