RDC6332G Control System User Manual
30
/
47
© 2015 Ruida Technology. All Rights Reserved
8.2.2 The main interface

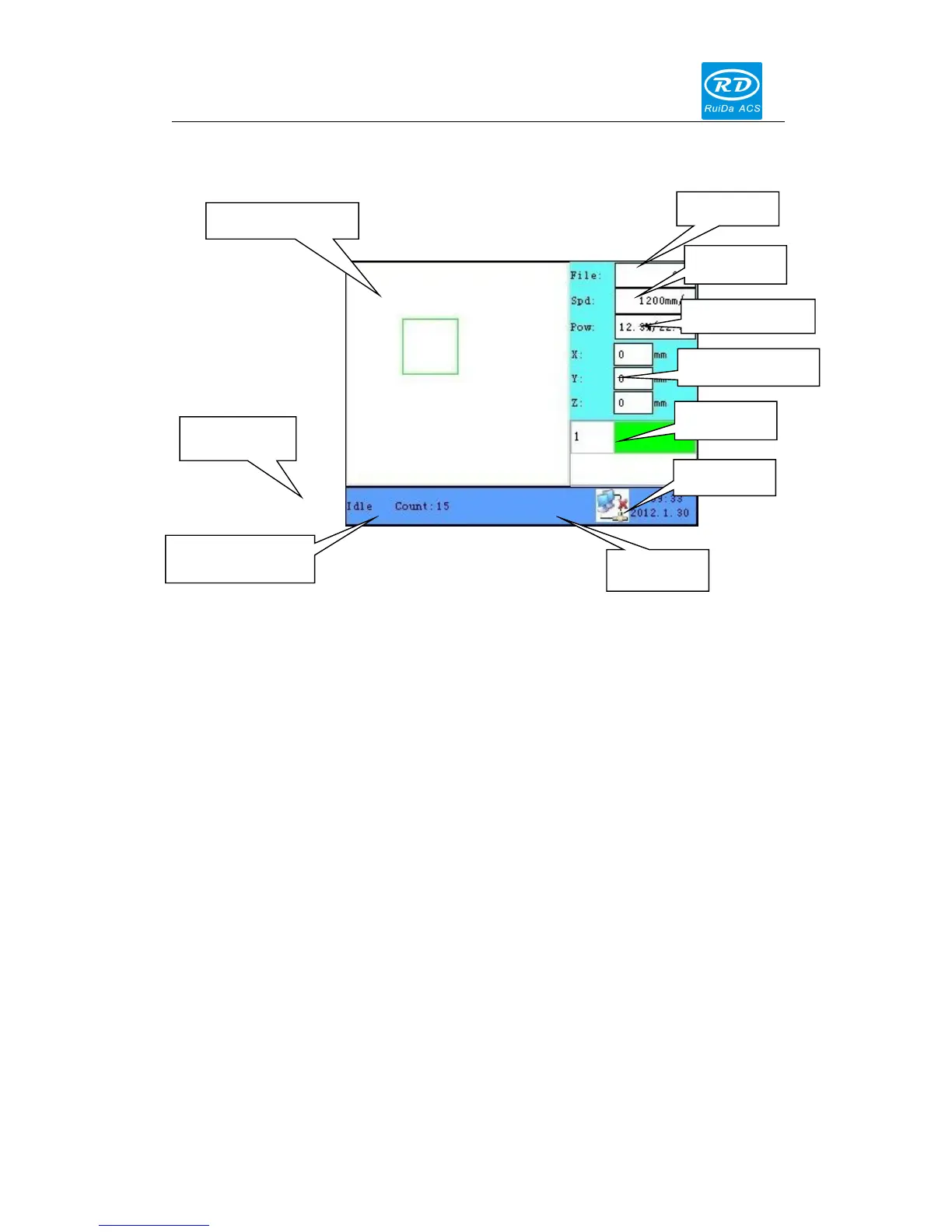

When the system finished resetting, the screen will show as below:
Graph Preview Area: To display the whole file’s track, and display the running track.
System status: To display the current status of the machine, such as Idle, Run, Pause, Finish, etc.
Work No.: To accumulate the work number of the current file.
Net status: To display the connecting status of the Ethernet.
Data: To display the system time.
Layer Info.: To display the layers’ information of the current file, such as max or min power,
speed etc. When system is idle, dblclick the layer, then users can change the layers parameters and
the changing would be saved.
XYZ’s coordinate: To display the coordinate of XYZ axes, and the size accurate to 0.1mm.
Laser max power: When system is idle, to display the “Laser” key’s power, when system is
running, to display the max laser power of the running layer.
Work speed: When system is idle, to display the “Up/Down” or “Left/Right” key’s speed, when
system is running, to display the running speed of the current layer.
File No.: To display the current selected file’s number.
8.2.3 Speed settings
Press “Speed key when the screen is on the main interface, it will show as below:
Figure: 8.2-2
File No.
Graph Preview Area
Work speed
Laser max power
X,Y,Z’s coordinate
Layer Info.
Date, time
System status
No.of processed
Net status
