RDC6563F Standalone Fiber Cutting Control System User Manual V2.0 30
SHENZHEN RUIDA TECHNOLOGY CO., LTD

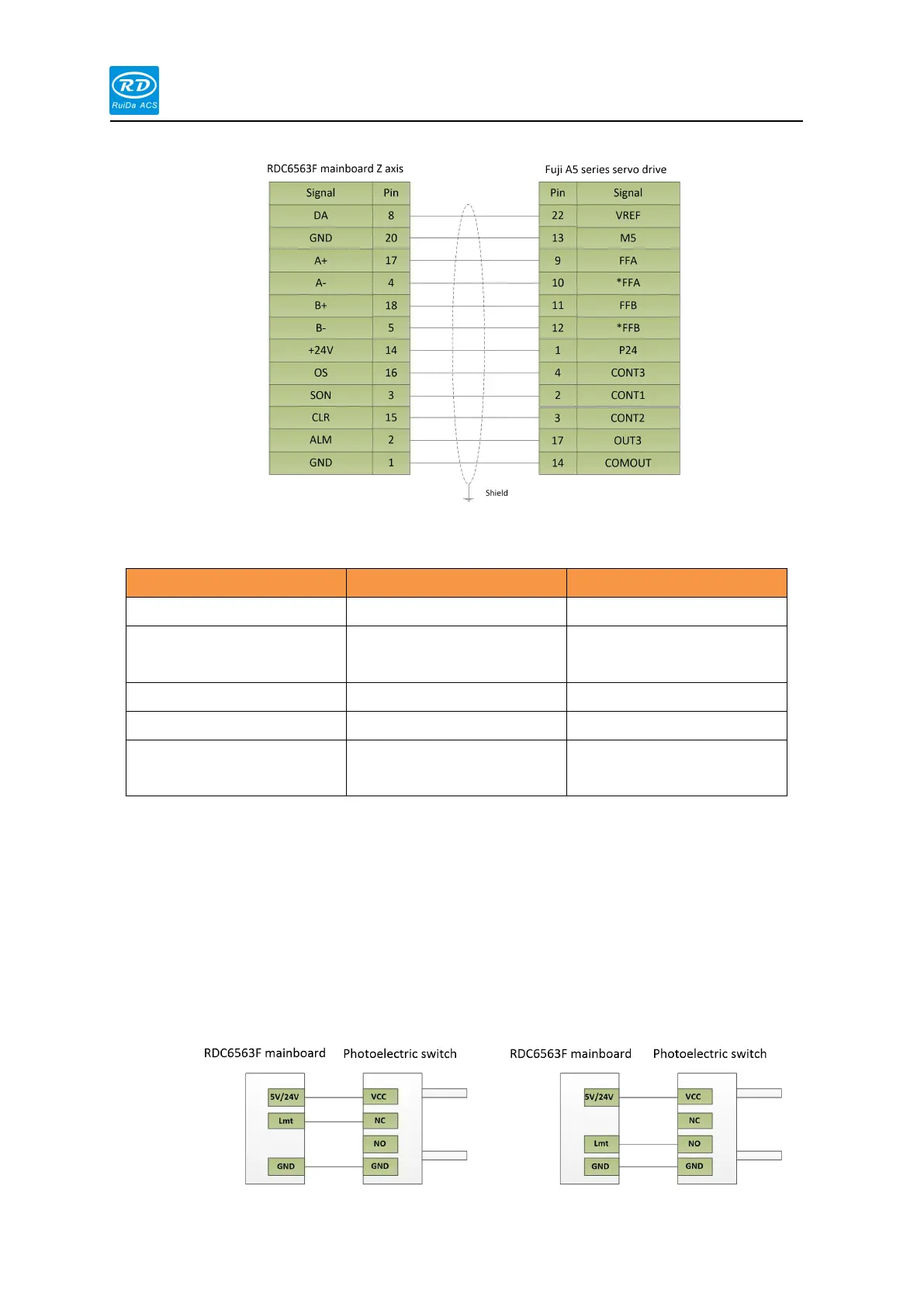

Fuji A5 series servo drive wiring instructions
Fuji A5 series servo drive parameter setting instructions
The encoder pulse number
is 10000
Speed gain is set to
500r/min/V
2.11 Limit switch interface
The limit switches supports both normally open and normally closed. The limit switch can
use mechanical contact switch, photoelectric switch, and proximity switch and support 5V or 24V
output voltage.
The two typical connections for photoelectric switches are shown below:
