RuiDa RDC6563F - AB Switch Interface

RDC6563F Standalone Fiber Cutting Control System User Manual V2.0 32
SHENZHEN RUIDA TECHNOLOGY CO., LTD
PIN5
—
NC
PIN6
+24V
+24V power（output）
controller +5V power
output, current output
capability is more than
500mA
PIN7
ANALOG
0 ～ 10V Analog voltage
output
fiber laser power
conditioning
PIN8
PIN9
ALM
Laser machine alarm input
High voltage valid
PIN10
SHUTTER
Laser machine shutter
signal (output)
High voltage valid
PIN11
GND
GND
PIN12
—
NC
PIN13
—
NC
PIN14
—
NC
PIN15
PWM_24V
Laser machine PWM signal
(24V)
Laser machine 24V
modulation signal

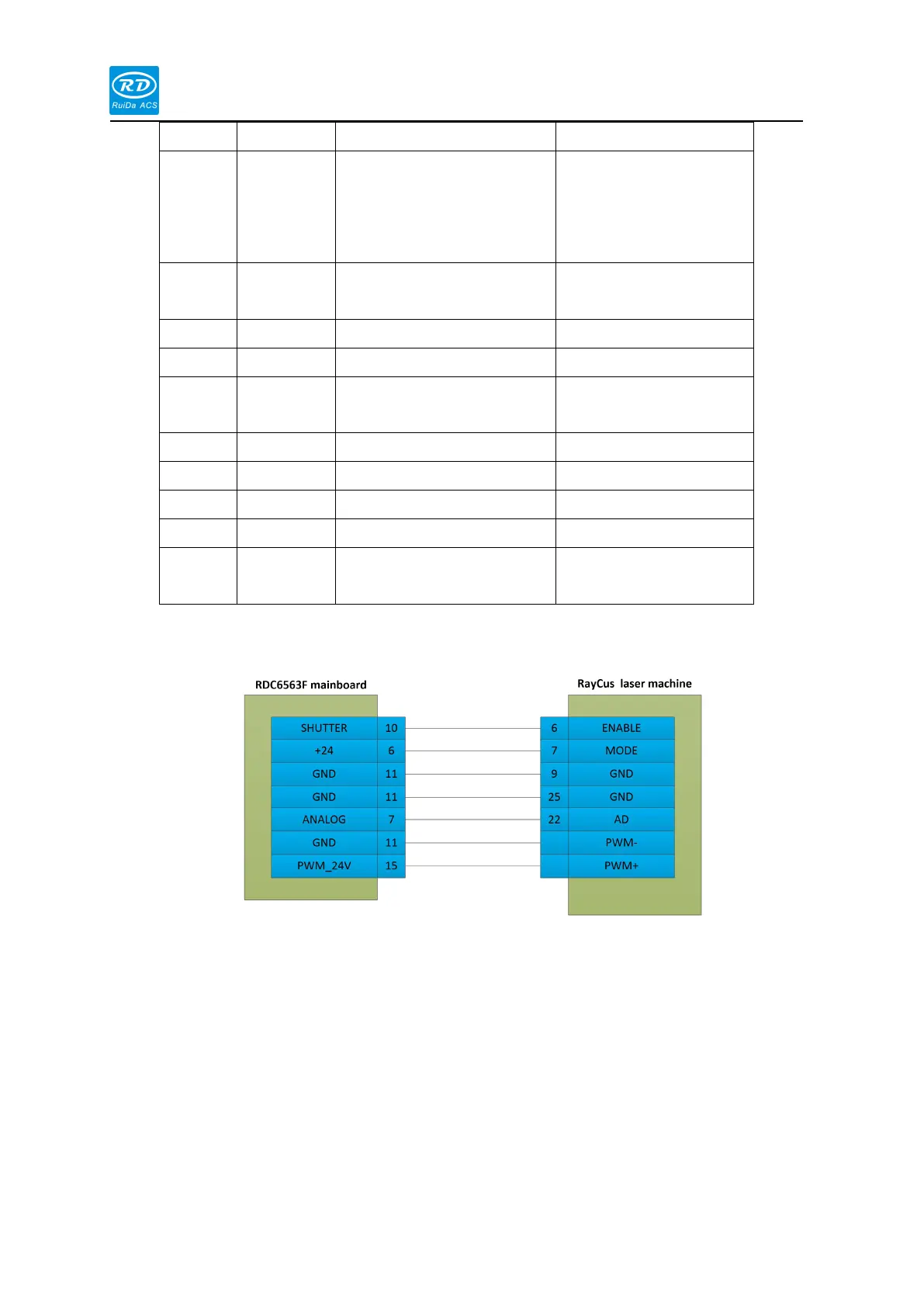

Raycus laser machine wiring as shown bellowing:：
MAX laser machine wiring as shown bellowing
：
