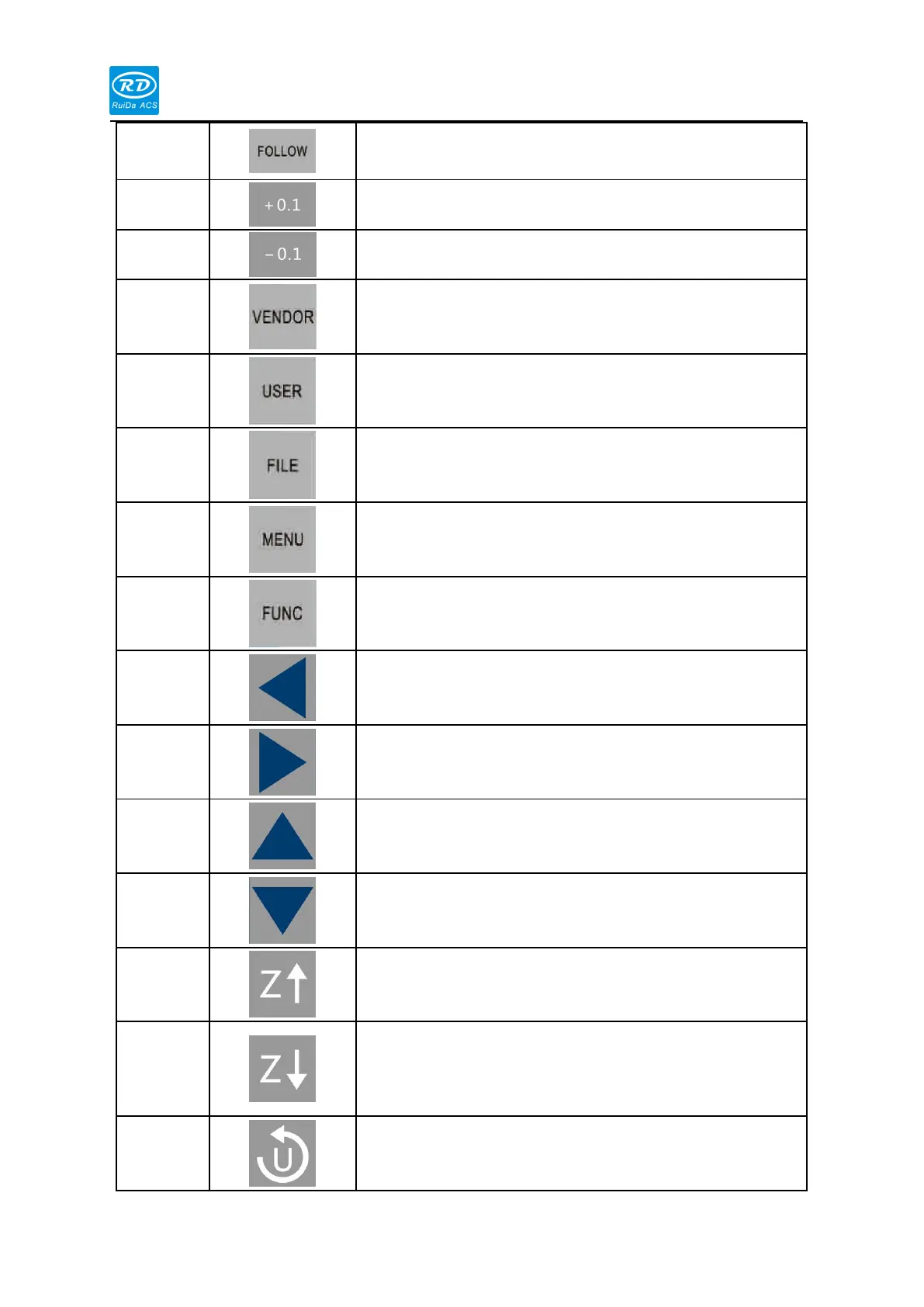

RDC6563F Standalone Fiber Cutting Control System User Manual V2.0 41
SHENZHEN RUIDA TECHNOLOGY CO., LTD
10
Control the Z axis up and down
11
Z axis nozzle height rise up 0.1mm。
12
Z axis nozzle height down 0.1mm。
13
Vendor parameters setting
14
User parameters setting
15
Memory file and U disk file management
16
Speed setting, power setting, controller configuration and
other parameters.
17
Operation of functional movements such as servo
calibration, capacitance calibration, and axis reset.
18
Use for move the X-axis or move the left button in the menu.
19
Use to move the X axis or move the option right in the menu.
20
Used for move the Y-axis or move the option up key in the
menu.
21
Used for move the Y-axis or move the option down key in the
menu.
22
Manually control the Z axis to rise.
23
Manually control the Z axis down
24
Manually move the U axis.
